Programming with ST-LINK V2 programmer

In order to adjust the ST-LINK™ V2 programmer
to be connected to the development system, it
is necessary to provide the appropriate adapter
such as the mikroProg to ST-LINK V2
2x5 male headers should be first soldered on the
CN5 connector pads. Then you should plug adapter into
the ST-LINK V2 programmer (2x10 male header), and plug
IDC10 flat cable in male headers, Figure 3-13
The microcontroller can be also programmed with
mikroProg Suite™ for ARM®
with mikromedia board via
adapter.
Page 20
ST-LINK V2 programmer
software, Figure 3-11 . This programmer connects
mikroProg to ST-LINK V2 adapter.
mikroProg™ to
ST-LINK™ V2 adaper
and

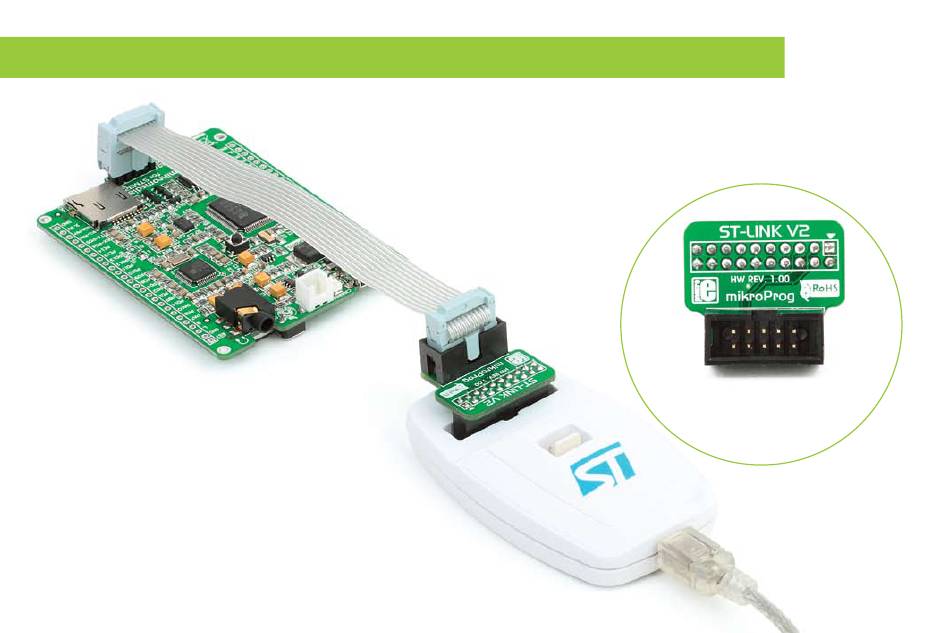

Figure 3-12:
Figure 3-13:
Connecting ST-LINK™ V2
programmer
