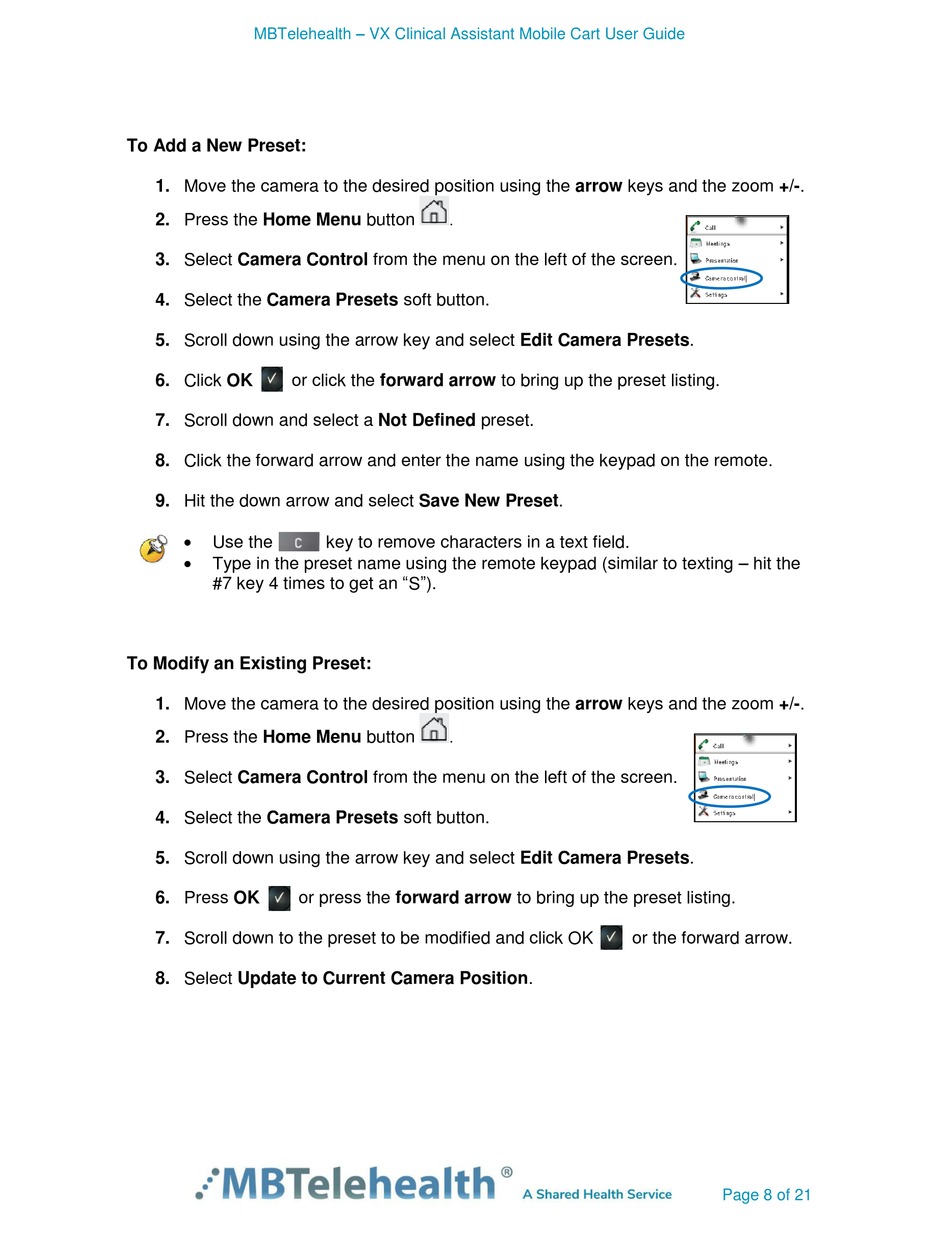

MBTelehealth – VX Clinical Assistant Mobile Cart User Guide
To Add a New Preset:
1. Move the camera to the desired position using the arrow keys and the zoom +/-.
2. Press the Home Menu button
3. Select Camera Control from the menu on the left of the screen.
4. Select the Camera Presets soft button.
5. Scroll down using the arrow key and select Edit Camera Presets.
6. Click OK
or click the forward arrow to bring up the preset listing.
7. Scroll down and select a Not Defined preset.
8. Click the forward arrow and enter the name using the keypad on the remote.
9. Hit the down arrow and select Save New Preset.
Use the
Type in the preset name using the remote keypad (similar to texting – hit the
#7 key 4 times to get an "S").
To Modify an Existing Preset:
1. Move the camera to the desired position using the arrow keys and the zoom +/-.
2. Press the Home Menu button
3. Select Camera Control from the menu on the left of the screen.
4. Select the Camera Presets soft button.
5. Scroll down using the arrow key and select Edit Camera Presets.
6. Press OK
or press the forward arrow to bring up the preset listing.
7. Scroll down to the preset to be modified and click OK
8. Select Update to Current Camera Position.
.
key to remove characters in a text field.
.
or the forward arrow.
Page 8 of 21
