Metra Electronics 99-6544B Installation Instructions

Advertisement

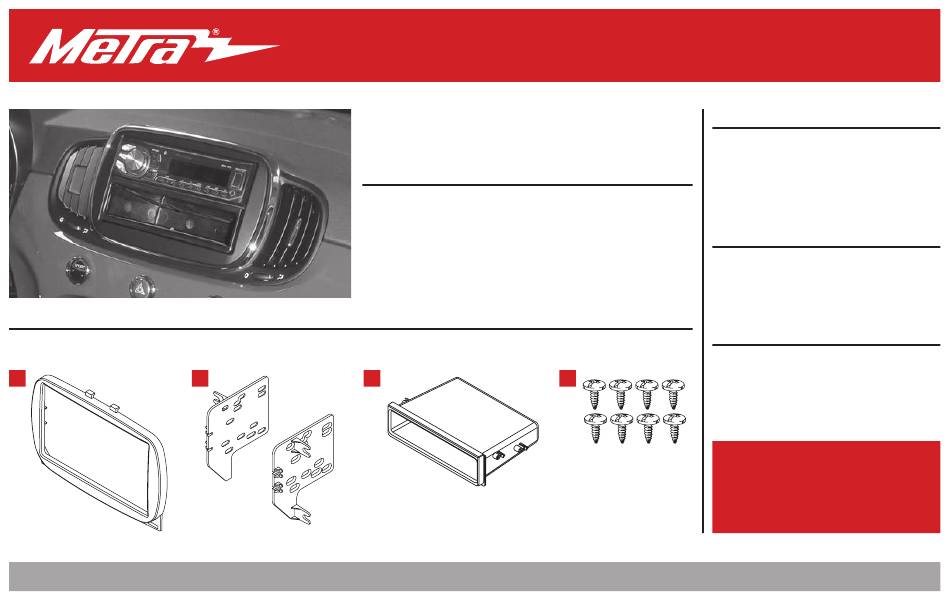

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (8) #8 x 3/8" Phillips screws
A
Metra. The World's Best Kits.
®
Fiat 500 2016-up*
*Visit MetraOnline.com for up-to-date vehicle specific applications.
KIT FEATURES
• ISO DIN radio provision with pocket
• Painted scratch resistant matte black
B
C
MetraOnline.com
D
© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
99-6544B
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly . .................................................2
Kit Preparation . ......................................................3
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: Please visit metraonline.com for
additional adapters and accessories.
Antenna Adapter: 40-EU55

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver
• T-25 Torx driver • Cutting tool
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 10/5/17 INST99-6544B
