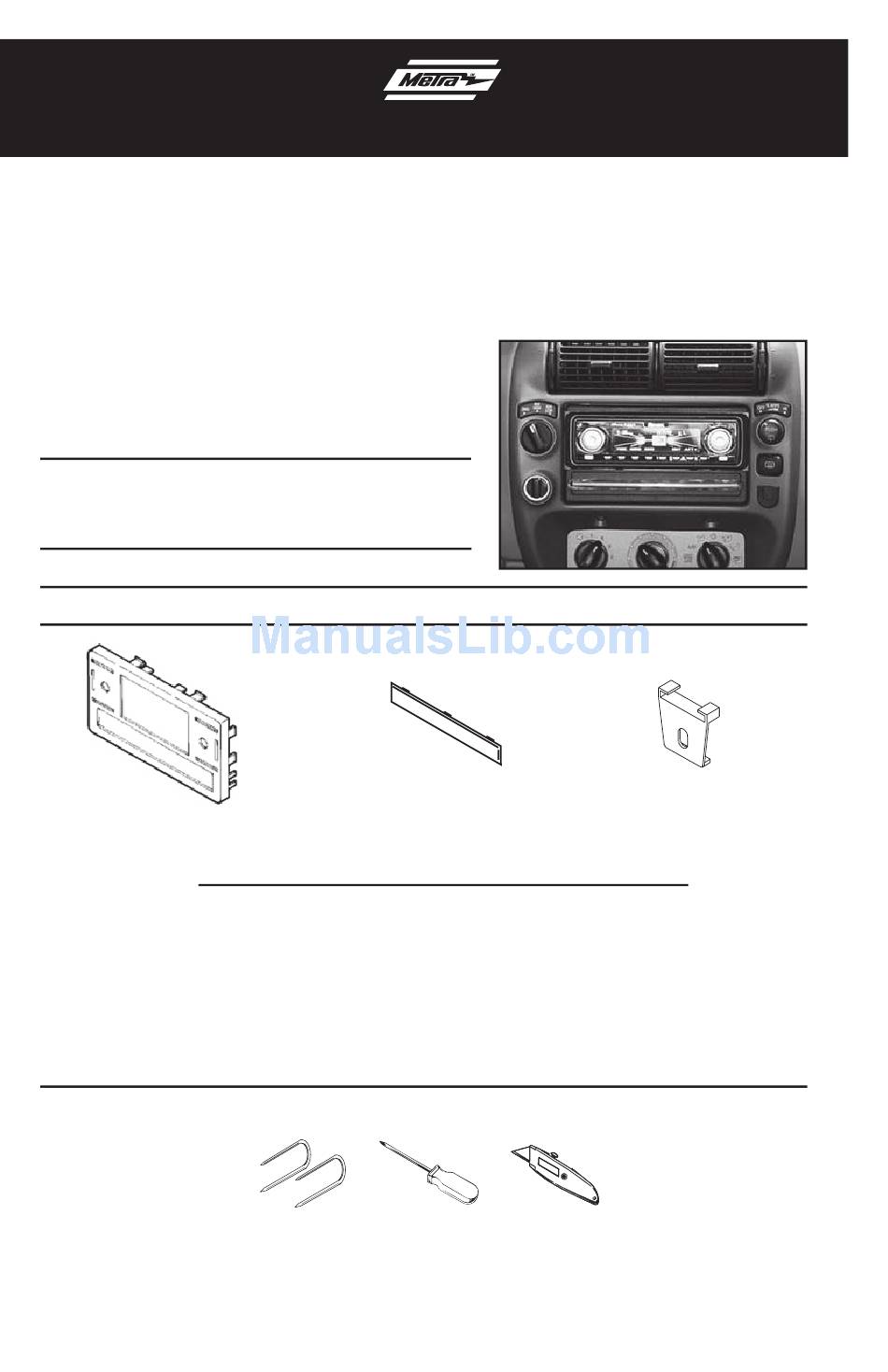

INSTALLATION INSTRUCTIONS FOR PART 99-5600
Ford/Lincoln/Mazda/Mercury 1995-2011
KIT FEATURES
• Shaft and DIN unit provision
• Equalizer provision
• Rear support provision

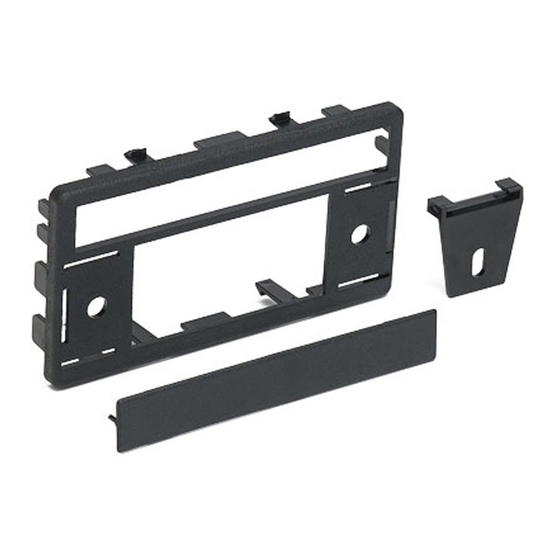

KIT COMPONENTS
• A) Radio housing • B) Equalizer dummy plate • C) Rear support bracket
A
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• Visit www.metraonline.com for specific interface harness
Antenna Adapter:
• 40-CR10 - Chrysler antenna adapter 2002-up
• 86-5618 or AW-FDRT head unit removal keys • Phillips screwdriver • Cutting tool
APPLICATIONS
99-5600
B
TOOLS REQUIRED
C

Advertisement

loading
Need help?

Need help?

Do you have a question about the 99-5600 and is the answer not in the manual?

Questions and answers

Related Manuals for Metra Electronics 99-5600

Summary of Contents for Metra Electronics 99-5600

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-5600 APPLICATIONS Ford/Lincoln/Mazda/Mercury 1995-2011 99-5600 KIT FEATURES • Shaft and DIN unit provision • Equalizer provision • Rear support provision KIT COMPONENTS • A) Radio housing • B) Equalizer dummy plate • C) Rear support bracket WIRING &...
  • Page 2 Dash Disassembly 99-5600 Ford Econoline 1995-2008/Explorer 1995-2001/Ranger 1995-2011 Mazda B-Series Pickup 1995-2009 Mercury Mountaineer 1997-2001 1. Using Metra’s 86-5618 or AW-FDRT, pull the factory head unit from the dash and disconnect the wiring. (Figure A) 2. Position the radio housing with the radio opening at the TOP for the remainder of the installation.
  • Page 3 Dash Disassembly 99-5600 Ford Crown Victoria 1995-2011 Lincoln Continental 1995-1997/Mark VIII 1996-1998/Town Car 1995-2002 Mercury Grand Marquis 1995-2010/ Marauder 2003-2004 1. Using Metra’s 86-5618 or AW-FDRT, pull the factory head unit from the dash and disconnect the wiring. (Figure A) 2.

  • Page 4: Din Head Unit Provision

    Kit Assembly 99-5600 DIN head unit provision 1. Cut and remove the shaft supports from the radio housing. (Figure A) 2. Slide the DIN cage into the housing and secure by bending the metal locking tabs down. 3. Slide the aftermarket head unit into the cage until secure.
  • Page 5 Kit Assembly 99-5600 2-Shaft head unit provision 1. Slide the aftermarket head unit into the kit and secure with shaft nuts. (Figure A) 2. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS.

  • Page 6: Herramientas Requeridas

    INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-5600 APLICACIONES Ford/Lincoln/Mazda/Mercury 1995-2011 99-5600 CARACTERÍSTICAS DEL KIT • Eje y provisión de unidad central DIN • Ecualizador prestación • Provisión de soporte de montaje trasero COMPONENTES DEL KIT • A) Carcasa del radio • B) Placa simuladora de ecualizador • C) Soporte de apoyo trasero...
  • Page 7 Desmontaje del tablero 99-5600 Ford Econoline 1995-2008/Explorer 1995-2001/Ranger 1995-2011 Mazda B-Series Pickup 1995-2009 Mercury Mountaineer 1997-2001 1. Usando las llaves 86-5618 o AW-FDRT de Metra, jale la unidad central de fábrica del tablero y desconecte el cableado. (Figura A) 2. Posicione la carcasa del radio con la apertura del radio en la PARTE SUPERIOR del resto de la instalación.
  • Page 8 Desmontaje del tablero 99-5600 Ford Crown Victoria 1995-2011 Lincoln Continental 1995-1997/Mark VIII 1996-1998/Town Car 1995-2002 Mercury Grand Marquis 1995-2010/ Marauder 2003-2004 1. Usando las llaves 86-5618 o AW-FDRT de Metra, jale la unidad central de fábrica del tablero y desconecte el cableado.
  • Page 9 Ensamble del kit 99-5600 Unidades centrales DIN 1. Corte y retire los soportes del eje de la carcasa del radio. (Figura A) 2. Deslice la reja DIN en la carcasa y sujétela doblando hacia abajo las pestañas de metal. 3. Deslice la unidad central de mercado secundario en la reja hasta que quede firme.
  • Page 10 Ensamble del kit 99-5600 Unidades centrales de 2 ejes 1. Deslice la unidad central de mercado secundario en el kit y sujétela con las tuercas de eje. (Figura A) 2. Ubique el arnés de cableado de fábrica en el tablero. Metra recomienda el uso de un adaptador adecuado de acoplamiento de Metra o de AXXESS.
