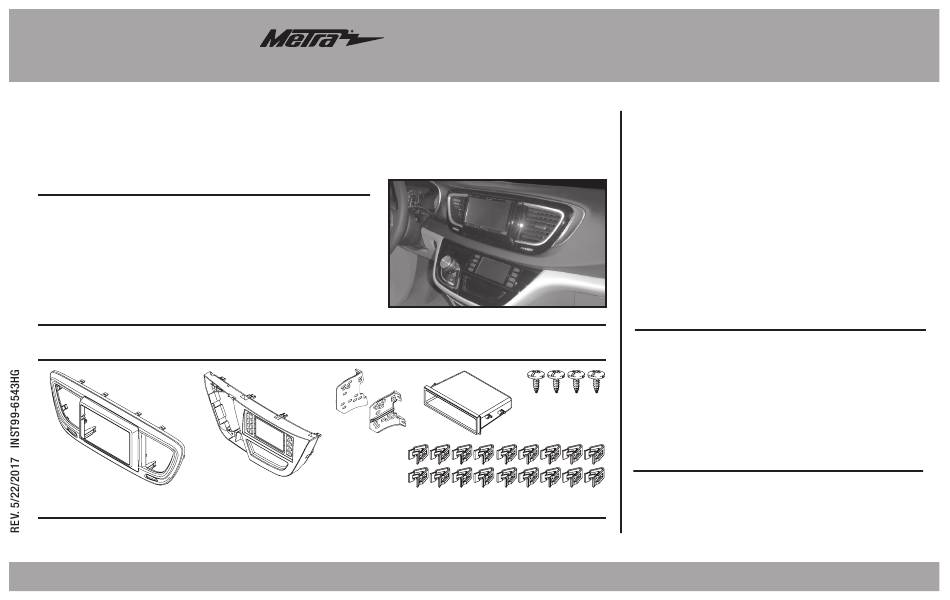

INSTALLATION INSTRUCTIONS FOR PART 99-6543HG
Chrysler Pacifica 2017-up
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Touchscreen display for climate and personalization features
• Painted high gloss black
Note: Does not support surround camera (360) switching.

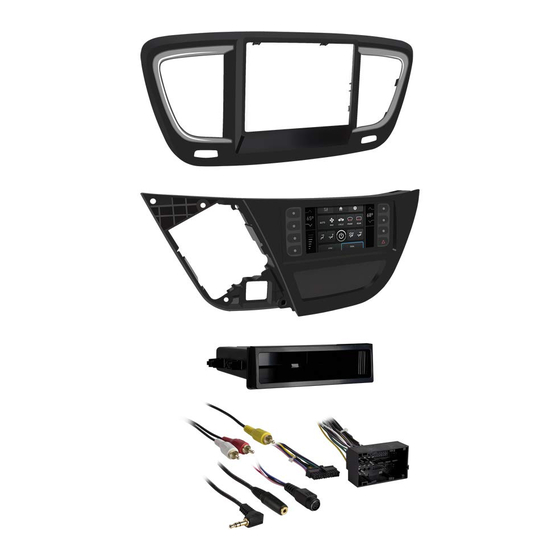

KIT COMPONENTS
• A) Radio trim panel • B) Climate control panel with touchscreen display • C) Radio brackets • D) Pocket
• E) (4) #8 x 3/8" Phillips screws • F) (18) panel clips
A
B
WIRING & ANTENNA CONNECTIONS
Wiring Harness: • Axxess interface and harness included Antenna Adapter: • 40-EU55 (sold separately)
METRA – The World's best kits.
99-6543HG
C
D
F
metraonline.com
®
Table of Contents
Dash Disassembly ................................................. 2
Kit Preparation ....................................................... 3
Kit Assembly
– ISO DIN radio provision with pocket ...................... 4
– ISO DDIN radio provision ...................................... 4
Axxess Interface Installation ...........................5-14
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Cutting tool
E
CAUTION!
All accessories, switches, climate controls panels,
and especially air bag indicator lights must be connected before
cycling the ignition. Also, do not remove the factory radio with
the key in the on position, or while the vehicle is running.
© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
Advertisement
Related Manuals for Metra Electronics 99-6543HG
Summary of Contents for Metra Electronics 99-6543HG
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-6543HG Table of Contents Chrysler Pacifica 2017-up 99-6543HG Dash Disassembly ..........2 Kit Preparation ............3 KIT FEATURES Kit Assembly • ISO DIN radio provision with pocket – ISO DIN radio provision with pocket ...... 4 •...
- Page 2 99-6543HG Dash Disassembly 1. Unclip and remove the trim panel 3. Unclip and remove the climate surrounding the radio/screen control panel, and then unplug and including the A/C vents, and then remove. (Figure C) unplug and remove. (Figure A) 2. Remove the (4) Phillips screws...
- Page 3 (Figure A) remove. (Figure D) Remove shaded area From the factory climate To the 99-6543HG radio trim panel: control panel: 1. Secure the A/C vents to the panel 1. Remove the (4) Phillips screws using the factory hardware.
- Page 4 99-6543HG Kit Assembly ISO DIN radio provision with pocket ISO DDIN radio provision 1. Attach the pocket to the radio 1. Attach the brackets to the radio brackets using the (4) #8 x 3/8” using the screws supplied with Phillips screws provided. (Figure A) the radio.
-
Page 5: Table Of Contents
99-6543HG Axxess Interface Installation INTERFACE FEATURES TABLE OF CONTENTS • Provides accessory power (12-volt 10-amp) Connections to be made ................6-8 • Retains R.A.P. (retained accessory power) Installing the interface ................9 • Provides NAV outputs (parking brake, reverse, speed sense) Initializing the interface ................ -
Page 6: Connections To Be Made
99-6543HG Connections to be made Attention! This interface will work with models that are either non-amplified, or From the 6543 harness to the aftermarket radio: amplified. Please follow the instructions carefully for your model vehicle. Failure to • Connect the Black wire to the ground wire. - Page 7 99-6543HG Connections to be made Attention! This interface will work with models that are either non-amplified, or amplified. The following (3) wires are only for multimedia/navigation radios that require these wires. Please follow the instructions carefully for your model vehicle. Failure to do so will result in •...
- Page 8 99-6543HG Connections to be made 3.5mm jack - steering wheel control retention: • Universal “2 or 3 wire” radio: Connect the steering wheel control wire, referred to as Key-A or SWC-1, to the Brown wire of the connector. Then The 3.5mm jack is to be used to retain audio controls on the steering wheel control.
-
Page 9: Installing The Interface
99-6543HG Installing the interface Initializing the interface Attention! If the interface loses power for any reason, the following steps It is highly advisable to read the following steps beforehand, to ensure a clear understanding of what is to be expected. The following steps must be done in the order that they are numbered. -
Page 10: Touchscreen Display Operation
99-6543HG Touchscreen display operation Climate Control screen Heated/Cooled seats screen • This is the climate control screen which will be displayed on the touchscreen display. • This is the Heated/Cooled Seats, Heated Steering, and Mirror Dimming screen which This is considered the Main Menu. - Page 11 99-6543HG Touchscreen display operation (cont.) ECO/ESC/PARK-SENSE/SPORT/STOP-START screen • ECO – Fuel Economy Mode • ESC – Electronic Stability Control • PARK-SENSE – ParkSense Rear Park Assist System • SPORT – Sport Mode • STOP-START – Stop/Start System Continued on the next page •...
- Page 12 99-6543HG Touchscreen display operation (cont.) Configuration Settings screen • Steering Wheel Controls • Remap Buttons – For remapping the steering wheel control buttons • Dual Assign – For dual assigning the steering wheel control buttons (long button press) • Select Radio – For auto detecting the radio, or changing the radio type •...
-
Page 13: Steering Wheel Control Settings
99-6543HG Steering wheel control settings Select Radio screen * Note: If the interface shows an Alpine radio, and you do not have an Alpine radio, that means the interface does not detect a radio connected it, i.e., an open connection. Verify that the 3.5mm jack is connected to the correct steering wheel jack/wire in the radio. - Page 14 99-6543HG Steering wheel control settings (cont.) Remap Button screen Dual Assign screen • The interface has the ability to change the button assignment for the steering • The interface has the capability to assign two functions to a single button, wheel control audio buttons, except Volume-Up and Volume-Down.
- Page 15 99-6543HG...
- Page 16 INSTALLATION INSTRUCTIONS FOR PART 99-6543HG IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
