INSTALLATION INSTRUCTIONS FOR PART 99-3311B
Chevrolet Camaro 1997-2002
KIT FEATURES
• ISO DIN radio provision with pocket
• Double DIN radio provision
• Painted matte black

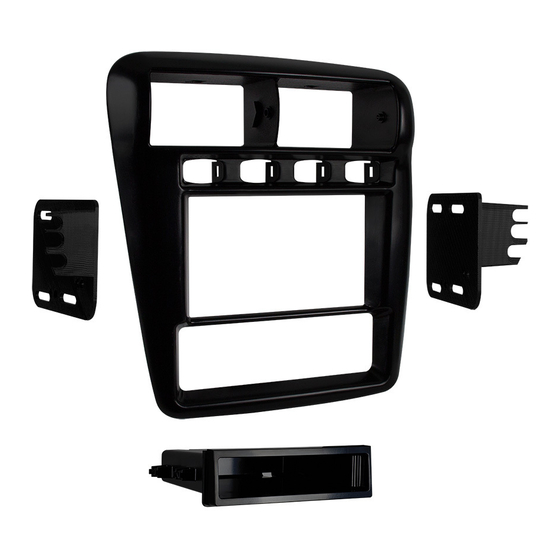

KIT COMPONENTS
• A) Radio trim panel • B) Brackets • C) Pocket • D) (4) #8 x 3/8" truss-head Phillips screws
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-1858
Antenna Adapter: • 40-GM10
METRA. The World's best kits.
APPLICATIONS
99-3311B
C
D
®
metraonline.com
U.S. PATENT # D755,774
Table of Contents
Dash Disassembly
– Chevrolet Camaro 1997-2002 .............................. 2
Kit Assembly
– ISO DIN radio provision with pocket ...................2-3
– Double DIN radio provision ................................2-3
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Socket Wrench
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-3311B
Summary of Contents for Metra Electronics 99-3311B
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-3311B U.S. PATENT # D755,774 APPLICATIONS Table of Contents Chevrolet Camaro 1997-2002 99-3311B Dash Disassembly – Chevrolet Camaro 1997-2002 ......2 Kit Assembly – ISO DIN radio provision with pocket ....2-3 KIT FEATURES • ISO DIN radio provision with pocket –...
- Page 2 99-3311B Dash Disassembly Kit Assembly Dash Disassembly 1. Screw the metal clips onto the radio trim panel. (Figure A) 1. Unsnap and remove radio panel. (Figure A) 2. Snap the factory vents into the radio trim panel. (Figure B) 2. Remove factory radio.
- Page 3 Metra and/or AXXESS. the 99-3311B radio trim panel. 4. Mount the new radio assembly into the dash and reassemble dash in reverse order of disassembly using the 99-3311B radio trim panel.
- Page 4 INSTALLATION INSTRUCTIONS FOR PART 99-3311B NOWLEDGE IS OWER Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.
- Page 5 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-3311B U.S. PATENT # D755,774 APLICACIONES Indice Chevrolet Camaro 1997-2002 99-3311B Desmontaje del tablero – Chevrolet Camaro 1997-2002 ......2 Ensamble del kit – Provisión de radio ISO DIN con cavidad ....2-3 CARACTERÍSTICAS DEL KIT •...
- Page 6 99-3311B Desmontaje del tablero Ensamble del kit Dash Disassembly 1. Atornille los ganchos metálicos al panel de la moldura del radio. 1. Suelte a presión y quite el panel (Figura A) del radio. (Figura A) 2. Coloque a presión las rejillas de 2.
- Page 7 99-3311B Ensamble del kit Provisión de radio ISO DIN Provisiones de radio DDIN 1. Monte la cavidad en los soportes 1. Sujete el radio de mercado del radio con los (4) tornillos secundario a los soportes de radio Phillips #8 de 3/8” suministrados.
- Page 8 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-3311B EL CONOCIMIENTO ES PODER NOWLEDGE IS OWER Mejore sus habilidades de instalación y fabricación Enhance your installation and fabrication skills by inscribiéndose en la escuela de dispositivos electrónicos enrolling in the most recognized and respected mobile electronics school in our industry.
