Metra Electronics 99-7382HG Installation Instructions Manual

For kia niro(without nav) 2017-up
Hide thumbs

Advertisement

Quick Links

Download this manual

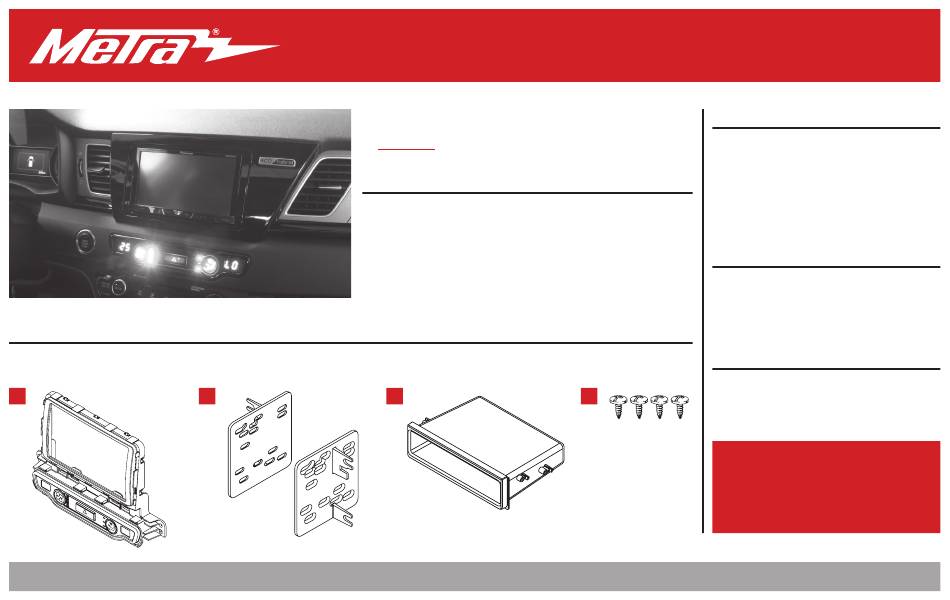

KIT COMPONENTS
• A) Radio trim panel with climate display and hazard switch • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8" Phillips screws
• E) Wiring harness (not shown) • F) Antenna adapter (not shown) • G) ASWC-1 (not shown) • H) AX-CAM6V (not shown)
A
Metra. The World's Best Kits.
®
Kia Niro
Visit
MetraOnline.com
specific applications
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Includes an ASWC-1, AX-CAM6V, antenna adapter, and wiring harness
• Retains the factory backup camera
• Includes a climate display to retain the information that was
displayed on the factory radio
• Includes a built-in hazard switch
• Painted high gloss black
B
MetraOnline.com
2017-up
(without NAV)
for more detailed information about the product and up-to-date vehicle
C
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
99-7382HG
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly
–ISO DIN radio provision with pocket ..................3
–ISO DDIN radio provision .....................................3
Wiring Instructions ................................................4
Final Assembly .......................................................7
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Included with kit
Antenna Adapter: Included with kit
Steering Wheel Control Interface: Included with kit
12V-to-6V Camera Step-Down: Included with kit
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 5/16" Socket wrench • Wire cutter • Crimp tool
D
• Solder gun • Tape • Connectors (example:
butt-connectors, bell caps, etc.)
Attention!
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
Let the vehicle sit with the key
REV. 11/14/18 INST99-7382HG

Advertisement

loading
Need help?

Need help?

Do you have a question about the 99-7382HG and is the answer not in the manual?

Questions and answers

Related Manuals for Metra Electronics 99-7382HG

Summary of Contents for Metra Electronics 99-7382HG

  • Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 11/14/18 INST99-7382HG...
  • Page 2 DASH DISASSEMBLY 1. Open the passenger door then unclip and remove the panel on the side of the dashboard. Remove (1) Phillips screw exposed. (Figure A) 2. Unclip and remove the entire panel surrounding the climate control. (Figure B) 3. Carefully unclip and remove the panel surrounding the radio.
  • Page 3 KIT ASSEMBLY ISO DIN radio provision with pocket ISO DDIN radio provision 1. Attach the pocket to the radio brackets 1. Attach the radio brackets to the radio using the (4) #8 x 3/8” Phillips screws using the screws supplied with the radio. provided.

  • Page 4: Table Of Contents

    WIRING INSTRUCTIONS FEATURES TABLE OF CONTENTS • Retains audio controls on the steering wheel via an ASWC-1 Connections ..........................5-6 • Provides NAV outputs (speed sense) Installation ............................ 6 • Retains the factory backup camera Programming the ASWC-1 and Climate Display ................. 7 •...

  • Page 5: Connections

    CONNECTIONS From the wiring harness included with the kit to the aftermarket radio: The following (1) wire is only for a multimedia/navigation radio that requires this wire. • Connect the Black wire, the Black wire labeled “CAMERA GROUND”, and also the Black wire from the AX-CAM6V, to the ground wire.

  • Page 6: Installation

    CONNECTIONS INSTALLATION (CONT.) 3.5mm jack steering wheel control retention: With the key in the off position: The 3.5mm jack is to be used to retain audio controls on the steering wheel control. 1. Connect the wiring harness included with the kit to the radio trim panel with climate display •...

  • Page 7: Programming The Aswc-1 And Climate Display

    PROGRAMMING THE ASWC-1 AND FINAL ASSEMBLY CLIMATE DISPLAY Programming the ASWC-1: 1. Secure the radio assembly to the dash using the factory screws. 2. Secure the radio trim panel with climate display and hazard switch to the dash using the 1.

  • Page 8: (Aswc-1) Steering Wheel Control Settings

    (ASWC-1) STEERING WHEEL CONTROL SETTINGS L.E.D. feedback Attention: The Axxess Updater App can also be used to program the following (3) sub-sections as well, pending that the ASWC-1 interface has been programmed and is functional. The (18) Red L.E.D. flashes represent the radio the ASWC-1 interface believes it’s connected to. Each flash represents a different radio Manufacturer.

  • Page 9: Remapping The Steering Wheel Control Buttons

    (ASWC-1) STEERING WHEEL CONTROL SETTINGS (CONT.) Radio legend Remapping the steering wheel control buttons Once the ASWC-1 interface has been programmed, the button assignment for the steering Radio # Radio Radio # Radio wheel controls may be reassigned if so desired. For example, if Seek Up is preferred to be Mute instead.

  • Page 10: Dual Assignment Instructions (Long Button Press)

    (ASWC-1) STEERING WHEEL CONTROL SETTINGS (CONT.) Button function legend Dual assignment instructions (long button press) The ASWC-1 interface has the capability to assign (2) functions to a single button, except Function # Function Function # Function Volume Up and Volume Down. Follow the steps below to program the button(s) to the desired Volume-Up Band setting.
  • Page 11 (ASWC-1) STEERING WHEEL CONTROL SETTINGS (CONT.) Dual assignment legend Function # Function Function # Function Not allowed Band Not allowed Play/Enter Seek-Up/Next Seek-Down/Prev On-Hook Mode/Source Off-Hook ATT/Mute Fan-Up* Preset-Up Fan-Down* Preset-Down Temp-Up* Power Temp-Down* * Not applicable in this application REV.
  • Page 12 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 11/14/18 INST99-7382HG...
