Board Setup - Xilinx ML501 Getting Started Tutorial

Board Setup

Board Setup
1.
2.
3.
4.
5.
www.BDTIC.com/XILINX
8
Position the ML501 board so the Xilinx logo is in the upper left corner.
Make sure the power switch located in the upper right corner is in the OFF position.
Locate the CF card slot (on the back side of the ML501 board), and carefully insert the
System ACE™ CF card with its front label facing away from the board.
the back side of the board with the CF card properly inserted.
Note:
The CF card provided with your board might differ.
Caution!
Be careful when inserting or removing the CF card from the slot. Do not force it.

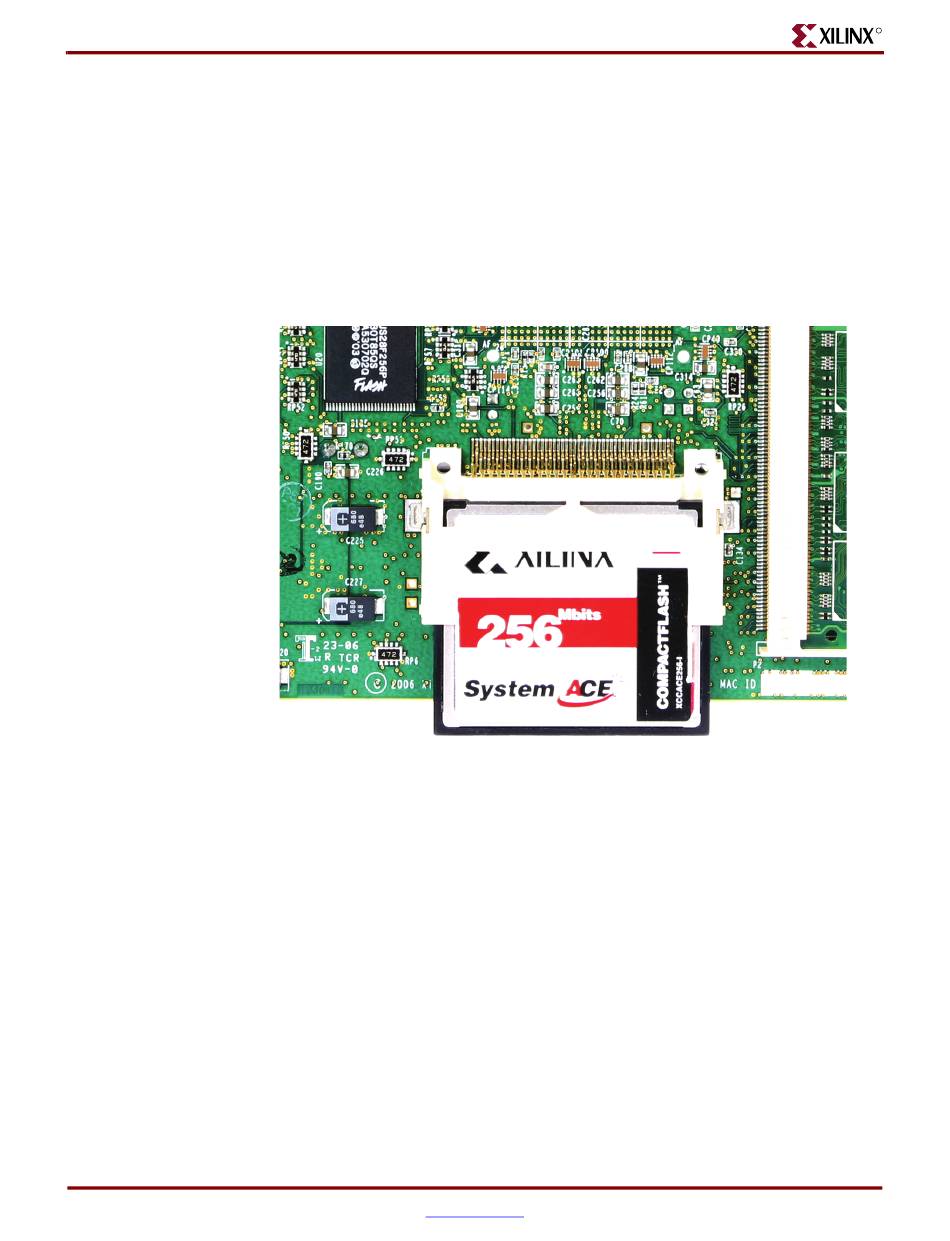

Figure 1: ML501 Evaluation Platform with CF Card
Connect the AC power cord to the power supply brick. Plug the power supply adapter
cable into the ML501 board. Plug in the power supply to AC power.
Set the configuration address and mode DIP switch (the 8-position DIP switch located
above the other 8-position DIP switch) to 00010101.
www.xilinx.com
Figure 1 shows
UG228_01_083006
ML501 Getting Started Tutorial
UG228 (v1.0) August 30, 2006
