Board Setup
7.
8.
www.BDTIC.com/XILINX
10
Use the pull-down menu to set the COM1 properties
♦
Bits per second = 9600
♦
Data bits = 8
♦
Parity = None
♦
Stop bits = 1
♦
Flow control = None
Click OK → OK to accept settings
♦

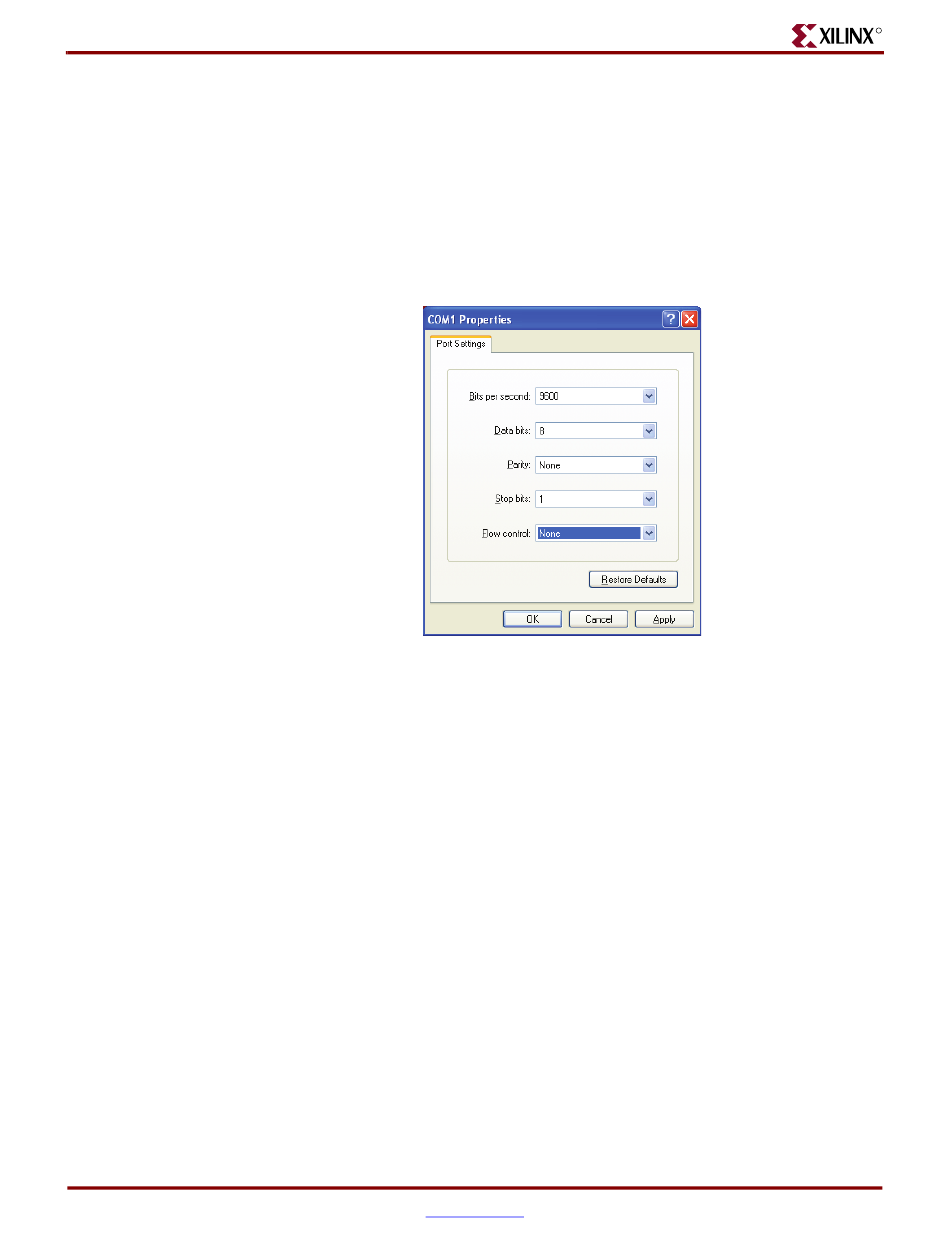

Figure 3: COM1 Properties Setup
Select File → Properties.
Select the Settings tab and click on ASCII Setup
www.xilinx.com
(Figure 3) to the following:
UG228_03_083006
(Figure 4, page 11).
