ML507 QuickStart
May 2010
© Copyright 2010 Xilinx

Advertisement

loading

Related Manuals for Xilinx ML507

Summary of Contents for Xilinx ML507

  • Page 1 ML507 QuickStart May 2010 © Copyright 2010 Xilinx...
  • Page 2 Overview  ML507 Setup  Bootload  Applications – Slideshow – Web Server – Simon – Board Diagnostics – USB Keyboard – My ACE – Ringtone  References Note: This presentation applies to the ML507...
  • Page 3 – PPC440MC DDR2 Interface – External Memory Controller (EMC) • ZBT SRAM – BRAM – Networking – UART – Interrupt Controller – System ACE CF Interface – GPIO (IIC, LEDs and LCD) – PLB Arbiter Note: Presentation applies to the ML507...

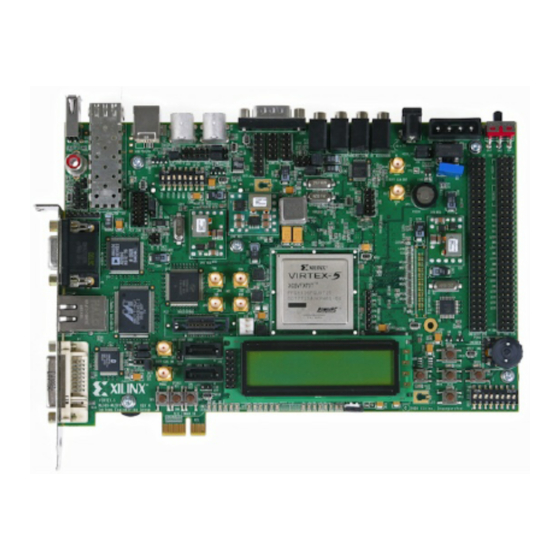

  • Page 4 ML507 Setup  Connect the Xilinx Platform Cable USB to the ML507 board  Connect the RS232 null modem cable to the ML507 board Note: Presentation applies to the ML507...

  • Page 5: Hardware Setup

    Hardware Setup  The ML507 uses a DVI video interface  Connect a DVI monitor  Use a DVI/VGA adapter to connect a VGA monitor – http://www.belkin.com Note: Presentation applies to the ML507...
  • Page 6 Hardware Setup  USB Keyboard – www.dell.com Note: Presentation applies to the ML507...
  • Page 7 Factory CompactFlash  The CompactFlash shipped with the ML507 board has the following ace files preloaded: Note: Presentation applies to the ML507...
  • Page 8 ML507 Setup  Set ML507 Jumpers for GMII – Set both J22 and J23 to positions 1-2 (as shown) Note: Presentation applies to the ML507...
  • Page 9 ML507 Setup  Insert the Factory CompactFlash into the ML507 board (1)  Set the Front DIP switches (SW3) to 00010101 (1 = ON) (2)  Set the Rear DIP switches (SW6) to 11001010 (3)  Power-up the ML507 board...
  • Page 10 ML507 Setup  Start the Terminal Program: Note: Presentation applies to the ML507...
  • Page 11  Refer to ml505_overview_setup.ppt for details on: – Software Requirements – ML505/506/507 Board Setup – Equipment and Cables – Software – Network  Terminal Programs – This presentation requires the 9600-8-N-1 Baud terminal setup Note: Presentation applies to the ML507...
  • Page 12 Bootload  The system_bootload.ace loads: Note: Presentation applies to the ML507...
  • Page 13  The terminal window also reflects the bootload application  Use the left/center/right buttons to choose an application or type a number in the terminal window  After each demo, push the SysACE reset to return to bootload Note: Presentation applies to the ML507...
  • Page 14 Slideshow  Type 1, to launch the slideshow application in Configuration 1  The slideshow loads the presentation into memory then presents it Note: Presentation applies to the ML507...
  • Page 15 Slideshow  The slideshow app will present a series of slides on the Monitor: Note: Presentation applies to the ML507...

  • Page 16: Web Server

    Web Server  Type 2, to launch the web server application in Configuration 2 – Note: You may need to turn off your browser's proxy and specify a direct connection to the Internet in your browser options Note: Host IP is 192.168.1.1, subnet mask is 255.255.255.0...
  • Page 17 Web Server  Open a web browser to address 192.168.1.10 Note: Presentation applies to the ML507...
  • Page 18 Web Server  Click the Toggle LEDs button; view change on ML507 Note: Presentation applies to the ML507...
  • Page 19 Simon  Type 3, to launch the Simon application in Configuration 3 Note: Presentation applies to the ML507...

  • Page 20: Board Diagnostics

    Board Diagnostics  Type 4, to launch the XROM application in Configuration 4 Note: Presentation applies to the ML507...
  • Page 21 Board Diagnostics  XROM includes a series of board test routines Note: Presentation applies to the ML507...

  • Page 22: Usb Keyboard

    USB Keyboard  Type 5, to launch the USB Keyboard application in Configuration 5 – Type ML507 and view results: Note: Presentation applies to the ML507...
  • Page 23 My ACE  Type 6, to launch the My ACE application in Configuration 6 Note: Presentation applies to the ML507...
  • Page 24 Ringtone  Type 7, to launch the Ringtone application in Configuration 7  Press any key then press 1-7 to play a simple melody Note: Presentation applies to the ML507...
  • Page 25 References...
  • Page 26 References  Virtex-5 – Virtex-5 FPGA Family http://www.xilinx.com/products/virtex5/index.htm  Platform Studio – Embedded Development Kit (EDK) Resources http://www.xilinx.com/tools/platform.htm – Embedded System Tools Reference Manual http://www.xilinx.com/support/documentation/sw_manuals/xilinx12_1/est_rm.pdf – EDK Concepts, Tools, and Techniques http://www.xilinx.com/support/documentation/sw_manuals/xilinx12_1/edk_ctt.pdf...
  • Page 27 Documentation...
  • Page 28 Documentation  ML505/506/507 Documentation – ML505 Overview http://www.xilinx.com/ml505 – ML506 Overview http://www.xilinx.com/ml506 – ML507 Overview http://www.xilinx.com/ml507 – ML505/506/507 Evaluation Platform User Guide – UG347 http://www.xilinx.com/support/documentation/boards_and_kits/ug347.pdf – ML505/506/507 Getting Started Tutorial – UG348 http://www.xilinx.com/support/documentation/boards_and_kits/ug348.pdf – ML505/506/507 Reference Design User Guide – UG349...
