ML501 Getting Started Tutorial
UG228 (v1.0) August 30, 2006
Connect a null modem serial cable between your computer and the ML501 board, and
open a serial terminal program:
Select Start → Programs → Accessories → Communications → HyperTerminal
♦
♦
In the Connection Description window, type 9600 in the Name box, then click OK
♦
In the Connect To window, click Cancel
In the 9600-HyperTerminal window, select File → Properties
♦
- Select the Connect To tab
- Select COM1 in the Connect using box (see
Click Configure...
-

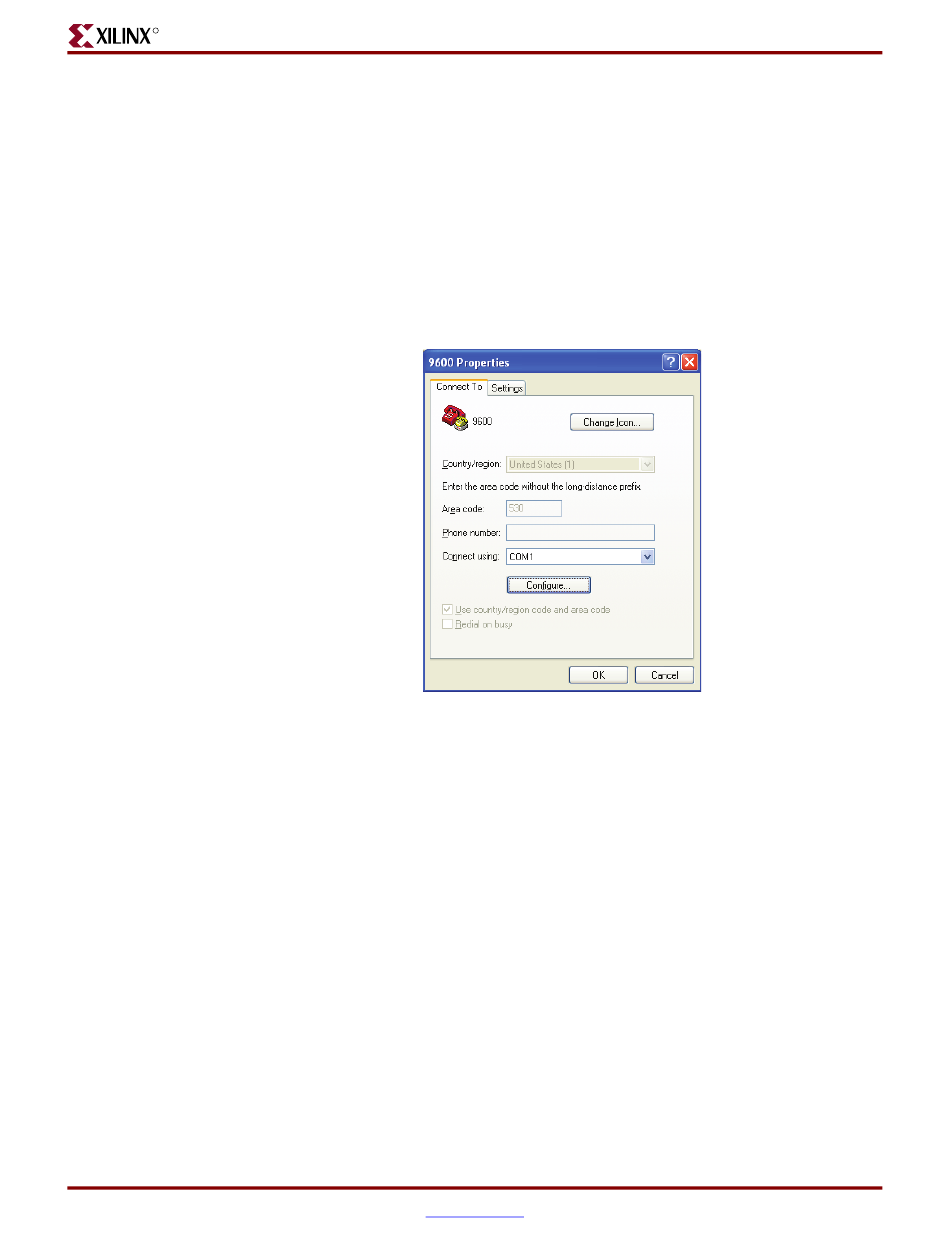

Figure 2: HyperTerminal Setup and Properties
www.xilinx.com
Board Setup
Figure 2)
UG228_02_083006
