Industrial Electronic Devices
TRANSMIT J1939:
By pressing the
"Transmit
J1939" button from the main window of SW67431 the window "Transmit J1939 Frames" appears (Fig. 6):
The means of the fields of the table are:
In the field "Priority" insert the priority of the frame, in J1939 protocol is a number among 0,1,2,3,4,5,6,7. The number 0 is the
highest priority and 7 is the lowest;
In the field
"Data
Page" insert the data page, in the J1939 protocol it is 0 or 1;
In the field "PGN" insert the PGN of the data you would to transmit to J1939 (in the J1939 protocol the PGN is an identifier);
In the field
"Source
Address" insert the ID of device which sending the frame to;
In the field
"Num
Byte" insert the dimension of the PGN (number of bytes);
If the option "Request" is checked, the PGN is transmitted when a J1939 request is sent (On Request);
If the option
"Data
Change" is checked, the PGN is transmitted when the data from Modbus changes;
If the option
"On
Timer" is checked, the PGN is transmitted cyclically;
In the field
"Send
Timer" insert the delay with which the PGN is sent (only if you use the Transmition Type "On Timer");
In the field "Mnemonic" the description for the frame is defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso

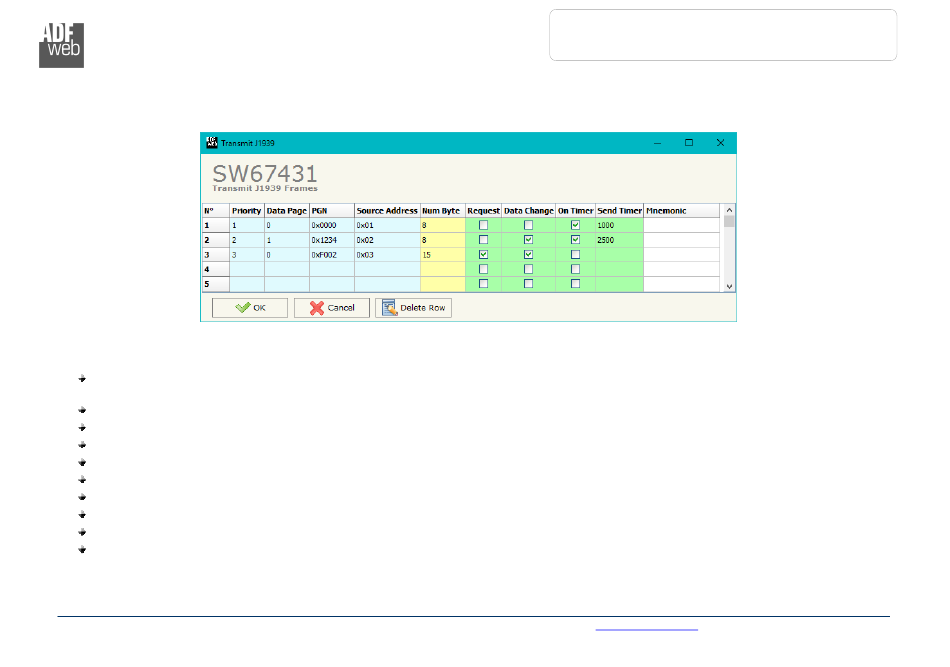

Figure 6: "Transmit J1939 Frames" window
User Manual J1939 / Modbus Master
Document code: MN67431_ENG
Revision 1.101
INFO:
www.adfweb.com
Phone +39.0438.30.91.31
Page 19 of 32
