Chapter Three - Installation

System Components

This section describes the components on the unit to help you locate features relevant to
installation.

Internal View

Power Supply
Expansion
Slots
I/O Ports
Feature
Power Supply
Expansion Slots
I/O Ports
CD-ROM
Floppy Drive
Hard Drive

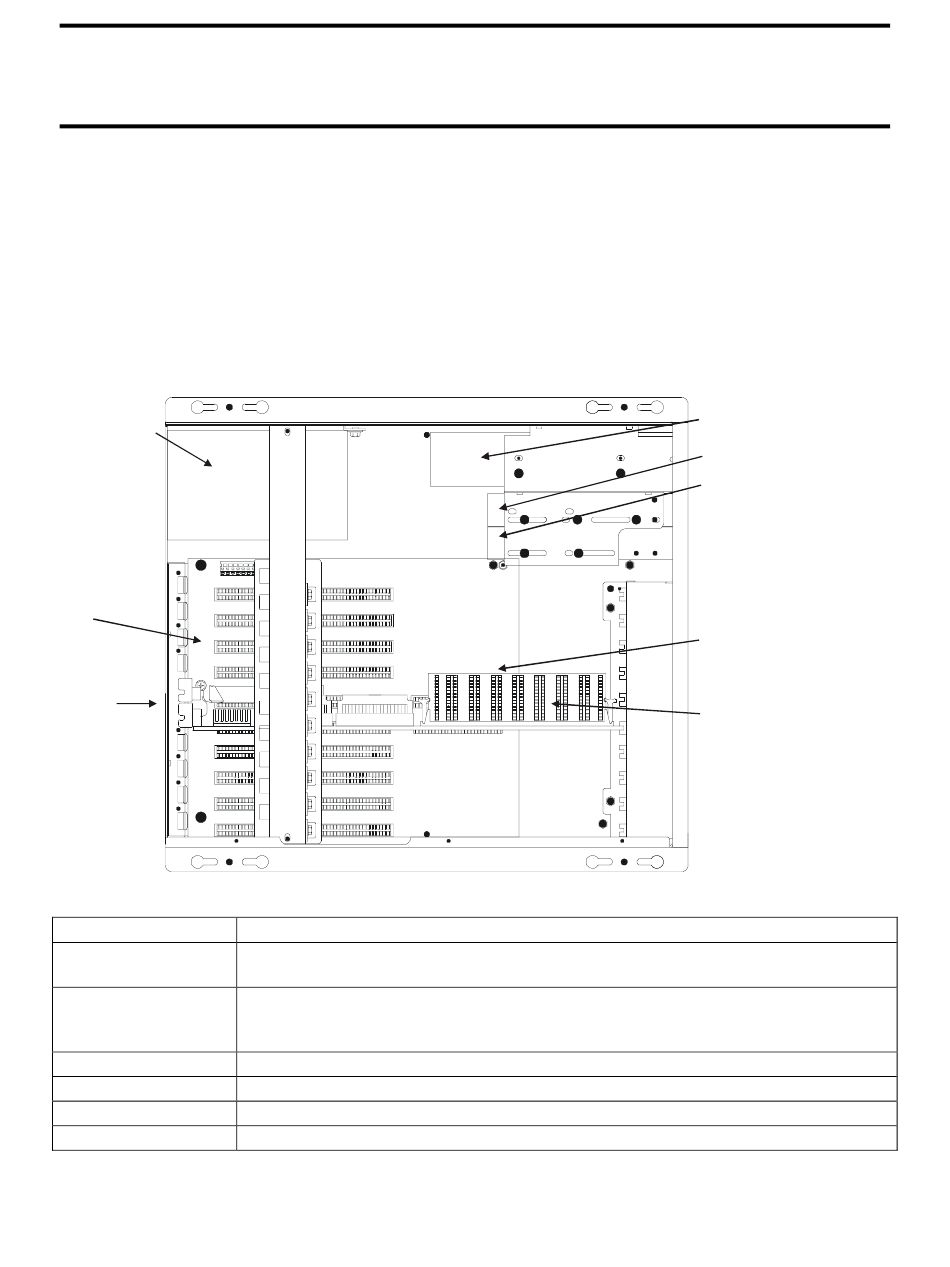

Figure 3-1. 1510 Internal View
Description
The 1510 has a power supply of 235W AC, auto sensing, 50/60 Hz, 10.0 (max) @
115V, 5.5 A (max) @ 230V
The 1510 has a 10-slot passive backplane with 4 full length ISA, three full length
PCI, and one half length PCI available for expansion. Two PICMG expansion slots
are dedicated to the CPU.
The 1510 has 2 serial, 1 parallel, PS/2 keyboard and mouse, and VGA ports.
The 1510 has a CD-ROM Drive included in the 1510.
The 1510 has a 1.44 MB Floppy Drive included in the 1510.
The 1510 has a 10 GB (minumum) hard drive.
Chapter Three - Installation
CD-ROM
Floppy Drive
Hard Drive
Processor
and SBC-370
(under DRAM)
DRAM
17
