1510 Industrial PC Computer System Manual

PS/2 keyboard and mouse connector

Both a keyboard and a mouse can be connected to the PS/2 compatible port through the
Y adapter cable included with your unit. Connect a mouse to the cable that has the mouse
icon on it, and a keyboard into the cable that has a keyboard icon on it. If connecting
only a keyboard, you can connect directly to the PS/2 compatible connector on the rear
of the unit. If connecting only a mouse, the mouse must be connected using the Y adapter
cable port. Either the mouse or the keyboard can be used alone and connected using the
Y-cable.
Refer to Table B-5 for the `keyboard/mouse connector pin assignments.

Installing Options

Internal Hardware Options

This section describes how to install internal hardware options.
20

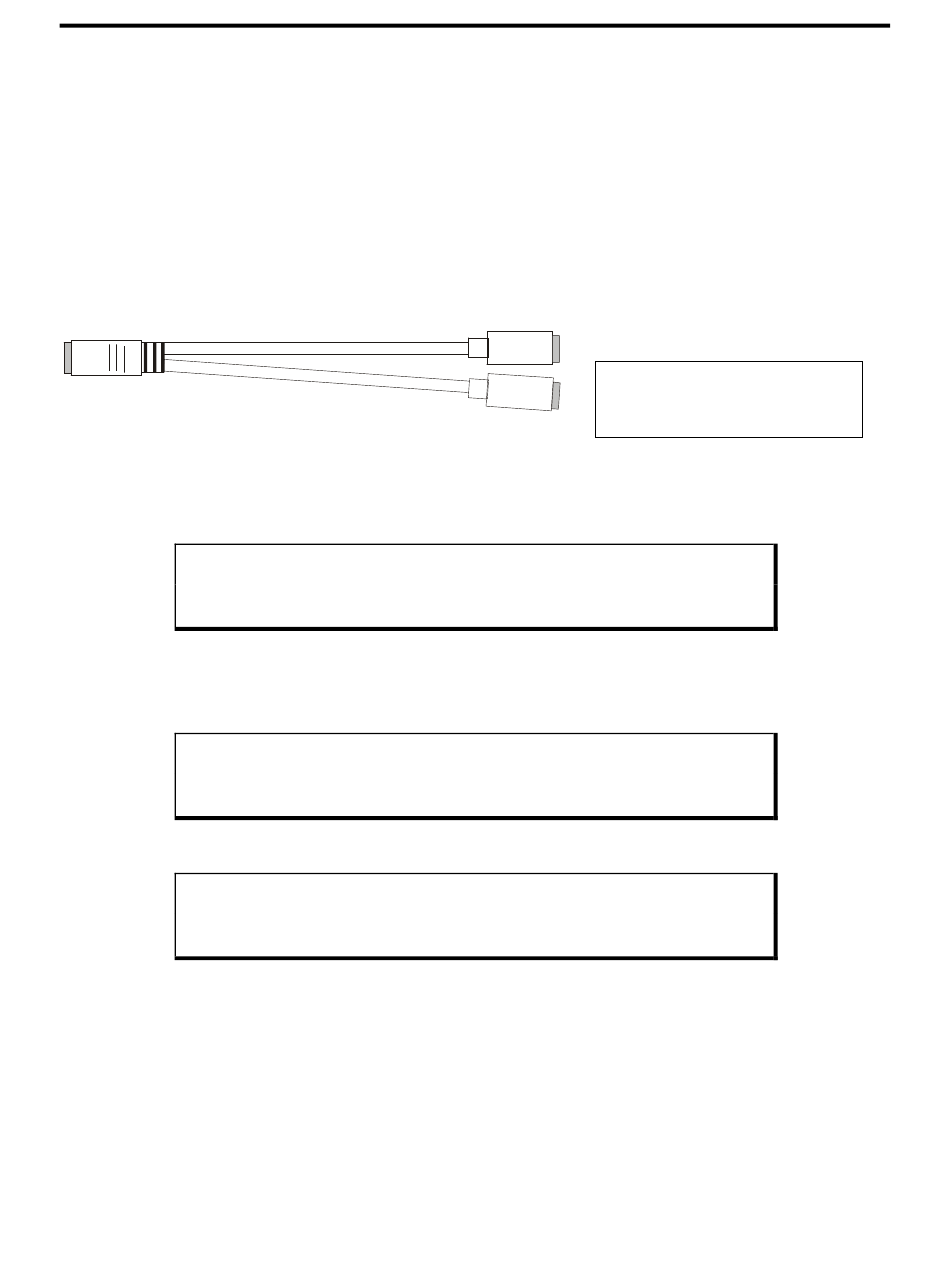

Figure 3-4. Y-Cable
Note
Refer to Appendix B pinout information.
Warning
For qualified service personnel only.
Caution
Turn off the unit before installing internal hardware.
Y adapter cable for rear keyboard
and mouse connector.
