Back View - Xycom 1510 Manual

Back View

Power
Receptacle
Expansion
Slots
KBD/Mouse Port
Feature
Expansion Slots
Ports
Power Supply Fan
KBD/Mouse Port
Ethernet Port

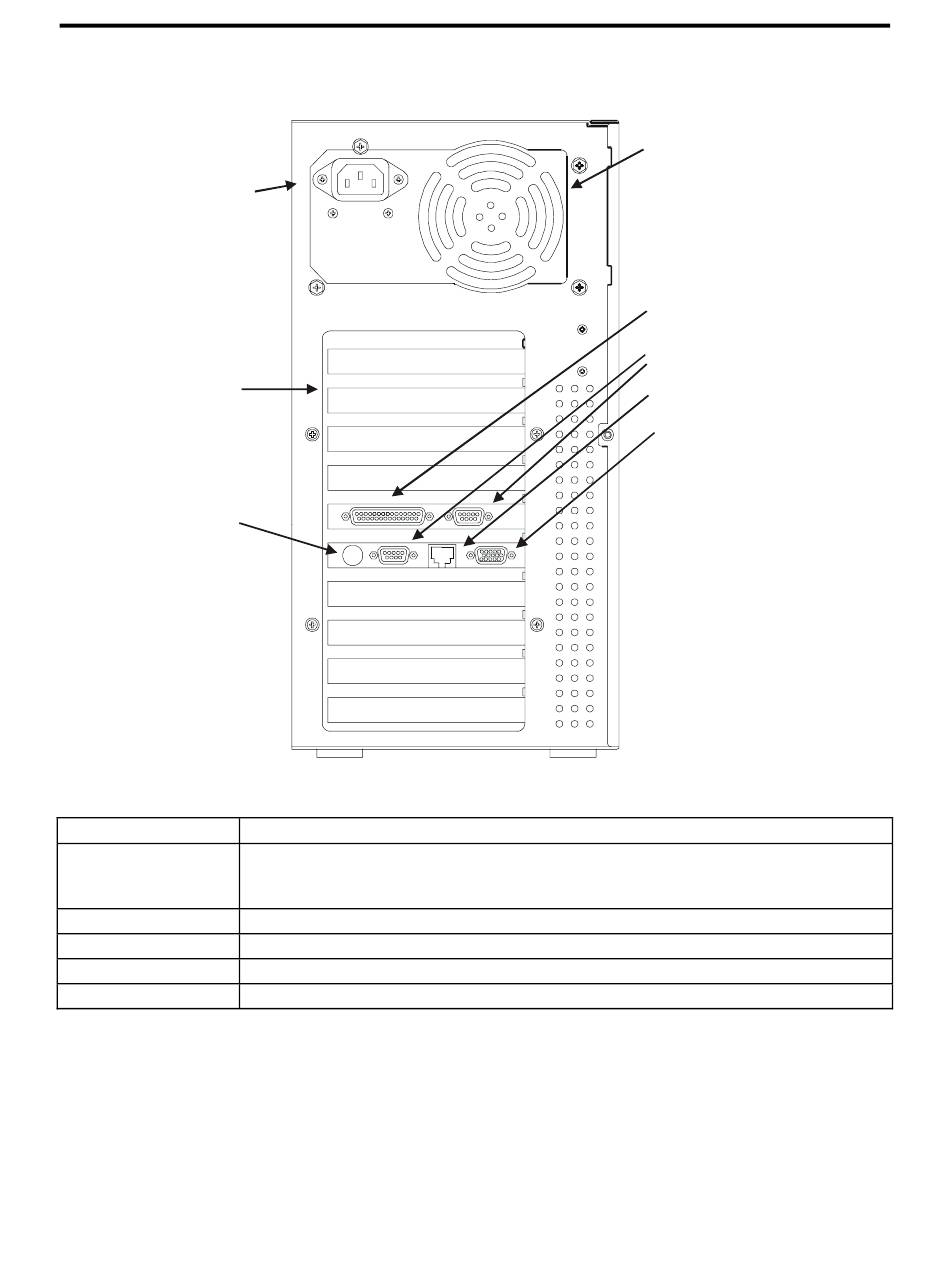

Figure 3-3. 1510 Back View
Description
The 1510 has a 10-slot passive backplane with 4 full length ISA, three full length
PCI, and one half length PCI available for expansion. Two PICMG expansion
slots are dedicated to the CPU.
The 1510 has two serial, one parallel, PS-2 keyboard and mouse, and VGA ports.
The 1510 has an exhaust fan that cools the unit power supply.
The 1510 has a KBD/Mouse Port on the rear of the unit.
The 1510 has an Ethernet port that provides a 10/100BASE-T port.
Chapter Three - Installation
Power Supply Fan
Parallel Port
Serial Ports
Ethernet Port
VGA Port
