1510 Industrial PC Computer System Manual
Screw on
Hold Down
Bracket
Hold Down
Bracket
Expansion
Slots
Clamp
Placement
Screw on
Hold Down
Bracket

Reinstalling Operating Systems

The 1510 CPU ships with MS-DOS pre-installed. Optionally available, are WindowsÒ
95 and WindowsÒ NT operating systems. If you want to install a different operating
system, refer to that operating system's manual for directions.
MS-DOSÒ Ò Ò Ò reinstallation
If you need to reinstall MS-DOS, refer to the Xycom Automation Workstation Recovery
Media Software Installation Instructions for MicrosoftÒ DOS 6.22 (shipped with sys-
tems pre-installed with MS-DOS). This document is devoted to the reinstallation of your
MS-DOS operating system and drivers utilizing the Recovery Media provided with your
Xycom Automation industrial computer.
NOTE: This procedure assumes that the computer hard disk drive has been completely
corrupted or replaced.
WARNING: This procedure will destroy data that may exist on the hard disk drive.
22

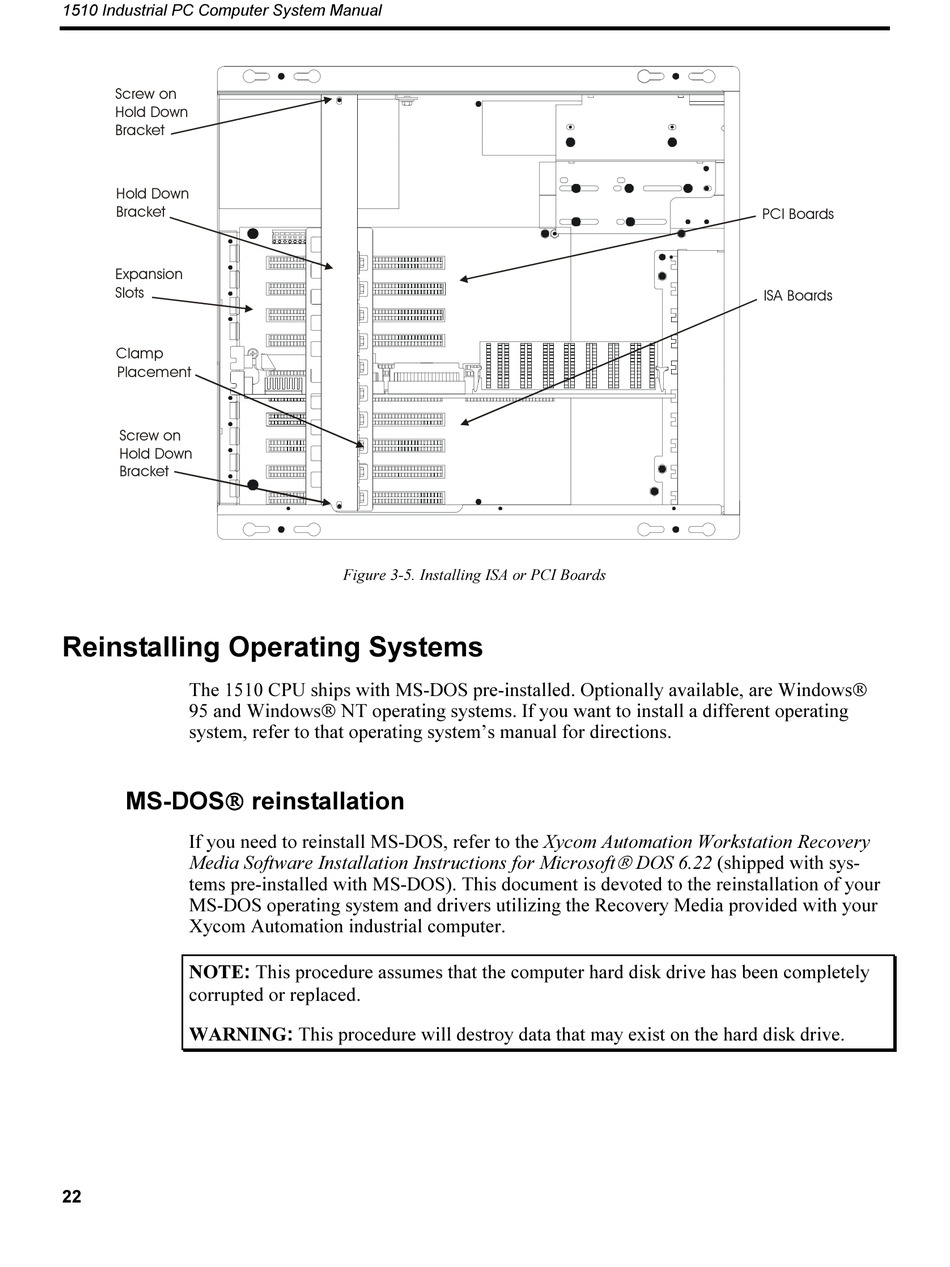

Figure 3-5. Installing ISA or PCI Boards
PCI Boards
ISA Boards
