6.4 SETTING STRAP WIDTH

NOTE:
The tool can be used with two different strap
widths 9–11 mm ( / ") or 12–13 mm (
3
8
Strap width 12–13 mm ( /
1
a) Change strap width from 9–11 mm to
12–13 mm
– Remove battery from tool.
– Release sunk screw (47) and remove strap
stop 10 mm (43) (12–13 mm without strap
stop).
– Lift the rocker lever towards the handle, release
sunk screw (47) and remove strap guide
10 mm (104).
Mount strap guide 13 mm (102). Secure sunk
screw (47) with Loctite 222.
– Release sunk screw (103) and cylinder screw
(153) and remove cover (146).
– Release cylinder screw (154) turn strap stop
(18/2) 180° and remount it.
– Unscrew threaded bolt eight turns with screw-
driver (190).
– Pull down strap guide (147) and turn it 180° until
13 mm indicator appears.
– Tighten threaded bolt with screwdriver (190) and
mount cover (146).
– Secure screws (153) and (103) with Loctite 222.
b) Change strap width from 12–13 mm to
9–11 mm
– Sequence as described under point a).
– Mount 10 mm strap stop (43) and secure sunk
screw (47) with Loctite 222.
– Mount 10 mm strap guide (104) and secure sunk
screw (47) with Loctite 222.
– Turn strap stop (148).
– Turn strap guide (147) until "10" indicator
appears.
/ ").
1
2
") only for PP straps!
2
43 47

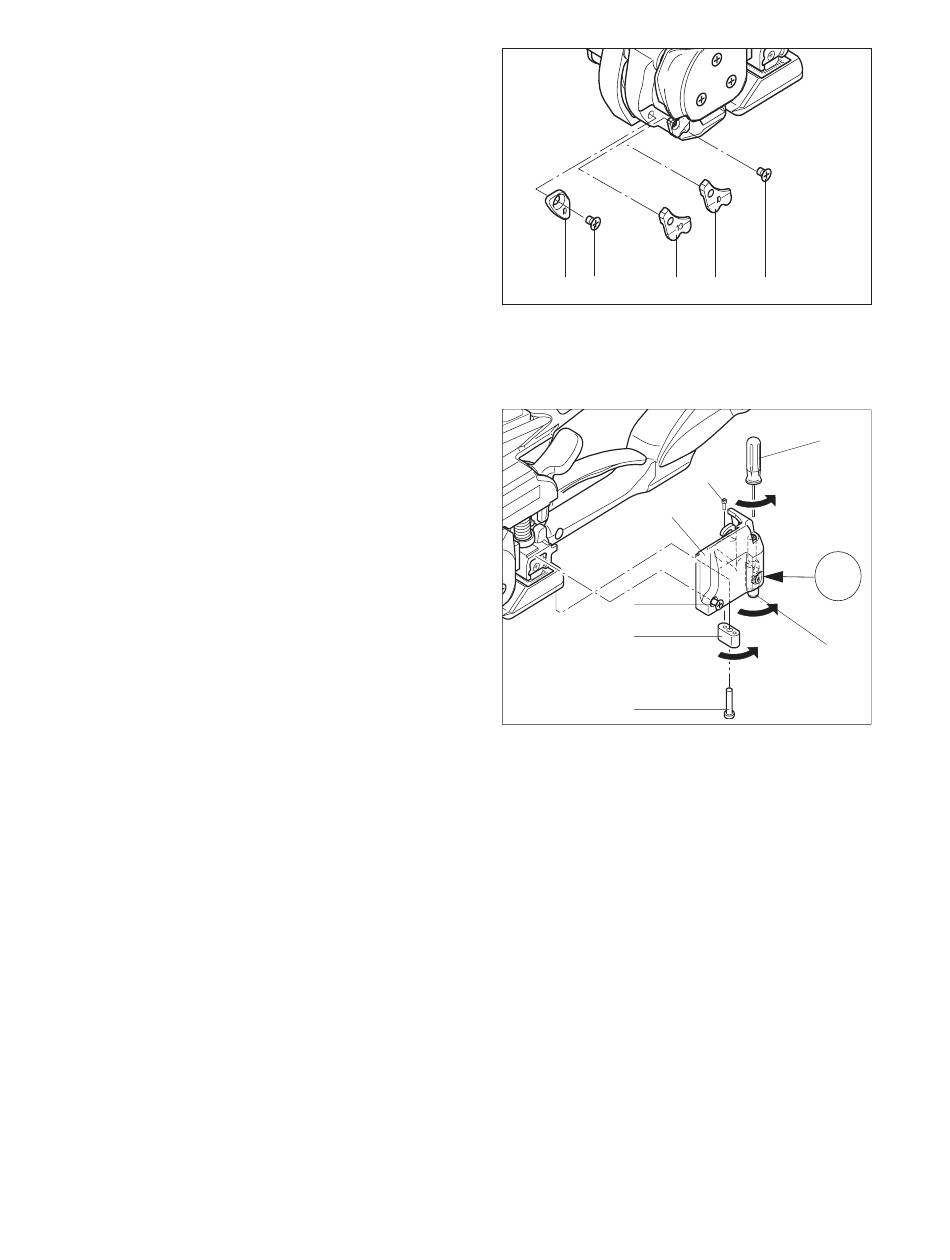

Fig. 17
103
148
153
Fig. 18
12
102 104 47
190
154
8 x
146
10/13
180°
180°
147
