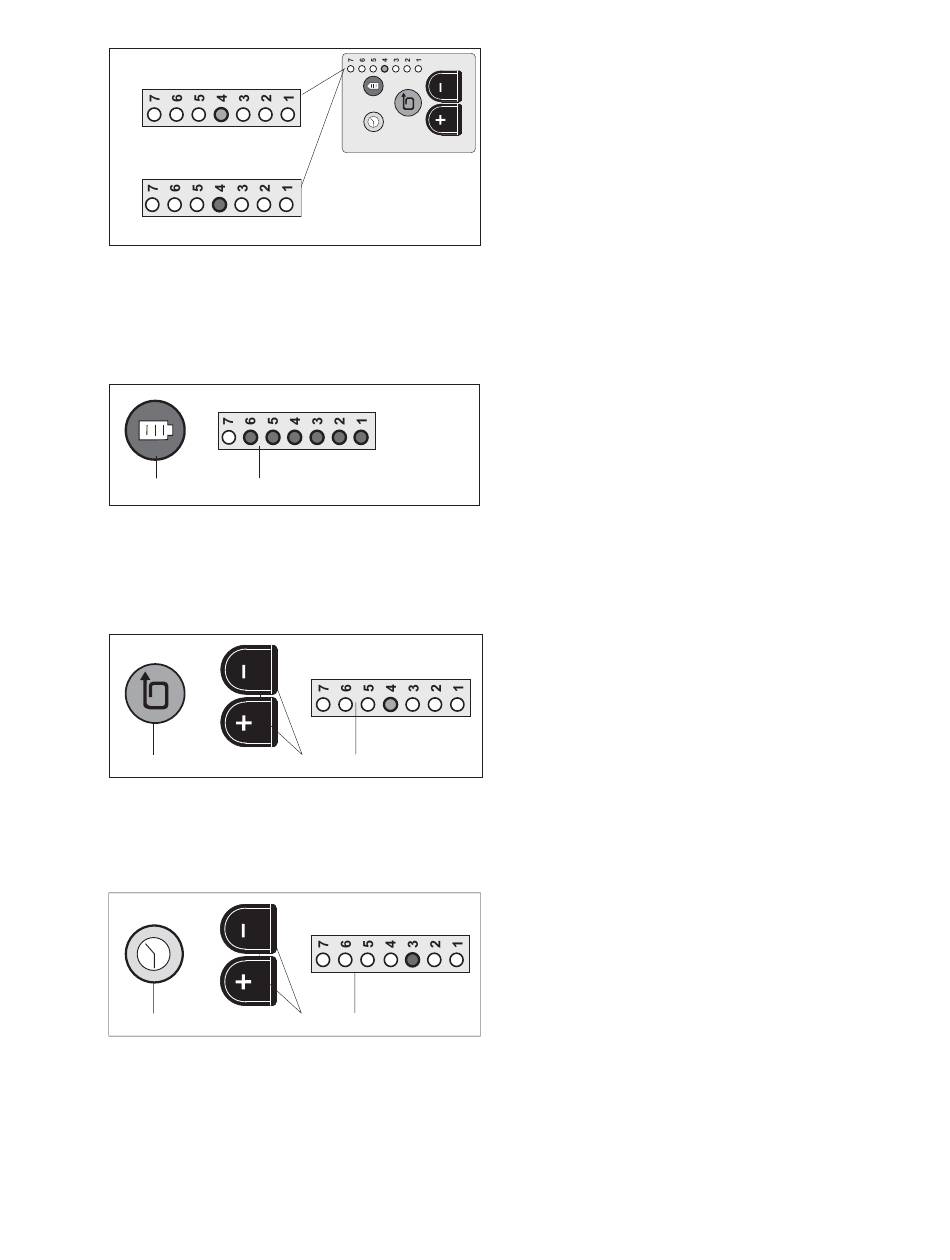

6.3 OPERATING PANEL

a) Standard indication (green)
The current strap tension setting is monitored with
inserted and charged battery.
1 = minimum strap tension (approx. 100 N) (22 lbs)
7 = maximum strap tension (approx. 700 N) (155 lbs)
– For adjustment of strap tension, refer to chapter
6.3.2
b) Battery empty indication (red)
If the inserted battery is empty, the LED switches to
red and the battery must be charged, refer to chapter
5.3.

6.3.1 CHECKING BATTERY CHARGE

– Depress battery push button (14/1) briefl y. Read
off battery charge on LED indicator (14/2).
1 = empty battery
1–3 = minimum charge (battery must be charged
soon)
1–5 = decreasing charge (charging possible)
1–6 = good charge (charging would damage the
battery)
1–7 = maximum battery charge (charging would
damage the battery)

6.3.2 SETTING STRAP TENSION

– Depress strap tension push button (15/1) briefl y
until LED indicator (15/3) fl ashes.
– Depress – or + push button (15/2) until fl ashing
LED indicator shows required strap tension (wait
two seconds until new setting is saved).
1 = minimum strap tension (approx. 100 N)
(22 lbs)
7 = maximum strap tension (apprrox. 700 N)
(155 lbs)

6.3.3 SETTING WELDING TIME

– Depress welding time push button (16/1) briefl y
until LED indicator (16/3) fl ashes.
– Depress – or + push button (16/2) until fl ashing
LED indicator shows required welding time (wait
two seconds until new setting is saved).
1 = minimum welding time
7 = maximum welding time
NOTE:
Cutting
The cutting of the strap is infl uenced by the welding
time. If the tool cuts badly, extend the welding time
by one interval.
