Description; Major Components; Operating Panel; Function - Signode BXT 10 Operation, Parts And Safety Manual

BUY AT ALLSTRAP (866) 779-2673
4

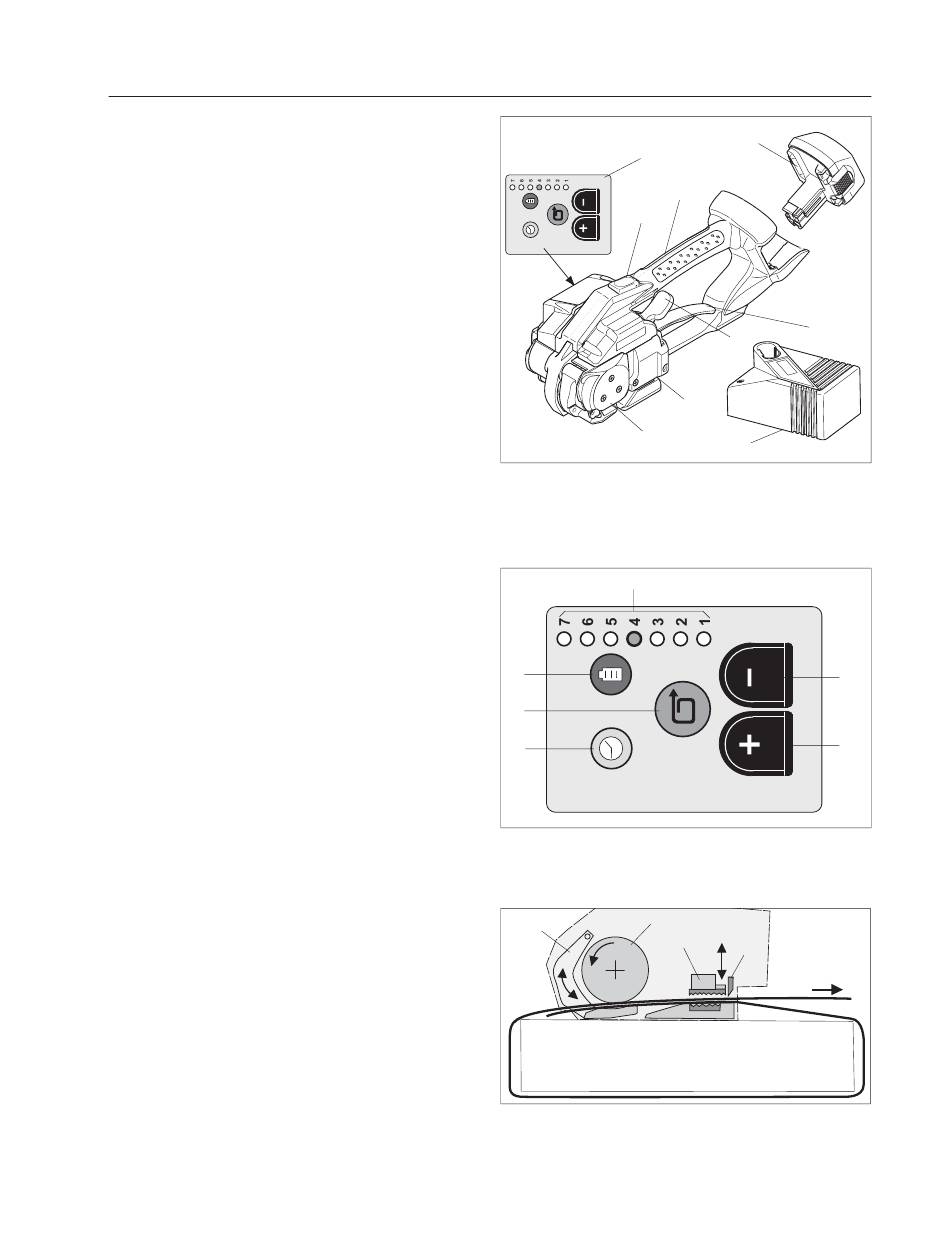

4.1 MAJOR COMPONENTS

1 Operating panel

2 Strap tensioning push button
3 Handle
4 Battery
5 Rocker lever
6 Welding/cutting button
7 Welding/Cutting
8 Tensioning
9 Battery charger
4.2 OPERATING PANEL
1 Welding time push button
2 Strap tension push button
3 Battery push button
4 LED-indicators 1–7
Green = Strap tension setting
Red = Battery empty indicator
5 Setting – push button
6 Setting + push button
For detailed information of the operating panel,
refer to chapter 6.3.

4.3 FUNCTION

– Clamping of the straps by tooth plate on rocker
(3/1).
– Tensioning by feed wheel (3/2) anti-clockwise.
– Friction welding (3/3) of the straps.
– Upper strap is cut by knife (3/4).

DESCRIPTION

Fig. 1
3
2
1
Fig. 2
1
Fig. 3
6
4
1
3
2
6
7
8
9
4
2
3
4
5
5
6
05.07
