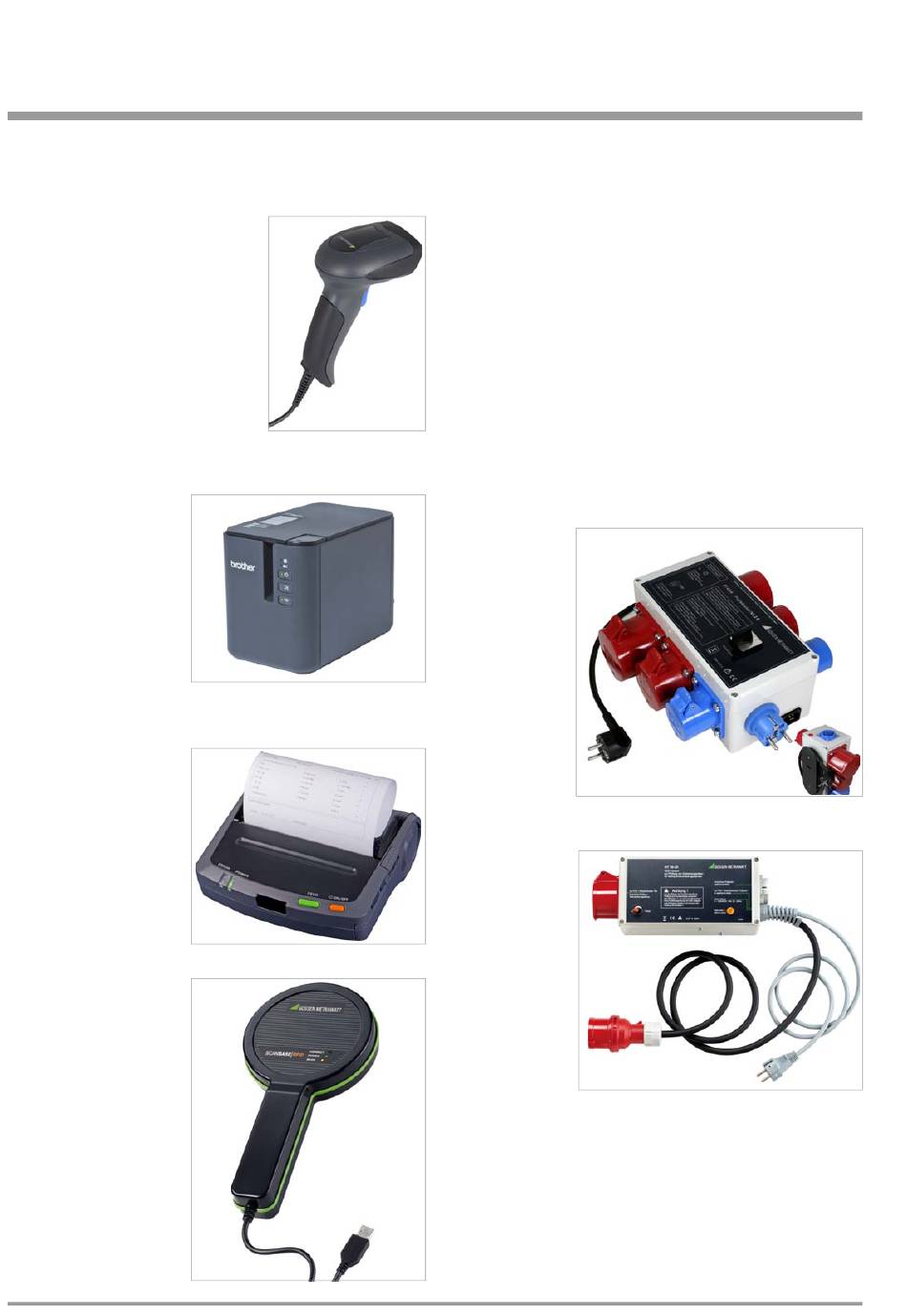

Accessories (not included)

Z751A Barcode Reader
For connection to the USB master port
at the test instrument, and for reading
in barcodes. This makes it possible to
conveniently insert the ID numbers of
DUTs into single measurements and
test sequences.
This device is based upon the concept
of an instinctive scanning distance and
provides best possible reading perfor-
mance. Green Spot technology pro-
vides a "good-read" projection directly
on the code. The device is equipped
with a USB port.
Barcode printer Z721E
For connection to the USB
master port at the test
instrument, and for printing
out barcode labels.
Coding: Code39, Code128,
EAN13, Text, QR Code*,
Micro QR Code, DataMat-
rix, Aztec
* QR Code is a registered
trademark of
DENSO WAVE INCORPORATED
Z721S Thermal Printer
For connection to the USB
master port at the test
instrument, and for printing
out test reports.
SCANBASE RFID (Z751E)
(RFID read / write)
Compact write/read device
with USB interface for pro-
gramming and reading of
13.56 MHz transponders
per ISO 15693.
SECUTEST BASE10/PRO/SEC-
ULIFE ST BASE(25) enable
the user to populate the
RFID tags direcly from the
test instrument with the
help of the programmer.
8
/ P and SECULIFE ST
RO BASE(25)
CEE Adapter (Z745A) for Testing Single and 3-Phase Electrical Devices
The Z745A CEE adapter allows for quick and efficient testing of
devices equipped with a CEE plug. The adapter is equipped with
the following CEE flush-type socket outlets: 5-pole 16 A, 5-pole
32 A and 3-pole 16 A. Furthermore, the adapter includes five
4 mm safety sockets to which 3-phase devices without perma-
nently attached plug or conventional measurement cables can be
connected, e.g. by means of quick clamp terminals (not included).
The following tests can be performed on devices with CEE plugs
with the help of the adapter:
• Testing of protective conductor continuity
• Insulation resistance, alternatively leakage current (equivalent
leakage current)
• Function test (3-pole CEE outlet only)
The Z745A CEE adapter may also be used as an adapter for con-
necting devices with 3-pole CEE plugs to common earthing con-
tact outlets.
VL2 E (Z745W)
Test adapter with
single-phase and
3-phase plug con-
nectors up to
CEE 32A
AT16-DI (Z750A) 3-Phase 16 A Differential Current Adapter
Devices which are
equipped with a 5-
pole, 16 A / 6 h
CEE plug can be
quickly and effi-
ciently tested with
the AT16-DI CEE
adapter.
The following tests
can be performed
on devices with
CEE plugs with the
help of the AT16-DI
CEE adapter:
• Testing of
protective conductor continuity
• Insulation resistance, alternatively leakage current (equivalent
leakage current)
• Measurement of protective conductor resistance with the following
methods: equivalent leakage current / differential current / direct
• Function test
This differential current adapter is also available in a variant with a
5-pole 32 A / 6 h CEE plug with the designation AT32-DI CEE adapter.
