Removing The Gas Sample; Installing The Top Mount - Philips M1013A IntelliVue G1 Service Manual

Gas analyzer.
Hide thumbs

Advertisement

Installing the Top Mount

Make sure the sample gas is routed through the CO
N O T E
M1656B Gas Exhaust Return Filter
1
Female luer lock
2
Shorter tube connecting to the ventilation circuit
3
Longer tube connecting to the Anesthetic Gas Exhaust Outlet
4

Removing the Gas Sample

To remove the gas sample from the anesthesia circuit, a scavenging system needs to be connected to the
gas analyzer's Anesthetic Gas Exhaust. If you intend to use a scavenging system with the gas analyzer,
one of the following parts must also be connected to protect it against malfunction:
A ventilator reservoir where the suction pressure does not exceed 70 mbar or
1
A scavenging interface, properly set and maintained (see scavenging interface manufacturer's
2
instructions).
If you are not returning the gas sample into the patient's breathing circuit, install the M1655B Exhaust
N O T E
Return Tubing without the M1656B Exhaust Return Filter, shorter tube and the luer lock fitting. See
the Instructions for Use provided with the tubing and filter for further details.
Installing the Top Mount

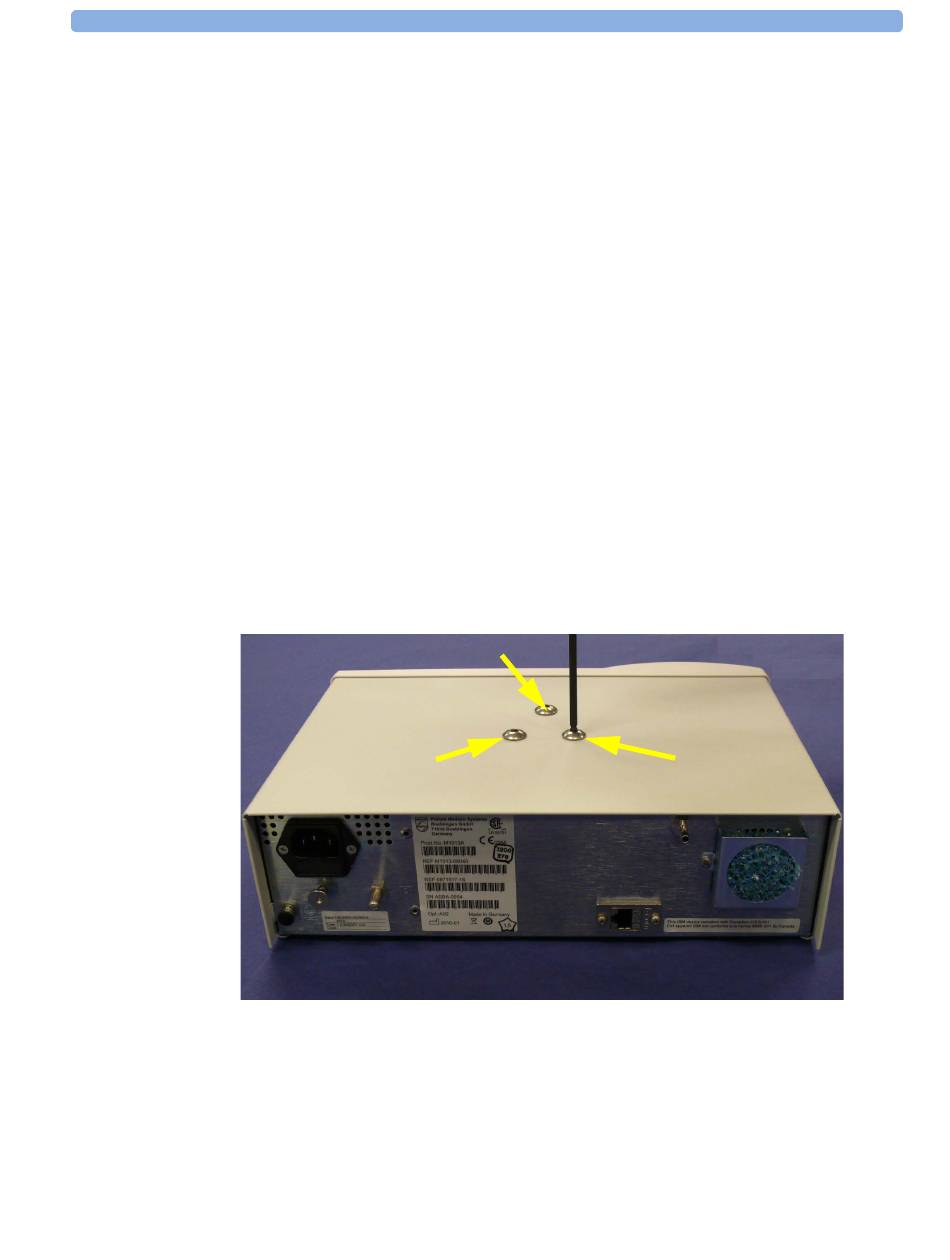

Remove the three rounded head screws on the top of the gas analyzer.
1
2 Installation and Patient Safety
absorber before going back to the patient.
2
21
