Floe V-3600 Assembly Instructions Manual

119" boat lift, p/n 511-36080-00 with patented easy level leg system
Hide thumbs Also See for V-3600:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

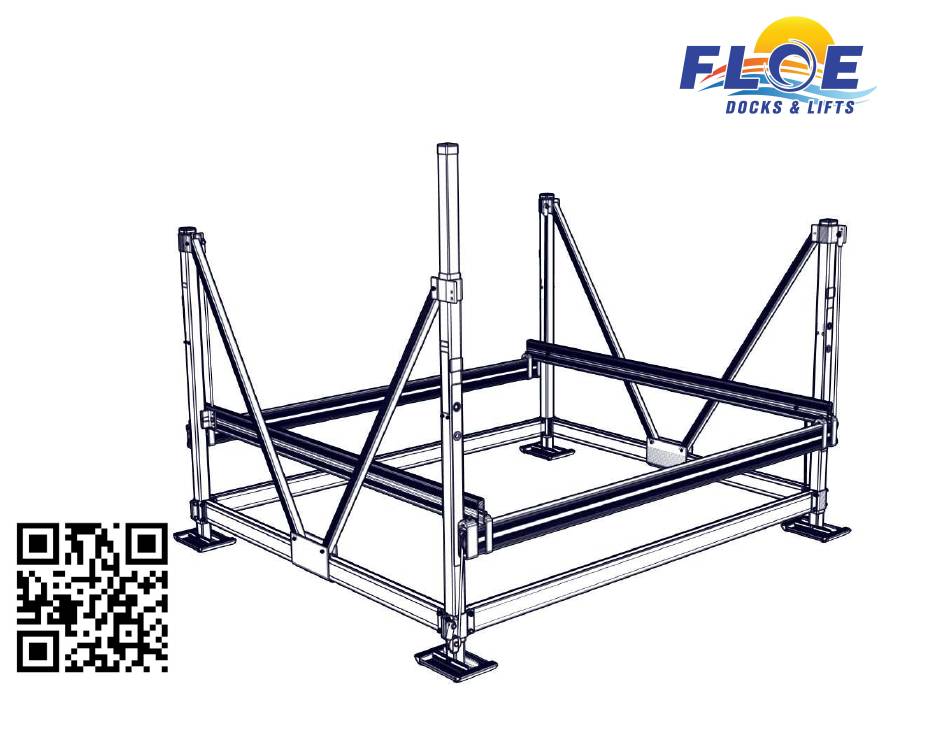

FLOE V-3600 119" BOAT LIFT
P/N 511-36080-00
WITH PATENTED EASY LEVEL LEG SYSTEM
ASSEMBLY INSTRUCTIONS
Instructions P/N 611-36080-00
Issued 3/4/19
© Manufactured by:
Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55362
www.floeintl.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-3600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Floe V-3600

Summary of Contents for Floe V-3600

  • Page 1 FLOE V-3600 119” BOAT LIFT P/N 511-36080-00 WITH PATENTED EASY LEVEL LEG SYSTEM ASSEMBLY INSTRUCTIONS © Manufactured by: Floe International Inc. 48473 State Hwy. 65 McGregor, MN 55362 Instructions P/N 611-36080-00 www.floeintl.com Issued 3/4/19...
  • Page 2 Required Tools...
  • Page 3 Card Contents (511-04265-00) Step Part Numbers Descriptions Torques 001-70215-00 HHCS, 1/2-13 x 3” SS 18-8 60 ft. lbs. 001-70217-00 HHCS, 1/2-13 x 3 1/2” ss 18-8 45 ft. lbs. 001-70210-00 HHCS, 1/2-13 x 1 3/4” ss 18-8 45 ft. lbs. 001-70219-00 HHCS, 1/2-13 x 4”...
  • Page 4 Warnings IMPORTANT NOTE: DO NOT USE IMPACT WRENCH WHEN ADJUSTING THE EASY LEVEL LEGS Tips  Torque nuts to specification, not bolts.  Place parts and fasteners in designated locations prior to each step.  Before tightening fasteners to specified torque, ensure that the lift is square. ...
  • Page 5 Pre-Assembly Prep Lift Dimensions Length: 114” Width: 135 3/8” Height: 104” Work Space Level work space Allow space to organize parts Material Blocking may be anything 10”-15” in height. (5 gallon bucket, jack stands, blocks, saw horses) 4 (2 for each side) Purpose Blocking used to support lift during assembly steps 1 and 2...
  • Page 6 Contents for Step 1 NOTE (2) ½” Nylock Nuts and (2) ½” Washers are used in Step 5-A (24) 1/2” Alum. Nylock Nuts to attach lifting (6) 1/2 x 4” ss Bolts cables to (2) ½” x 4” Bolts. (8) 1/2 x 3 1/2” ss Bolts NOTE (6) 1/2 x 3”...
  • Page 7 Assembly for Step 1 NOTE (2) ½” Nylock Nuts and (2) ½” Washers ARE NOT used for (2) ½” x 4” Bolts on corners A and D until Step 6-A.
  • Page 9 FRONT/REAR IMPORTANT NOTE: FRAME BEAMS MUST BE IN THIS ORIENTATION BEFORE CONTINUING. FRONT/REAR...
  • Page 10 Contents for Step 2 (4) 1/2” Alum. Nylock Nuts (4) 1/2 x 3 3/4” ss Bolts Torque to 20 ft. lbs.
  • Page 11 Assembly of Step 2 NOTE CARRIDGE BOLT HEADS MUST FACE INSIDE OF LIFT. NUTS MUST FACE OUTSIDE OF LIFT. NOTE WATER DEPTH STICKERS MUST FACE OUT ON FRONT AND REAR OF LIFT. 110-00000-00 (x4) SAND PAD WELDMENT...
  • Page 12 NOTE BUTT CORNER POST TAB UP TO FRAME BEAM CLAMP...
  • Page 13 NOTE THIS TORQUE SPECIFICATION APPLIES TO THE 3” BOLT (ABOVE 4” BOLT) BOLTS ON POST A AND POST D ONLY.
  • Page 14 Contents for Step 3 002-00002-00 BRACKET, UPPER V-BRACE – 4” 002-00001-00 BRACKET, UPPER LFTG/V-BRACE 002-04064-00 (X2) CLAMP, V-BRACE (L) V-BRACE CLAMP 14.5” (FEMALE) 002-04066-00 (x2) V-BRACE CLAMP CLAMP, V-BRACE (R) 14.5” (MALE) (4) 3/8 x 3 1/2” SS Bolts Torque to 35 ft. lbs. (4) 3/8 x 3”...
  • Page 15 Assembly of Step 3 002-04064-00 CLAMP, V-BRACE (L) 14.5” 002-04066-00 CLAMP, V- BRACE (R) 14.5” NOTE MARK CENTERLINE AS SHOWN NOTE MARK CENTERLINE AS SHOWN 002-04066-00 002-04064-00 V-BRACE CLAMP V-BRACE CLAMP (R) 14.5” (L) 14.5” INSIDE OF LIFT...
  • Page 17 Contents for Step 4 NOTE (1) ½” Nut and (1) ½” Bolt are used in Step (1) 1/2 x 1 3/4” ss Bolt Torque to 50 ft. lbs. 5-E to attach cradle clamp to cradle beam (8) 1/2” Alum. Nuts and cradle u-clamp.
  • Page 18 Assembly of Step 4 NOTE LIFTING CABLE IN UPWARD DIRECTION IS PLACED ON POST B AND POST C. NOTE LIFTING CABLE IN DOWNWARD DIRECTION IS PLACED ON POST A AND POST D.
  • Page 20 NOTE BETWEEN UHMW STRIP CORNER POST...
  • Page 21 Contents for Step 5 NOTE Recall (2) ½” Nylock Nuts and (2) ½” Washers from Step 1. Torque to 60 Ft. Lbs. NOTE Recall (1) ½” Nut and (1) ½” Bolt (4) 1/2 x 2” ss Bolts Torque to 45 ft. lbs. from Step 4.
  • Page 22 Assembly of Step 5 NOTE Recall (2) ½” Nylock Nuts and (2) ½” Washers from Step 1.
  • Page 23 NOTE Recall (1) ½” Nut and (1) ½” Bolt from Step 4. Torque to 45 Ft-Lbs.
  • Page 24 V3600 BILL OF MATERIALS 511-36080-00 Lift Frame, V3600 119" PART NUMBER DESCRIPTION 001-26911-00 Pin, Dowel 3/16" x 7/8" 001-26969-00 Pin, Groove 5/32"x 1.125" Zinc 001-70115-00 HHCS, 3/8-16 x 3" 18-8 ss 001-70117-00 HHCS, 3/8-16 x 3 1/2" 18-8 ss 001-70207-00 HHCS, 1/2-13 x 1 1/4"...
  • Page 25 V3600 BILL OF MATERIALS PART NUMBER DESCRIPTION 002-04022-01 V-Brace 76.938" x .125" 002-04031-00 Guide, Cradle (Ext.) - 4.25" 002-04040-00 Beam, Side Cradle 109" 002-04064-00 Clamp, Lower V-Brace (L) 14.5" 002-04066-00 Clamp, Lower V-Brace (R) 14.5" 002-04140-00 Holder, Cable 002-04314-00 Bracket, Level Leg - 2.563" 006-10202-00 Pad, Wear - 1/2 x 7/8"...
  • Page 26 SUB-ASSEMBLIES PART NUMBER DESCRIPTION 111-00045-01 Ass'y, Side Cradle (A) V Lifts 001-70313-00 HHCS, 5/8-11 x 2 1/2 ss 18-8 001-70816-00 Nut, Jam 5/8-11 ss 18-8 002-04040-00 Beam, Side Cradle 109" 006-10206-00 Spacer, Side Cradle Sheave 006-11001-00 UHMW, 1/4" x 1/2" x 5" 007-07700-00 Spacer, 1.297"...
  • Page 27 SUB-ASSEMBLIES PART NUMBER DESCRIPTION 63** 111-00398-02 Ass'y, Corner Post "A" .125-74" 001-70861-00 Nut, Nylock 5/16-18 - alum 001-74402-00 CB, 5/16-18 x 3 1/2 ss 18-8 002-00048-01 Post, Corner .125" WALL - 74" 111-00234-01 Ass'y, Easy-Level Inner Leg V2000-VSD5K (Pont) PART NUMBER DESCRIPTION 64** 111-00399-02...
  • Page 28 SUB-ASSEMBLIES PART NUMBER DESCRIPTION 111-00411-01 Ass'y, Canopy/Winch Insert 001-70207-00 HHCS, 1/2-13 x 1 1/4" 18-8 ss 001-71021-00 FLAT WASHER, 1/2" 18-8 SS 001-76072-00 NUT, NYLOCK 1/2-13 ALUM. 006-15022-00 Cap, Vinyl - Canopy/Winch Insert 911-14201-00 Canopy/Winch Insert, 38" PART NUMBER DESCRIPTION 111-00469-00 Ass'y, End Cradle 126.375"...
  • Page 29 NOTE: V-3600 Frame Exploded View A ADDITIONAL VIEWS ON LIFT P/N 511-36080-00 FOLLOWING PAGES VIEW 4 VIEW 3 VIEW 2 VIEW 5 VIEW 6 VIEW 7 VIEW 1...
  • Page 30 V-3600 Frame Exploded Views 1 & 2 LIFT P/N 511-36080-00 VIEW 1 NOTE (VIEW 2): CORNER “C” IS SHOWN. BOTTOM BOLT (MARKED) IS REPLACED WITH ITEM 12 AT CORNER “D”. FOR CORNER “B”, SAME ITEMS ARE USED AS SHOWN IN VIEW 2.
  • Page 31 V-3600 Frame Exploded Views 3-6 LIFT P/N 511-36080-00 VIEW 4 VIEW 3 NOTE: VIEW 5 VIEW 6 CORNER “B” IS SHOWN. CORNER “C” USES SAME ITEMS.
  • Page 32 V-3600 Frame Exploded View 7 LIFT P/N 511-36080-00 CORNER POSTS “A”, “B”, “C”, “D”...
  • Page 33 NOTE: V-3600 Frame Exploded View B ADDITIONAL VIEWS ON LIFT P/N 511-36080-00 FOLLOWING PAGE VIEW 9 VIEW 8...
  • Page 34 V-3600 Frame Exploded Views 8 & 9 LIFT P/N 511-36080-00 VIEW 8 NOTE (VIEW 9): CORNER “D” IS SHOWN. FOR CORNERS “B” & “C”, ITEMS 13, 15, 52 & 59 ARE EXEMPT (QUANTITY OF 1 PER CORNER). ITEM 32/68 IS REPLACED WITH ITEM 70.
  • Page 35 NOTES...
