- Page 2 Instruction Manual Viking Power 16 12/24 V DC Read and understand this manual prior to operating or servicing this product. IB-114 R02 (1011)
-
Page 3: Table Of Contents
Per ottenere maggiori informazioni sulle nostre sedi nel mondo, autorizzazioni, certificazioni, e rappresentanti locali, potete visitare il sito www.johnson-pump.com. La SPX Corporation si riserva il diritto di apportare cambiamenti ai propri design e materiali senza preavviso o vincolo. Le caratteristiche del design, i materiali di costruzione e i dati dimensionali, così... -
Page 4: English

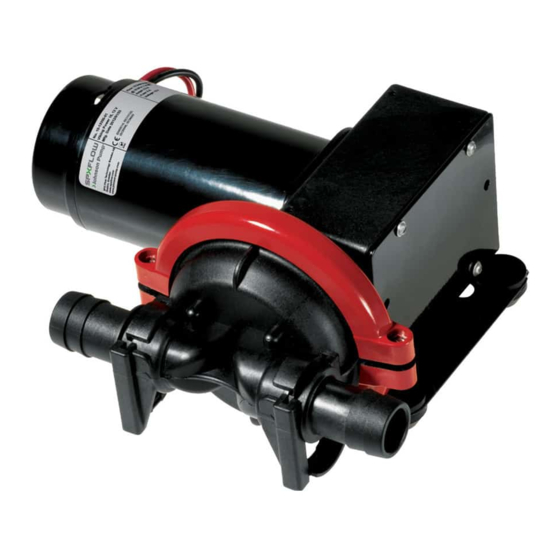

> English Viking Power 16 mounted to DC motor 12/24 V Please follow all instructions before attempting an installation. Typical applications Technical description The Viking Power 16 is a single diaphragm DC- Body: Nylon pump. This pump is the ideal choice for shower Valves: Nitrile drain, waste water and bilge pumping. - Page 5 > English Note: Before installation with electrical con- nstallation and maintenance trol systems, check that equipment to be Installation used is of sufficient rated capacity to accept Locate the pump in a dry location. amperage draw of motor. Low voltage will • If the pump is mounted vertically, the motor must cause motor to overheat.
- Page 6 > English Change of pump housing Winterizing Drain the pump from water by pumping it until it 1. Remove the two screws that hold the clamps, and remove the two clamps primes air and there is no fluid coming from the outlet 2.
-
Page 7: Français
> Français Viking Power 16 monté sur moteur 12/4 V CC Veuillez lire attentivement le manuel avant d’entreprendre l’installation. Applications standard Description technique Nylon Corps : La Viking Power 16 est une pompe CC à membra- Nitrile Clapets : ne unique. Ce produit est la solution idéale comme Nitrile renforcé... - Page 8 > Français Données de pression et de capacité Raccordement électrique La pompe doit être installée en conformité à la Pression Débit Consommation électrique(A) norme ISO 10133 (Petit bateau – Réseaux électri- Bars kPa Psi L/min USGPM 12 V 24 V ques –...
- Page 9 > Français Schéma de câblage Consignes de réparation Maxi. 0,2 m Remplacement de la membrane 1. Déposez les deux vis de fixation des colliers, et Rouge déposez les deux colliers Fusible – 2. Déposez le corps de pompe Switch principal 3.
- Page 10 > Français Diagramme de dépannage rapide Symptôme Cause Solution 1. La pompe ne fonctionne pas. 1.1 Disjoncteur thermique 1.1.1 Vérifiez le fusible. Si le moteur est ouvert ou fusible sauté. en surchauffe, laissez-le refroidir avant de redémarrer la pompe. 1.2 Connexion électrique ou 1.2.1 Vérifiez la batterie ou l’alimenta- alimentation défectueuse tion, l’interrupteur général et le...
-
Page 11: Parts List
Reservdelslista Liste des pièces Parts list Lista de piezas Teilliste Elenco delle parti... -
Page 12: Accessories
Tillbehör Accessoires Accessories Accesorios Zubehör Accesori Snabbanslutningar Raccords à déconnexion rapide Quick disconnect fittings Racores de abertura rápida Schnellwechselarmaturen Raccordi a scollegamento rapido 09-47491 ¾" Hose barb straight ¾"-Schlauchbefestigung, gerade Raccord cannelé droit pour tuyau ¾" (19 mm) Entronque recto ¾" (19 mm) Flessibili diritti con estremità a gancio da ¾" 09-47492 1" Hose barb straight 1"-Schlauchbefestigung, gerade Raccord cannelé droit pour tuyau 1"(25 mm) Entronque recto 1" (25 mm) Flessibili diritti con estremità a gancio da 1" 09-47503 ¾" Hose barb 90° ¾"-Schlauchbefestigung, 90° Raccord cannelé 90° pour tuyau ¾" (19 mm) Entronque codo 90° ¾" (19 mm) Flessibili a 90°con estremità a gancio da ¾"... -
Page 13: Dimensions
Dimensioner Dimensions Dimensions Dimensiones Abmessungen Dimensioni 163 mm 90 mm 90 mm 64 mm 144 mm 186 mm 226 mm... - Page 14 For more information about our worldwide locations, approvals, certifications, and local representatives, please visit www.johnson-pump.com and www.spxft.com. SPX Corporation reserves the right to incorporate our latest design and material changes without notice or obligation. Design features, materials of construction and dimensional data, as described in this bulletin, are provided for your information only and should not be relied upon unless confirmed in writing.
