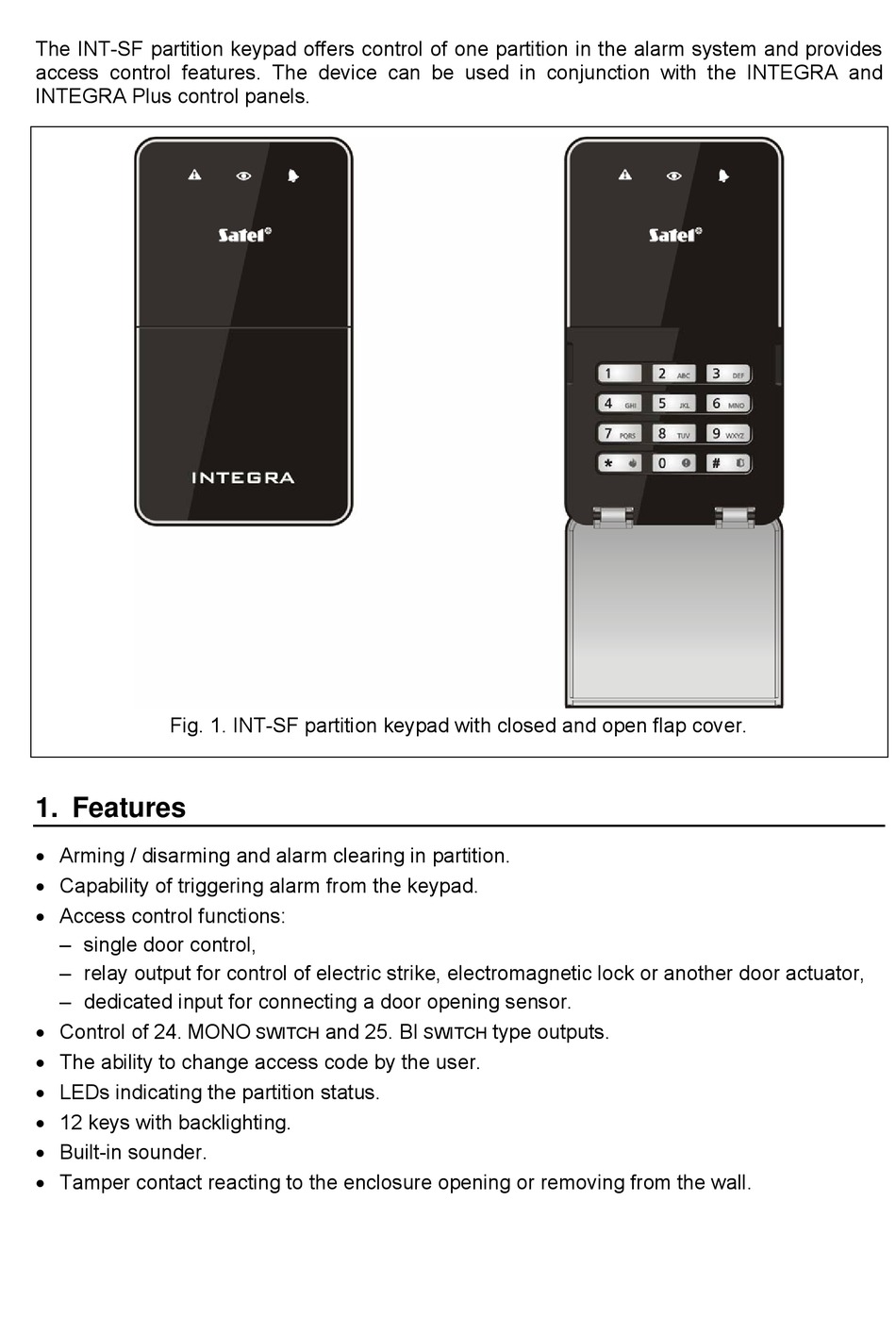

Satel INT-SF Manual page 3

The INT-SF partition keypad offers control of one partition in the alarm system and provides
access control features. The device can be used in conjunction with the INTEGRA and
INTEGRA Plus control panels.
Fig. 1. INT-SF partition keypad with closed and open flap cover.
1. Features
 Arming / disarming and alarm clearing in partition.
 Capability of triggering alarm from the keypad.
 Access control functions:
– single door control,
– relay output for control of electric strike, electromagnetic lock or another door actuator,
– dedicated input for connecting a door opening sensor.
 Control of 24. MONO
 The ability to change access code by the user.
 LEDs indicating the partition status.
 12 keys with backlighting.
 Built-in sounder.
 Tamper contact reacting to the enclosure opening or removing from the wall.
and 25. BI
SWITCH SWITCH
type outputs.
