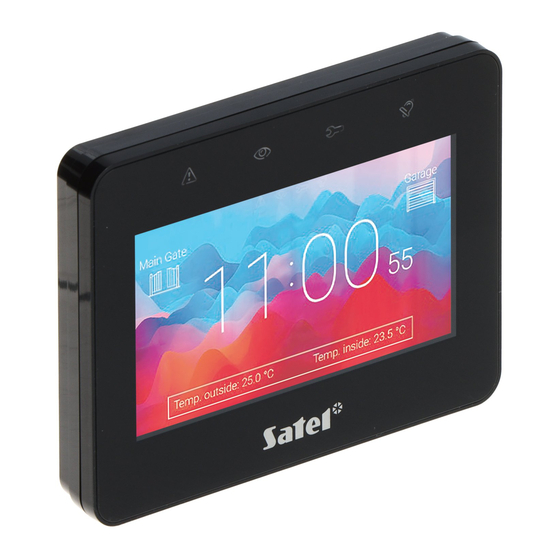

- Page 1 Keypad INT-TSG2R Firmware version 2.01 QUICK USER MANUAL int-tsg2r_us_en 03/24 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. Hereby, SATEL sp. z o.o. declares that the radio equipment type INT-TSG2R is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.satel.pl/ce...
-
Page 3: Table Of Contents
CONTENTS 1. LED indicators ........................2 2. Using the touch screen ...................... 2 3. Using the MIFARE proximity card [INTEGRA] ..............5 ® 4. Screensaver ........................5 Slideshow ........................6 Trigger the panic alarm ....................6 5. User screens ........................6 6. -
Page 4: Led Indicators
In order to control the alarm system, you can use: • user screens and additional screens created for you by the installer, • user menu created by SATEL. Use the gestures described below. - Page 5 SATEL INT-TSG2R Tap on an item on the screen. Tap and hold Tap on an item on the screen and hold for 3 seconds. Swipe up / down Tap the screen and slide your finger up or down to: • swipe the screen up / down (move between the screensaver / user screen / user menu home screen), •...
- Page 6 INT-TSG2R SATEL Swipe right / left Tap the screen and slide your finger right or left to swipe the screen right / left (go to the previous / next screen). When the screensaver is active, swipe right / left to start / end the slideshow.
-
Page 7: Using The Mifare Proximity Card [Integra]
SATEL INT-TSG2R 3. Using the MIFARE proximity card [INTEGRA] ® The INTEGRA alarm system can be operated using the MIFARE proximity cards. ® The keypad distinguishes between presenting and holding the card (the card must be presented to the keypad and held for 3 seconds). Ask the installer what function is started when you present the card and what function is started when you hold the card. -
Page 8: Slideshow
INT-TSG2R SATEL 4.1 Slideshow If the screensaver has been disabled by the installer, the slideshow is not available. The keypad can run a slideshow of images, if the installer installed in the keypad a memory card on which the images had been saved. -
Page 9: Additional Screens
For this reason, the additional screens may be used to display site plans. If pictures other than the ones offered by SATEL are to be displayed, the installer must save them on a memory card and install the card in the keypad. -
Page 10: Status Bar
Partition state – the widget displays the partition status represented by icons. Zone state – the widget displays the zone status represented by either: – icons selected by SATEL (indicator) – different statuses are displayed, – text messages (text) – messages inform only about normal and violated states, –... -
Page 11: On-Screen Keypad
SATEL INT-TSG2R Macro – the icon for the widget is selected by the installer. Tap the widget to run a macro command. The macro command is a sequence of actions to be performed by the control panel. Macro commands are created by the installer. -
Page 12: User Menu
INT-TSG2R SATEL Enter the code using the number keys and tap . If you made a mistake when entering the code, tap and re-enter the code (if you fail to enter the valid code within one minute, it will be treated as if you entered an invalid code). -
Page 13: Versa / Perfecta 64 M System
SATEL INT-TSG2R tap to go to the “Outputs” screen. tap to go to the “Troubles” screen. The function is available when a trouble is signaled by the alarm system. tap to go to the “Events” screen. tap to go to the “Users” screen. -
Page 14: Qwerty Keyboard
INT-TSG2R SATEL tap to open the terminal and access other user functions and service functions. tap to go to the “Keypad” screen. If the icon is greyed out, the function is unavailable. icon is displayed in the top right corner of the screen. Tap it to exit the user menu. - Page 15 SATEL INT-TSG2R Fig. 8. Terminal in the INTEGRA system. Fig. 9. Terminal in the VERSA / PERFECTA 64 M system.
