Development System EasydsPIC6

9.0. Voltage Reference Source

The EasydsPIC6 development system provides an MCP1541 circuit which generates the voltage reference used for A/D conversion.
The value of the voltage reference is 4.096V. This voltage is suppled to the microcontroller via the RB0 pin. For the RB0 pin to be fed
with the reference voltage, it is necessary to set switch 7 on the DIP switch SW9 to ON position.

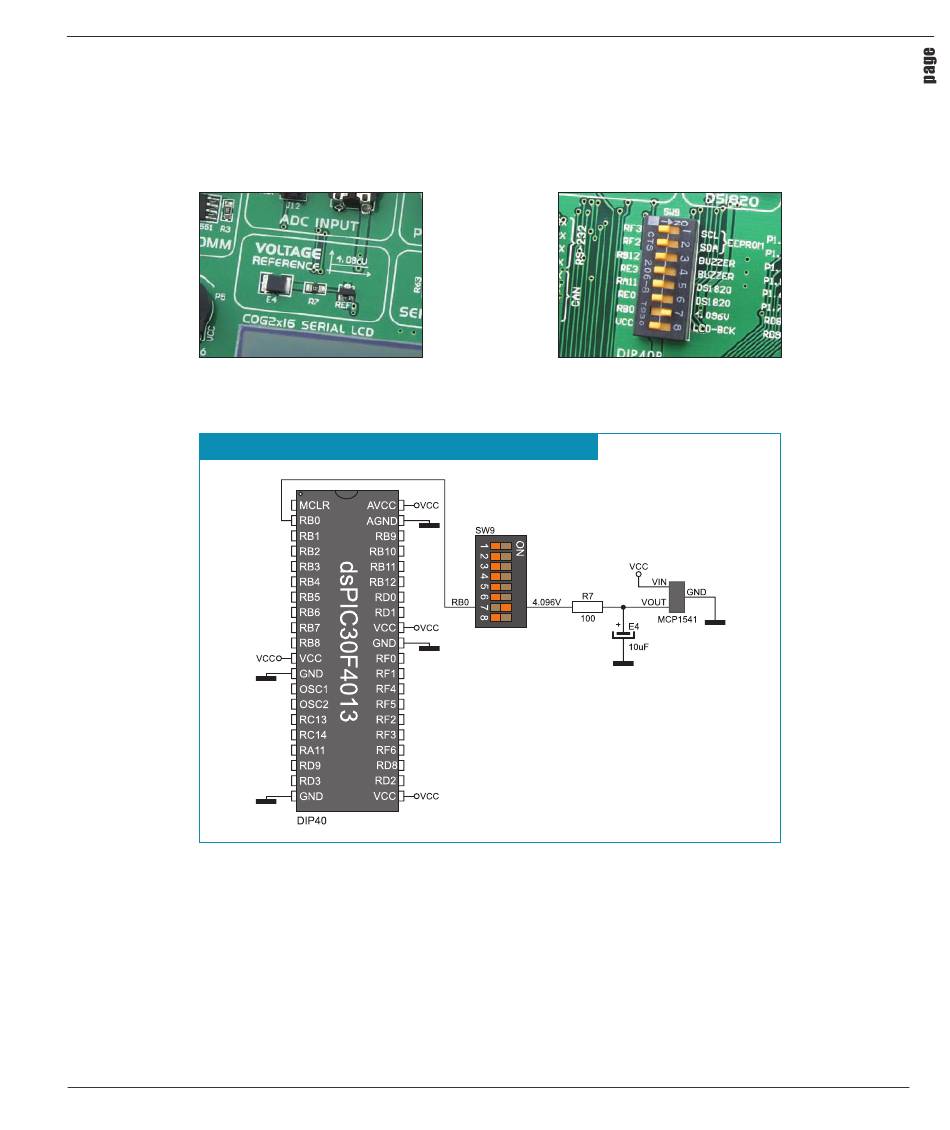

Figure 9-1: Voltage reference source
4.096V voltage reference is used under A/D conversion
Figure 9-3: Voltage reference connection schematic
Figure 9-2: Microcontroller pin RB0 is
fed with voltage reference
