Introduction to EasydsPIC6 Development System

development system provides a development environment for experimenting with dsPIC ® microcontrollers from
The EasydsPIC6
™
Microchip ® . The system includes an on-board programmer with mikroICD providing an interface between the microcontroller and a PC.
You are simply expected to write a program in one of the dsPIC compilers, generate a .hex file and program your microcontroller using
the on-board dsPICprog
etc, are provided on the board and allow you to easily simulate the operation of the target device.
MikroElektronika
™ programmer. Numerous modules, such as 128x64 graphic LCD, alphanumeric 2x16 LCD, port expander
The dsPICFLASH ™ program for programming provides a complete list of all
supported microcontrollers. The latest version of this program with updated
list of supported microcontrollers can be downloaded from our website at
www.mikroe.com
Package contains:
Development system: EasydsPIC6
CD: product CD with relevant software
Cables: USBcable
Documentation: Manuals for EasydsPIC6, dsPICprog and mikroICD,
quick guide for installing USB drivers, electrical
schematic of the system
System specification:
Power Supply: over an AC/DC connector (7-23V AC or 9-32V DC); or
over a USB cable for programming (5V DC)
Power consumption:~40mA in idle state when all on-board modules are off
Dimension: 26,5 x 22cm (10,4 x 8,6inch)
Weight: ~416g (0.91lbs)

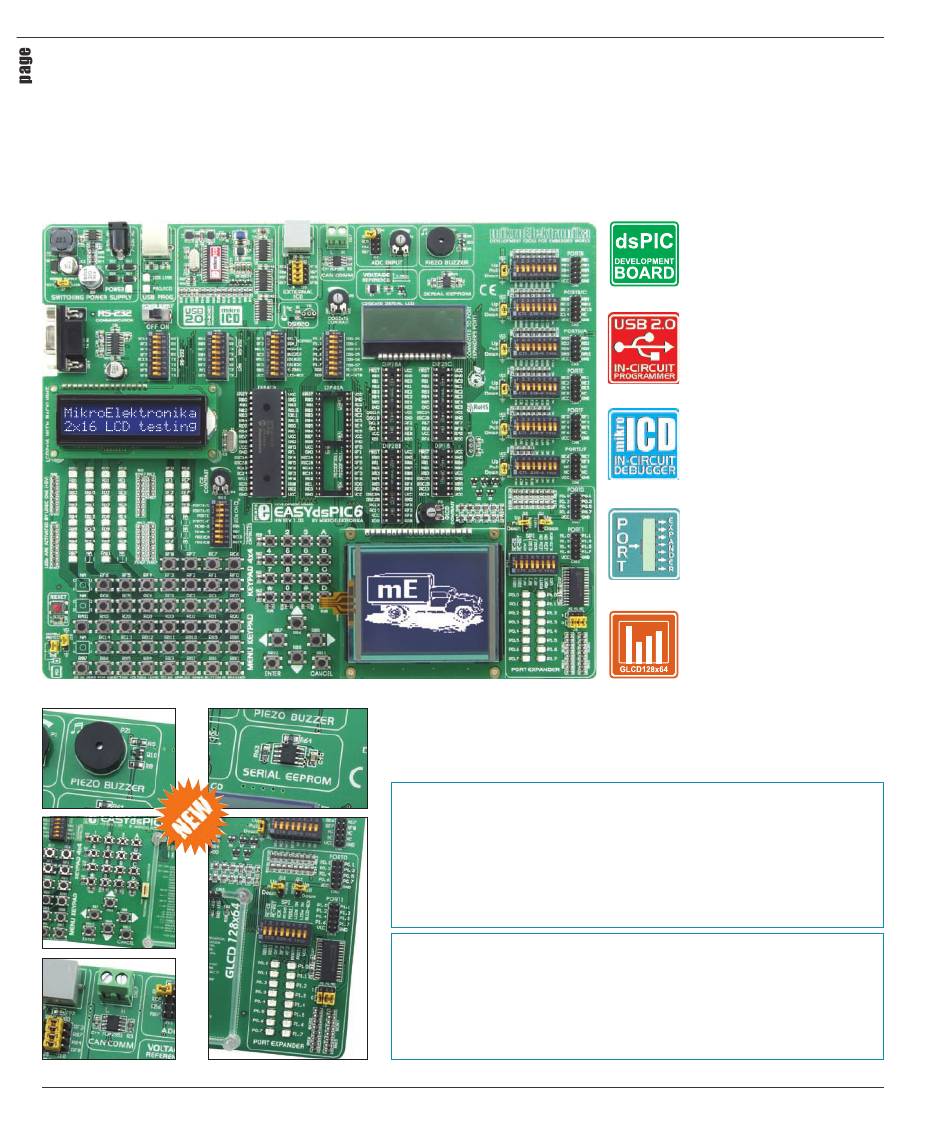

Development System EasydsPIC6
Full-featured development
system for dsPIC
microcontroller based devices
On-board USB 2.0
programmer
In-Circuit Debugger for real
time debugging at hardware
level
Port expander provides an
easy I/O expansion by 2
additional ports
Graphic LCD with backlight
