Bartell Innovatech Terminator Infinity 2.0 Manual page 32

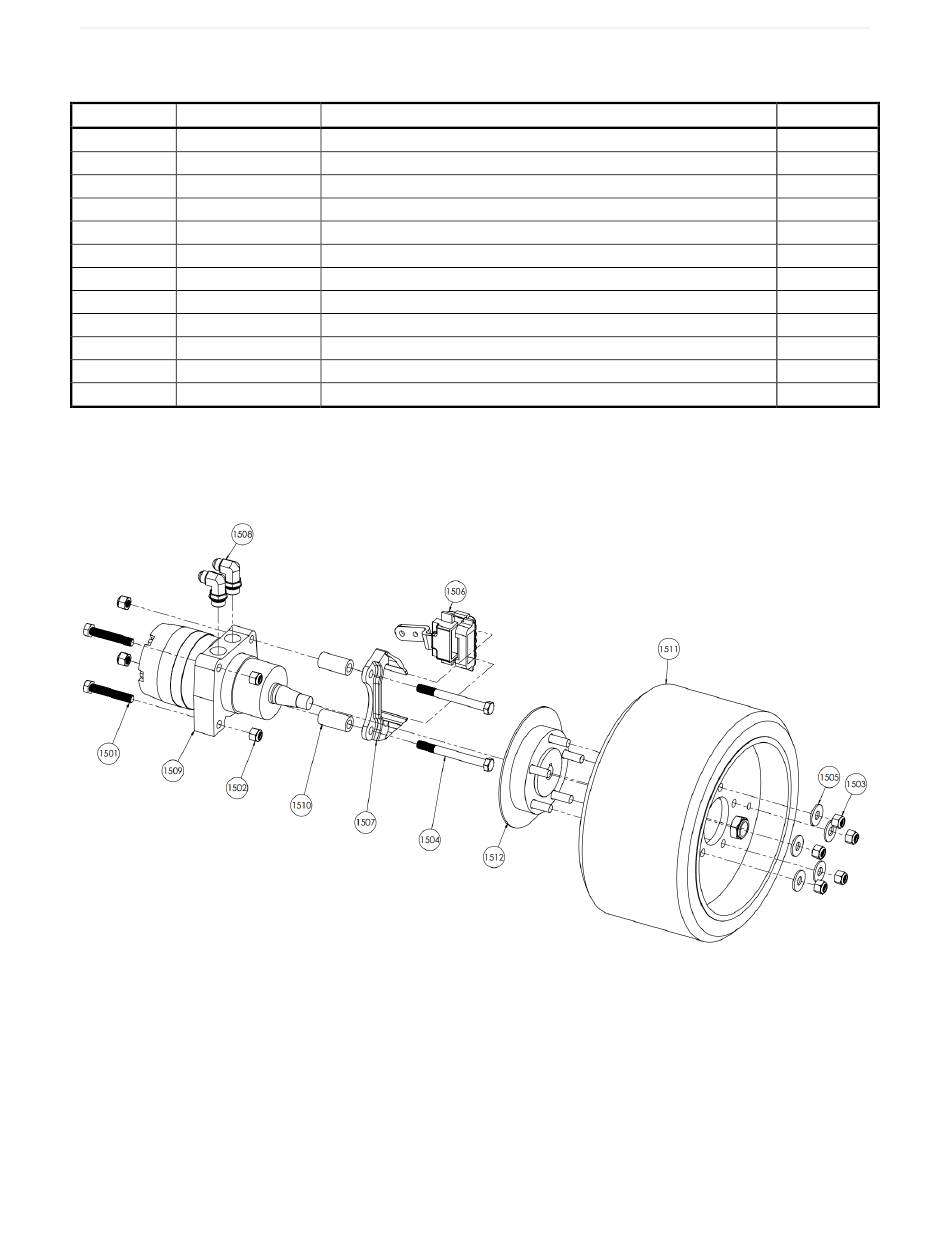

Infinity Left Wheel Assembly - Part # 96-0381
Item No. Part Number
1501 11-0013
1502 11-0028
1503 11-0029
1504 11-0228
1505 11-0230
1506 13-0020
1507 13-0022
1508 31-0053
1509 33-0002
1510 51-0491
1511 53-0208
1512 70-0016
Description
Hex Head Cap Screw, 1/2"-13 x 3"
Nyloc Nut, 1/2"-13
Nyloc Nut, 1/2"-20
Hex Head Cap Screw, 1/2"-13 x 5"
Flat Washer, 1/2"
Left Brake Caliper
Brake Mounting Bracket
Hydraulic Fitting, 90 deg 8 JIC – 10 SAE
Left Wheel Motor
Brake Spacer Standoff
Wheel and Tire Assembly
Wheel Hub with Brake Disc
