Bartell Innovatech Terminator Infinity 2.0 Manual page 20

Item No. Part Number
301 12-0018-06
302 12-0018-08
303 12-0026
304 12-0032-25
305 12-0032-30
306 12-0035-06
307 12-0035-08
308 12-0043-16
309 12-0051
310 12-0053
311 13-0385
312 23-0157
313 24-0231
314 35-0059
315 53-0427
316 53-0429
317 53-0430
318 81-0671
319 96-0384
320 96-0385

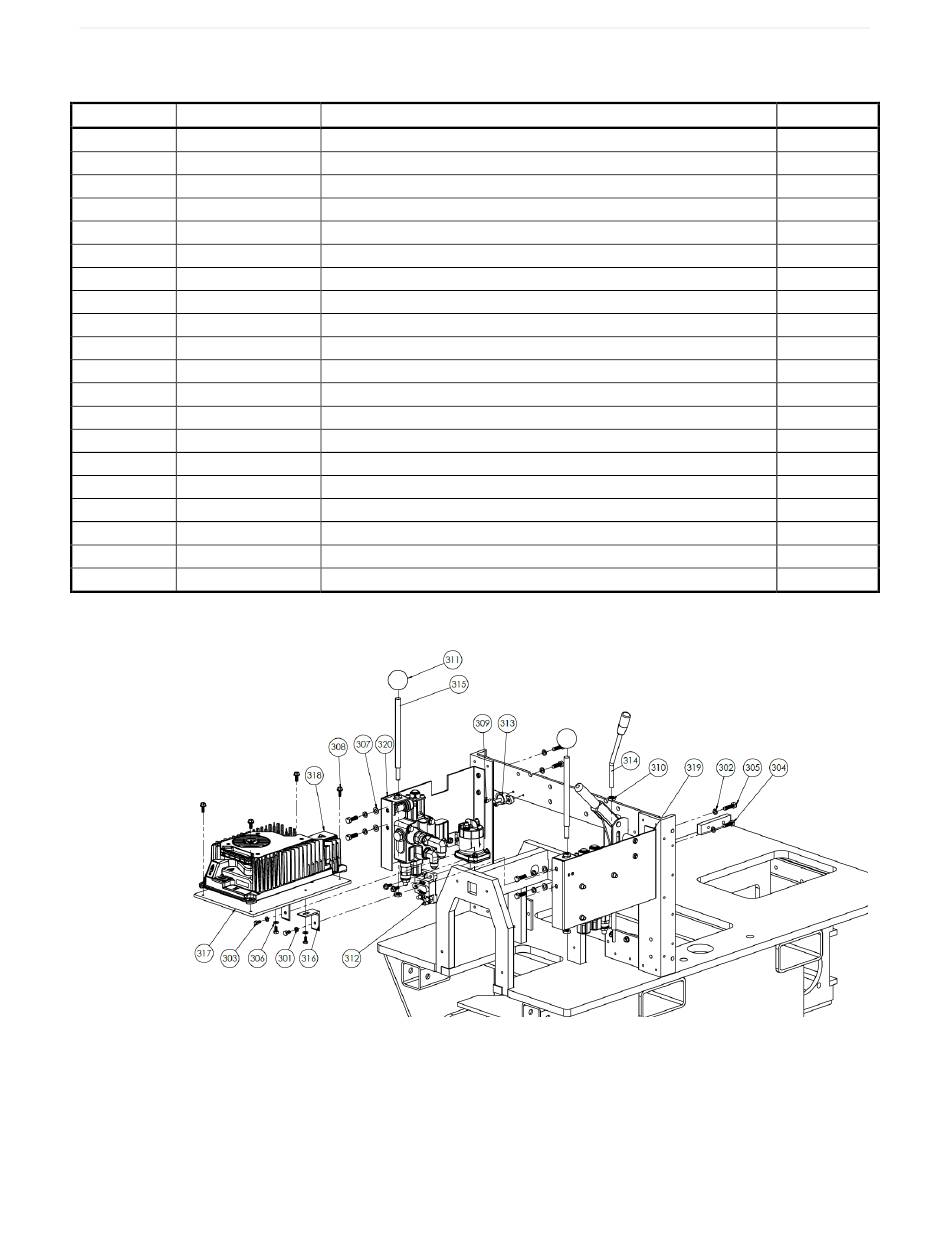

Front Interior Breakdown
Description
Lock Washer, M6
Lock Washer, M8
Hex Head Cap Screw, M6-1.0 x 12mm
Hex Head Cap Screw, M8-1.25 x 25mm
Hex Head Cap Screw, M8-1.25 x 30mm
Flat Washer, M6
Flat Washer, M8
Serrated Flange Cap Screw, M6-1.0 x 16mm
Socket Head Cap Screw, M5-0.8 x 16mm
Hex Jam Nut, M10-1.5
Infinity Drive Lever Knob, 1/2"-13, 1 7/8" dia.
Circuit Breaker, 80A 48V
Junction Stud
Infinity Jaw Lever
Infinity Drive Lever
Infinity Charger Bracket
Infinity Charger Mount
Infinity Primary On-board Charger
Infinity Controls Assembly (L)
Infinity Controls Assembly (R)
P a g e
OIPB-I01029-Infinity2.0_v1.2
| 20
Qty.
2
8
4
6
2
2
4
6
2
5
2
1
1
1
2
2
1
1
1
1
