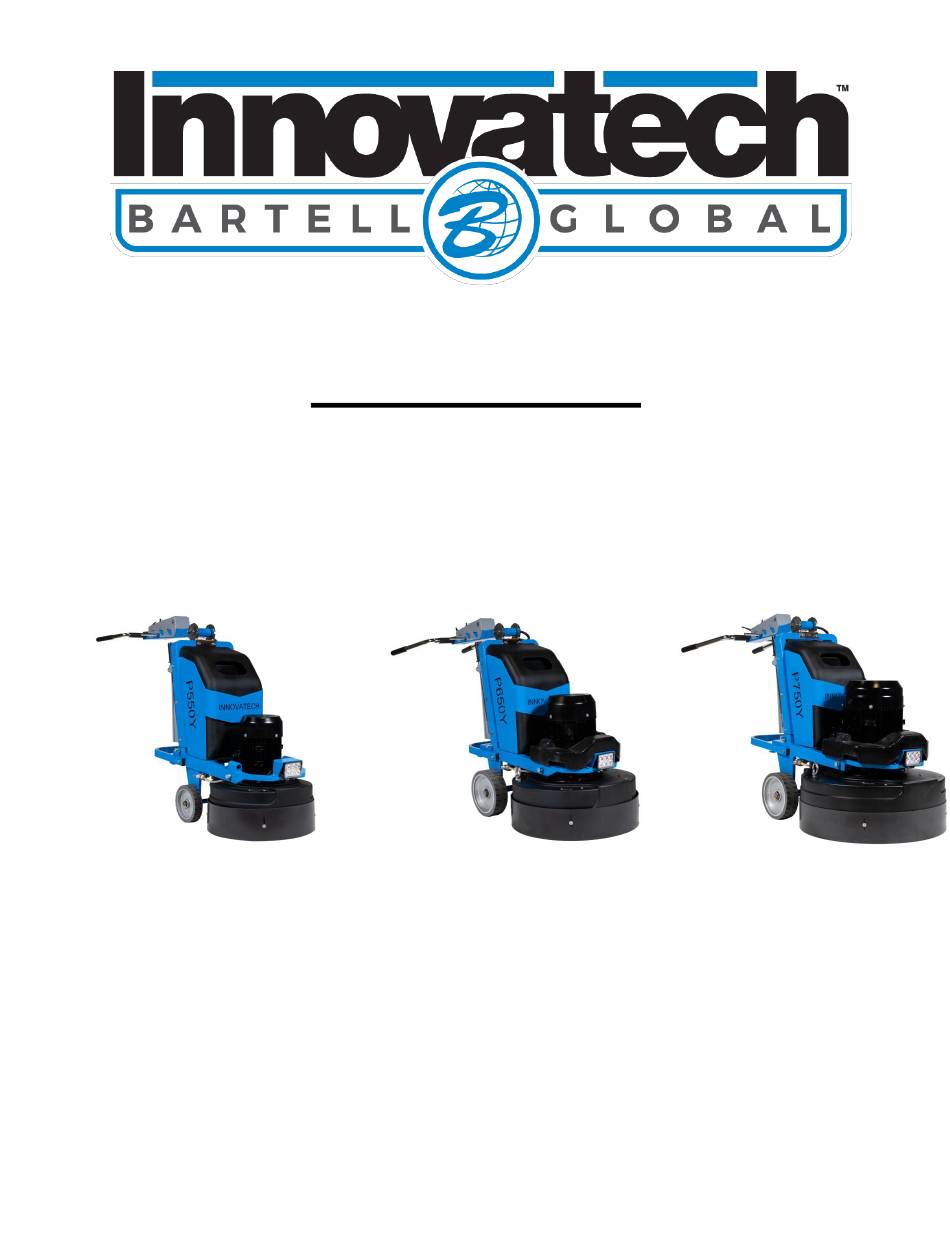

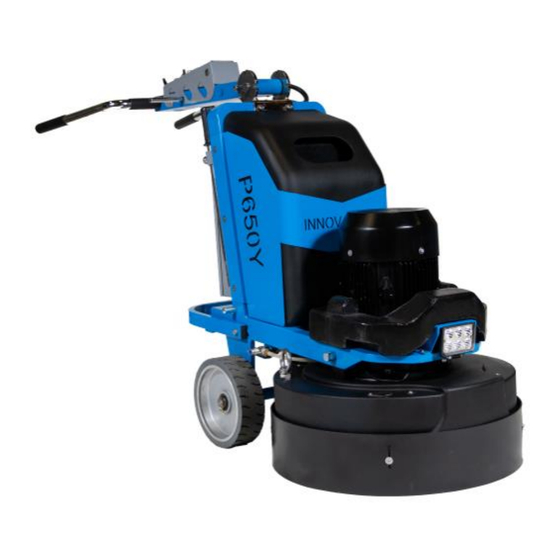

- Page 1 INNOVATECH PRODUCTS & EQUIPMENT. 4701 Allmond Ave, Louisville, KY 40209, USA Telephone: 1-425-405-9100 Floor Grinders P550Y / P650Y / P750Y Owner’s and Parts Manual 0IPB-I0XXXX-YGRINDERS_V0.0 12/21/18...
- Page 2 No part of this work may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or by any information storage or retrieval system without the prior written permission of Bartell Morrison Inc. unless such copying is permitted by federal copyright laws.
- Page 3 Y Grinder Owner’s Manual SAFETY PRECAUTIONS DANGER EXPLOSION HAZARD Never operate the machine in an explosive atmosphere, near combustible materials, or where ventilation does not clear exhaust fumes. WARNING BURN HAZARD Never come into contact with the engine or muffler when engine is operating or shortly after it is turned off.
-
Page 4: Table Of Contents
Y Grinder Owner’s Manual TABLE OF CONTENTS ABOUT THIS MANUAL IMPORTANT SAFETY INSTRUCTIONS AFETY UIDE RECAUTIONS TECHNICAL SPECIFICATIONS STARTUP PREPARATION OPERATING INSTRUCTIONS MAINTENANCE TROUBLESHOOTING WARRANTY DECLARATION OF CONFORMITY 0IPB-I02003-YGRINDERS_V0.0 12/21/18... -
Page 5: About This Manual
Y Grinder Owner’s Manual 1. About This Manual This Manual contains the information and procedures to assist you to operate and maintain the P550Y, P650Y and P750Y floor grinder safely and correctly. Read this Manual before you operate or service the equipment. If you need additional information or assistance, please get in touch with our Customer Service Department: Innovatech Products &... -
Page 6: Technical Specifications
Y Grinder Owner’s Manual 3. Technical Specifications Model P550Y P650Y P750Y Voltage 220V 220V 380V Motor 5HP, 3.7Kw 10HP 7.5Kw 15HP 11.2Kw Current (A) 17.6 22.3 Phase 1-Phase 1-Phase 3-Phase Inverter 5HP, 3.7Kw 15HP, 11.2Kw 15HP, 11.2Kw Frequency 50/60HZ 50/60HZ 50/60HZ Twist Lock Plug 30Amp NEMA L6-30P... -
Page 7: Operating Instructions
Y Grinder Owner’s Manual 5. Operating Instructions Before starting: 1. Ensure the power switch is in the off position. 2. Check the surrounding area for any loose material including bolts/screws/nails that could get caught in the machine. 3. Lean the machine backwards until it is safely resting on the ground to attach the grinding tools. - Page 8 Y Grinder Owner’s Manual Low voltage Turn off power, wait 3 min High voltage Turn off power, wait 3 min 0IPB-I02003-YGRINDERS_V0.0 12/21/18...
- Page 9 Y Grinder Owner’s Manual 01. P550Y Grinder Assembly Item No. Part Number Description Qty. 832-0022 P550Y Plastic Shroud 832-0033 Steel Coupler 832-0031 P550Y Adapter Plate 832-0010 P550Y Wheel 832-0011 Water Valve 832-0013 P550Y Inverter 832-0009 P550Y Handle Adjustment Screw 832-0025 P550Y Motor, 3.7 kW 832-0037 P550Y Metal Cage...
- Page 10 Y Grinder Owner’s Manual 02.P550Y Control Box Item No. Part Number Description Qty. 832-0028 Operator Handle 550Y 832--0004 Speed Button 832-0002 Instruction Button- Set of 2- Red/Green 832-0003 Reversible Button 832-0016 Inverter Display 832-0001 Without Inverter Display 0IPB-I02003-YGRINDERS_V0.0 12/21/18...
- Page 11 Y Grinder Owner’s Manual 01. P650Y Grinder Assembly Item No. Part Number Description Qty. 832-0023 P650Y Plastic Shroud 832-0033 Steel Coupler 832-0032 P650Y Adapter Plate 832-0012 P650Y Wheel 832-0011 Water Valve 832-0014 P650Y Inverter 832-0009 P650Y Handle Adjustment Screw 832-0026 P650Y Motor, 7.5 kW 832-0038 P650Y Metal Cage...
- Page 12 Y Grinder Owner’s Manual 02.P650Y Control Box Item No. Part Number Description Qty. 832-0029 Operator Handle 650Y 832--0004 Speed Button 832-0002 Instruction Button- Set of 2- Red/Green 832-0003 Reversible Button 832-0016 Inverter Display 832-0001 Without Inverter Display 0IPB-I02003-YGRINDERS_V0.0 12/21/18...
- Page 13 Y Grinder Owner’s Manual 01.P750Y Grinder Assembly Item No. Part Number Description Qty. 832-0024 P750Y Plastic Shroud 832-0033 Steel Coupler 832-0032 P750Y Adapter Plate 832-0012 P750Y Wheel 832-0011 Water Valve 832-0015 P750Y Inverter 832-0009 P750 Handle Adjustment Screw 832-0027 P750Y Motor, 11 kW 832-0039 P750Y Metal Cage 832-0021...
- Page 14 Y Grinder Owner’s Manual 02.P750Y Control Box Item No. Part Number Description Qty. 832-0030 Operator Handle 750Y 832--0004 Speed Button 832-0002 Instruction Button- Set of 2- Red/Green 832-0003 Reversible Button 832-0016 Inverter Display 832-0001 Without Inverter Display 0IPB-I02003-YGRINDERS_V0.0 12/21/18...
- Page 15 Y Grinder Owner’s Manual Wiring Diagram P550,P650 1PHASE Wiring Diagram P750 3PHASE 0IPB-I02003-YGRINDERS_V0.0 12/21/18...
- Page 16 Y Grinder Owner’s Manual This page is left blank intentionally. 0IPB-I02003-YGRINDERS_V0.0 12/21/18...
-
Page 17: Warranty
Y Grinder Owner’s Manual 8. Warranty Innovatech warrants to the original buyer, for a period of one (1) year or 300 operating hours (whichever comes first) from the date of delivery, that the Equipment is free from defects in materials and workmanship and that the Equipment conforms to the operating specifications supplied with the Equipment. -
Page 18: Declaration Of Conformity
Y Grinder Owner’s Manual DECLARATION OF CONFORMITY CERTIFICAT DE CONFORMITÉ / GELIJKVORMIGHEIDS CERTIFICAAT / DECLARACIÓN DE CONFORMIDAD / DECLARAÇÃO DE CONFORMIDADE / DICHIARAZIONE DI CONFORMITA Innovatech Products 4701 Allmond Ave Louisville, Kentucky, USA 40209 Tel: (425) 405-9100 Toll Free: (800) 267-6682 Declare under our sole responsibility that the product to which this declaration Fax: (425) 405-9108... - Page 19 Y Grinder Owner’s Manual Noise Level Pressure level Vibration level Puissance Pression Niveau de acoustique acoustique vibration Geluidniveau Geluidsdrukniveau Vibratieniveau Nivel Sonoro Nivel Acustico Nivel de Vibracion Nivel del Ruido Pressão Acústica Nivel de Vibração Potenza Pressione Acustica Livello di Vibrazione Lwa (dB) Lpa (Db) a hv (m/s 2 )
- Page 20 Bartell Morrison Inc. Bartell Morrison (USA) LLC 375 Annagem Boulevard 200 Commerce Drive, Unit A Mississauga, Ontario, Canada Freehold, New Jersey, USA L5T 3A7 07728 Tel: 1-647-953-4100 Tel: 1-848-225-8100 Fax: 1-647-953-4101 Fax: 1-848-225-8101 Innovatech SPE International 4701 Allmond Ave Honeyholes Lane...
