Summary of Contents for Hermle OLEUM

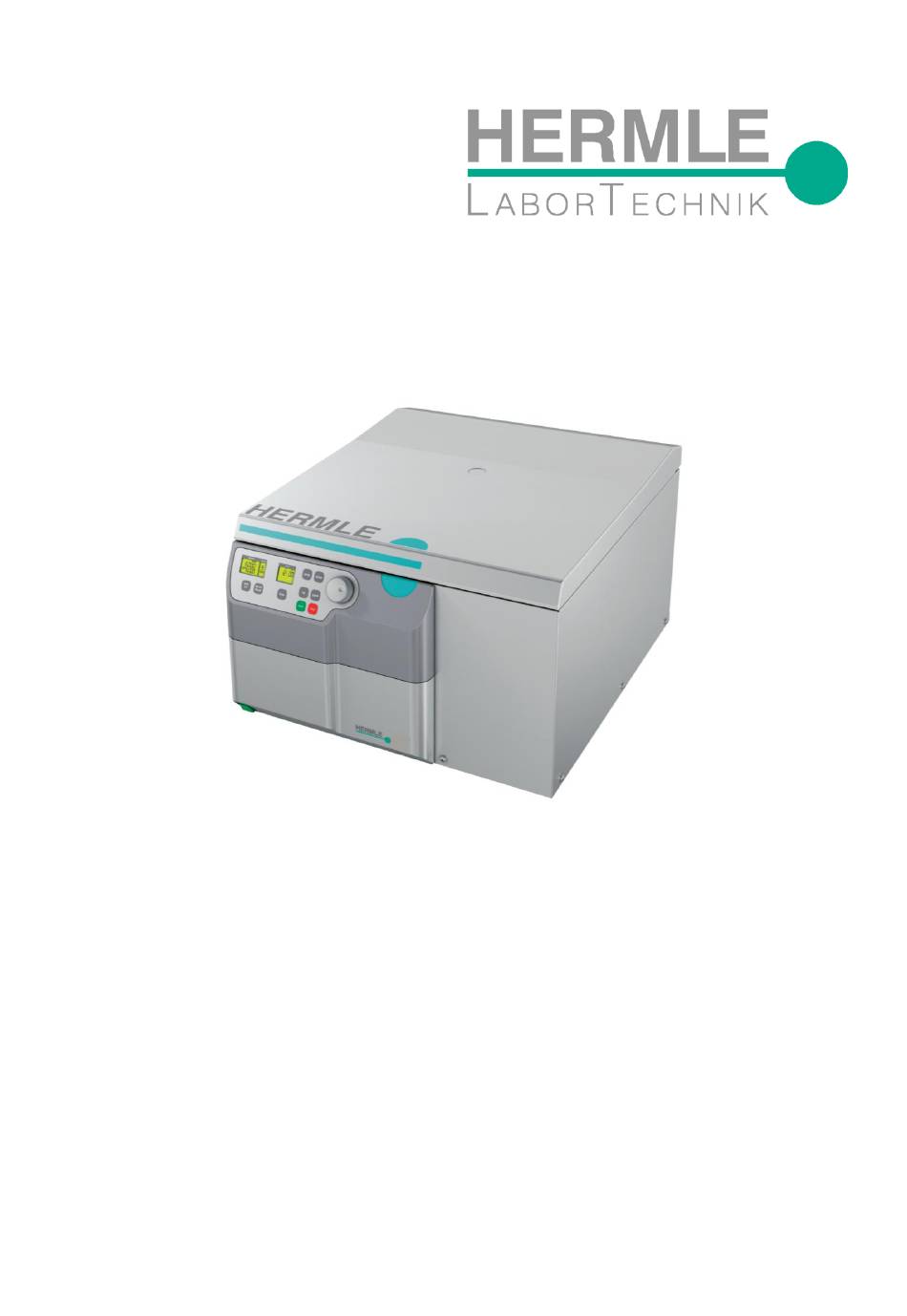

- Page 1 Operating Manual for Oil Test Centrifuge OLEUM © Hermle Labortechnik GmbH OLEUM_V1.19_eng...
-
Page 3: Table Of Contents
Pre-Selection of Running Time ........................17 2.3.3 Pre-Selection of Brake Intensity and Acceleration ..................17 Radius Correction ............................18 Program ................................19 2.5.1 Storage of Programs ............................. 19 2.5.2 Recall of Stored Programs ..........................20 © Hermle Labortechnik GmbH OLEUM_V1.19_eng... - Page 4 EG - Conformity Declaration ............................ II Table 1: Technical Data ............................III Table 2: Error Messages ............................IV Table 3: Radius Correction ............................V Table 4: Abbreviations ............................. V Redemption Form / Decontamination Certificate ....................VIII OLEUM_V1.19_eng © Hermle Labortechnik GmbH...
-
Page 5: Product Description

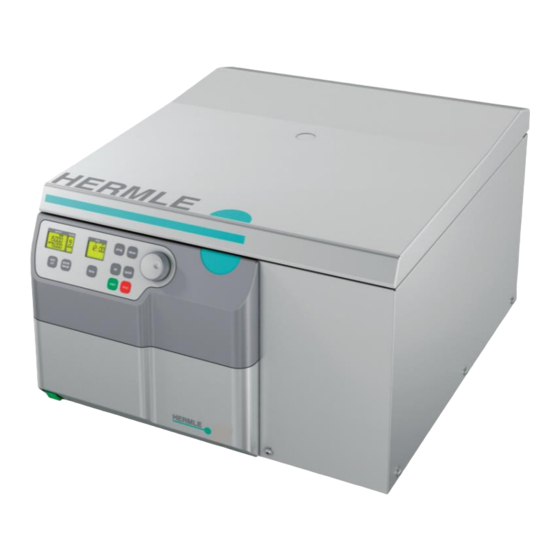

For any resulting damage, the company, Hermle Labortechnik, is not liable. 1.3 Brief Description The unit type OLEUM, is a non heated centrifuge. This model comes only with one voltage option of 230 V. The centrifuge can be used only with a swing-out rotor. -
Page 6: Operating And Display Elements
Run Parameters Power Switch Control Panel Display rpm/rcf Speed/ g-force accel/decel Acceleration / Deceleration Intensity time Centrifugation Time Lid Release quick Short Running start Start Centrifugation stop Stop Centrifugation prog Retrieving Programs store Program Store OLEUM_V1.19_eng © Hermle Labortechnik GmbH... -
Page 7: Lcd-Display
"rpm" "service" "rcf" h m s "accel" Indication: After switching on the centrifuge, the display, "rpm/rcf"(A-1) shows the loading status, the current software version and finally the model type (e.g. Z 36 HK). Figure 2 © Hermle Labortechnik GmbH OLEUM_V1.19_eng... -
Page 8: Signs And Indications Of The Centrifuge
Instructions for Disposal (see chapter 6.3, p 28) Direction of Rotation – clockwise rotation for the rotor drive Reference for Loading Rotors 1.6.2 Product Nameplate (Example) Company Address: Hermle Labortechnik GmbH, Siemensstr. 25, D-78564 Wehingen TYPE: Type Designation of the Product REF: Order No. of the Product... -
Page 9: Warning And Information Signs
EN 61010-2-020. • The HERMLE OLEUM is "non-explosion proof" and must not be operated in explosion- endangered areas or locations. Centrifugation of flammable, explosive, radioactive, or such substances, which chemically react with high energy, is strictly prohibited. If used in such environment, this is at the users own expense. -
Page 10: Following Rules Must Strictly Be Adhered To
Do not run the centrifuge, if mechanical or electrical assembly groups have been tampered with, by unauthorized personnel. • Do not use accessories such as rotors and buckets, that are not approved by HERMLE Labortechnik GmbH, except commercially available centrifuge tubes, made of glass or plastic. -
Page 11: Space Requirements
(The socket for the power cord must be easy to reach, respectively easy to disconnect). Switch on, by using the mains power switch (I). Open the lid, by using the button LID. • Remove the transport securing device of the motor (see Figure 4). Figure 4 © Hermle Labortechnik GmbH OLEUM_V1.19_eng... -
Page 12: Attention Before First Use
If the motor shaft is conical remove the collet from the rotor by turning it The collet is no longer counter clockwise needed If the motor shaft is cylindrical Let the collet inside the rotor OLEUM_V1.19_eng © Hermle Labortechnik GmbH... -
Page 13: Basic Adjustments
All changed settings must be confirmed by the key, "start" (9). A confirmation screen will appear with the word; "store" in the display box, "rpm/rcf"(A-1) - Only then, the pre-selections are valid, (see Figure 6 Figure 6 © Hermle Labortechnik GmbH OLEUM_V1.19_eng... -
Page 14: Sound Signal Turn On / Off
9 (loud), with the adjustable knob (1), (see Figure8). After the settings have been stored by user (see 1.8.1), the normal program mode can be changed back again by switching off the centrifuge, for a short period. Figure8 OLEUM_V1.19_eng © Hermle Labortechnik GmbH... -
Page 15: Song Selection - End Of Run
"rpm/rcf" (4), the keyboard sound (On) or (Off) can be turned on, with the adjustable knob (1), (see Figure10). After the settings have been stored by user the normal program mode can be changed back again, by switching off the centrifuge, for a short period. Figure10 © Hermle Labortechnik GmbH OLEUM_V1.19_eng... -
Page 16: Retrieving Operating Data (Operated By Skilled Or Service Engineer Only!)
(1). The respective error codes appear in the display, "rpm/rcf" (A- 1). Please refer to Table 2: "Error Messages“, (see APPENDIX P.IV). Switch off the centrifuge, to return to the normal program mode. Figure11 OLEUM_V1.19_eng © Hermle Labortechnik GmbH... -
Page 17: Operation
In principle, the swing out rotor is not allowed to be operated, until all buckets are placed inside the rotor. The bolts of the rotor must be greased with the HERMLE Lubricating grease (Order No. 38-5656). The sample tubes have to be filled evenly, by eye, and set into the buckets. -
Page 18: Loading And Overloading Of Rotors
2.1.3 Loading and Overloading of Rotors The maximum permissible speed and the maximum permissible total filling weight of the permissible rotor are: Total filling Rotor Number Max. Speed Weight 3000 rpm 221.40 V20 750 g OLEUM_V1.19_eng © Hermle Labortechnik GmbH... -
Page 19: Removing The Rotor
"open" (M2) appears. The lid of the centrifuge is now able to be opened. For all number marked text, please refer to Figure 16. Figure16 During the run, you can retrieve the rotor type at any time, by pressing the key, “lid” (7). © Hermle Labortechnik GmbH OLEUM_V1.19_eng... -
Page 20: Lid Lock
It is the same with the pre-selection of the RCF-Value. The setting range is between 20 xg and the maximum permissible centrifugal force of the centrifuge respectively rotor. The max. permissible speed of the OLEUM with rotor 221.40 V20 is 3,000 rpm or 2,213 xg. ATTENTION: Please check the maximum permissible revolutions of your test tubes! (Producer Indication). -
Page 21: Pre-Selection Of Running Time
"decel" (M8). Now the desired brake intensity can be pre-selected, with the adjustable knob (1). The value 9 is equivalent to the shortest possible brake time and the value 0 to longest possible brake time. For all number marked text, please refer to Figure19. © Hermle Labortechnik GmbH OLEUM_V1.19_eng... -
Page 22: Radius Correction
As soon as the radius correction is set, the word "radius" (M9) appears. This text remains visible until the radius correction is set back to 0. For all number marked text, please refer to Figure20. Figure20 OLEUM_V1.19_eng © Hermle Labortechnik GmbH... -
Page 23: Program
(M10) disappears. As soon as the key "store" (12) is no longer displayed, the word "programm xx" (M10) reappears. ( the xx stands for the chosen program place. If all program numbers are occupied, take an old number that is not needed any longer and replace it with the new parameters. © Hermle Labortechnik GmbH OLEUM_V1.19_eng... -
Page 24: Recall Of Stored Programs
"quick" key (8), the centrifuge stops and the running time is indicated, until the lid is opened. The “quick” key (8) doesn´t work during a stored program. For all number marked text, please refer to Figure24. OLEUM_V1.19_eng © Hermle Labortechnik GmbH... -
Page 25: The "Stop" Key
Load the rotor as described in chapter 2.1.2. When inside the display "time" (A-3), the word "error" along with the number "02" appear, (see Figure26) the potential reason for the error can be: The imbalance switch is defective. Figure26 © Hermle Labortechnik GmbH OLEUM_V1.19_eng... -
Page 26: Timer Function
You can interrupt this function by pressing the bottom “stop” (10) or the bottom “lid” (11). During the timer mode, all the other bottoms have no function. For all number marked text, please refer to Figure 27 and 28. Figure 27 Figure 28 OLEUM_V1.19_eng © Hermle Labortechnik GmbH... -
Page 27: Maintenance
Following, lubricate the bolts or sealing, with the recommended HERMLE Rotorgrease - Order No.: 38-5656. Please pay special attention to anodized aluminum parts. Breakage of rotors can be caused by the slightest damages. -
Page 28: Cleaning And Disinfecting Of The Unit
"TÜV Nord CERT GmbH, Certification Body Consumer Products, Essen (Germany)", in accordance with Annex AA of IEC 61010-2-020. The certificates can be downloaded on our webpage, www.hermle-labortechnik.de/download. Aerosol-tight rotors and buckets are marked with the label, "aerosol-tight". ATTENTION: Autoclaving, mechanical stresses and contamination, by chemicals or other aggressive solvents, can impair the aerosol-tightness of the rotors and buckets. -
Page 29: Disinfection Of Aluminum Rotors
If necessary, replace the adapters, tubes and accessories, to avoid further damage. Check the rotor bores regularly, for residue and damage. ATTENTION: Please check the relevant specifications of the tubes centrifuges with the manufacturer! © Hermle Labortechnik GmbH OLEUM_V1.19_eng... -
Page 30: Lifetime Of Rotors, Round And Rectangular Buckets, Accessories
Transparent rotor lids and caps, made of PC or PP, as well as rotors, tube racks and adapters of PP, have a maximum operating time of up to 3 years, from first time use. Conditions for the Operating Time: Proper use, damage-free condition, recommended care. OLEUM_V1.19_eng © Hermle Labortechnik GmbH... -
Page 31: Trouble Shooting
• Turn the box spanner to the right (clockwise), up to the limit. ATTENTION: Only turn to the limit, don´t tighten the nut. • Open the lid of the centrifuge. • Switch the centrifuge on again, to proceed with regular function. Figure29 © Hermle Labortechnik GmbH OLEUM_V1.19_eng... -
Page 32: Description Of The Error Message System
4.2.1, p 26. After opening the centrifuge lid, switch on the device again. Error 14 and the lettering "USEr GuidE" should be eliminated. If this error occurs again, please contact the service. OLEUM_V1.19_eng © Hermle Labortechnik GmbH... -
Page 33: Receipt Of Centrifuges For Repair
In case of a return of a centrifuge, we also ask you to send its power cord. This eliminates the risk of a faulty power cord. If no power cord is attached to the centrifuge, a new one will be delivered and charged. We ask for your understanding. © Hermle Labortechnik GmbH OLEUM_V1.19_eng... -
Page 34: Transport, Storage And Disposal
RoHS II Compliance HERMLE Labortechnik GmbH, Siemensstraße 25, 78564 Wehingen, hereby declares and certifies that all components manufactured are RoHS II compliant, according to the definition and restrictions given by the European Parliament Directive 2011/65/EC. This restricts the use of certain hazardous substances in electrical and electronic equipment. -
Page 35: Appendix
EG - Conformity Declaration ....................II Table 1: Technical Data....................... III Table 2: Error Messages ....................IV Table 3: Radius Correction ....................V Table 4: Abbreviations ......................V Redemption Form / Decontamination Certificate ............VIII © Hermle Labortechnik GmbH OLEUM_V1.19_eng... -
Page 36: Eg - Conformity Declaration
EG Konformitätserklärung EC Conformity Declaration Hermle Labortechnik GmbH - Siemensstr. 25 - D-78564 Wehingen – Germany Das bezeichnete Produkt entspricht den einschlägigen grundlegenden Anforderungen der aufgeführten EG-Richtlinien und Normen. Bei einer nicht mit uns abgestimmten Änderung des Produktes oder einer nicht bestimmungsgemäßen Anwendung verliert diese Erklärung ihre Gültigkeit. - Page 37 APPENDIX Table 1: Technical Data HERMLE Labortechnik GmbH, 78564 Wehingen Manufacturer OLEUM Type Dimensions 56 cm Width 64 cm Depth Height 41 cm 72 kg Weight without rotor Max. Speed 3000 min 4 x 100 ml Max. Volume 2,213 x g Max.
- Page 38 APPENDIX Table 2: Error Messages OLEUM_V1.19_eng © Hermle Labortechnik GmbH...
- Page 39 Insert 717.005 22.0 717.010 17.4 Table 4: Abbreviations Symbol / Abbreviation Unit Description U (U =rpm) [min ] Revolutions per Minute RZB(=rcf) [x g] Relative Centrifugal Force Polypropylene Polycarbonate accel Acceleration decel Deceleration prog Program © Hermle Labortechnik GmbH OLEUM_V1.19_eng...
- Page 40 APPENDIX OLEUM_V1.19_eng © Hermle Labortechnik GmbH...
- Page 41 APPENDIX © Hermle Labortechnik GmbH OLEUM_V1.19_eng...
-
Page 42: Redemption Form / Decontamination Certificate
Have these substances reached the equipment/assembly? ………………………….. Yes No If so, which ones: ________________________________________________________________ Description of the measures for the decontamination of the listed parts: I confirm the proper decontamination: Company/Dept ._____________ Place and Date: ____________________________________ Signature of the authorized person: _________________________________ VIII OLEUM_V1.18_eng © Hermle Labortechnik GmbH... - Page 43 © Hermle Labortechnik GmbH OLEUM_V1.18_eng...
- Page 44 HERMLE Labortechnik GmbH Siemensstraße 25 78564 Wehingen Tel: 0 74 26-96 22-17 Fax: 0 74 26-96 22-49 Email: vertrieb@hermleLT.de Internet: http://www.hermle-labortechnik.de Technical rights reserved ©HERMLE Labortechnik GmbH 2017 OLEUM_V1.18_eng © Hermle Labortechnik GmbH...
