Maxxus Multipress 10.1 Installation Manual page 25

Assembly – Multipress

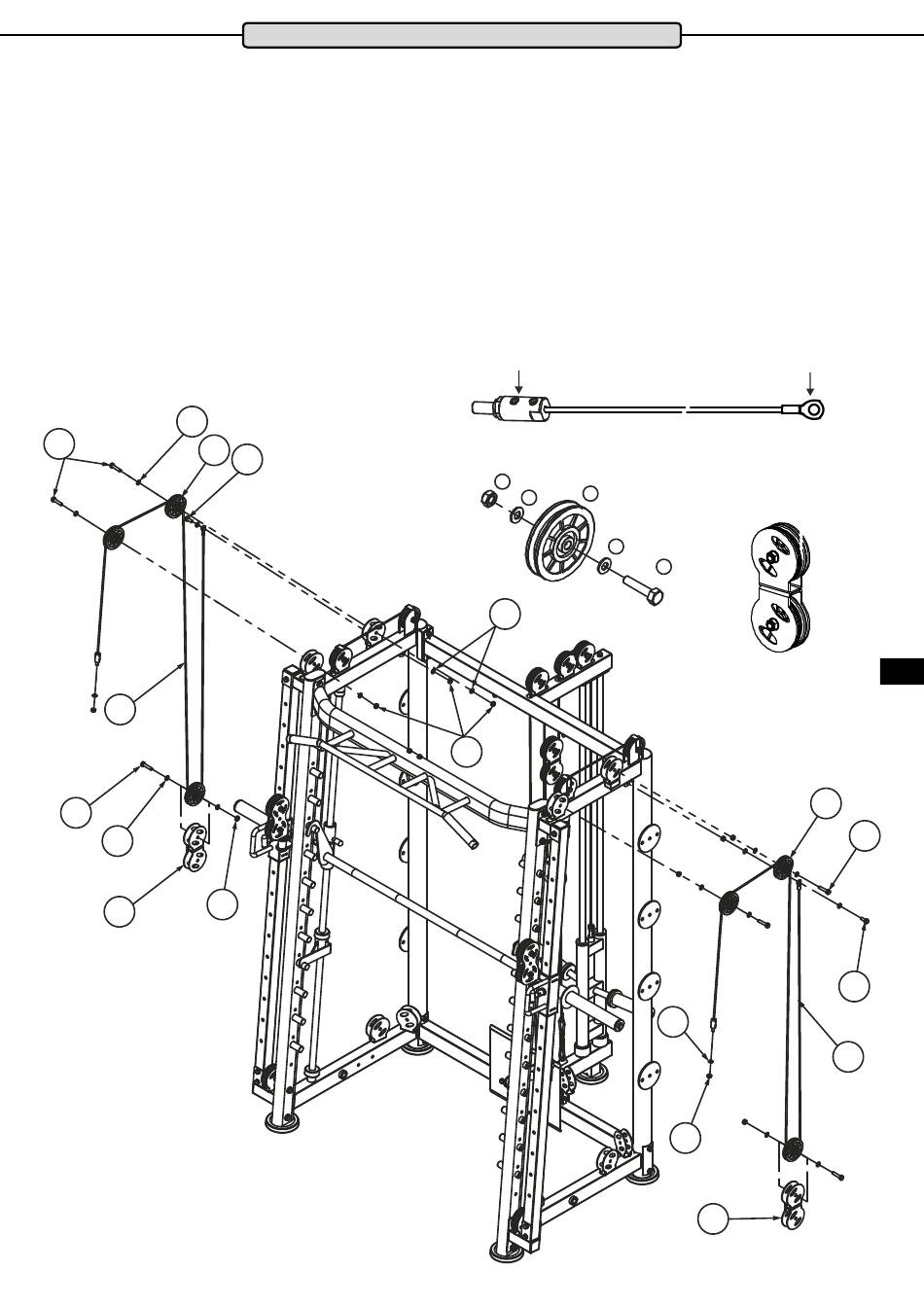

Assembly Step 11
Fix the end of the traction cable (58) (threaded retainer – not the looped end!) using a safety nut M10 (10)
and a washer Ø10 (9) to the left-hand guide frame with double roller (54).
Feed through the looped end of the traction cable (58) upwards through the hole in the connecting piece
between the left-hand guide pipe and the left-hand side frame.
Then feed the traction cable further on over the two rollers attached on the side of the left-hand guide frame.
Then pull the cable downwards and put it in the top roller of double roller (40).
Now bring traction cable (58) back upwards and fix it onto the attachment loop on the left-hand side frame.
To do this use a hexagonal head screw M10x25 (33), two washers Ø10 (9) and a safety nut M10 (10).
Repeat this procedure on the right-hand side.
CAUTION:
Check that the cable on the threaded retainer is firmly screwed in with the three socket head screws.
To be on the safe side, screw the socket head screws up tight again!
Threaded Retainer Attachment Loop
9
41
38 2x Traction Cables (58) – Length 3.580 mm
33
10
38 2x Double Rollers (40)
9
6x
9
41
9
ENG
58
10
38
41
41
9
10
40
33
9
58
10
40
25
