Assembly – Multipress

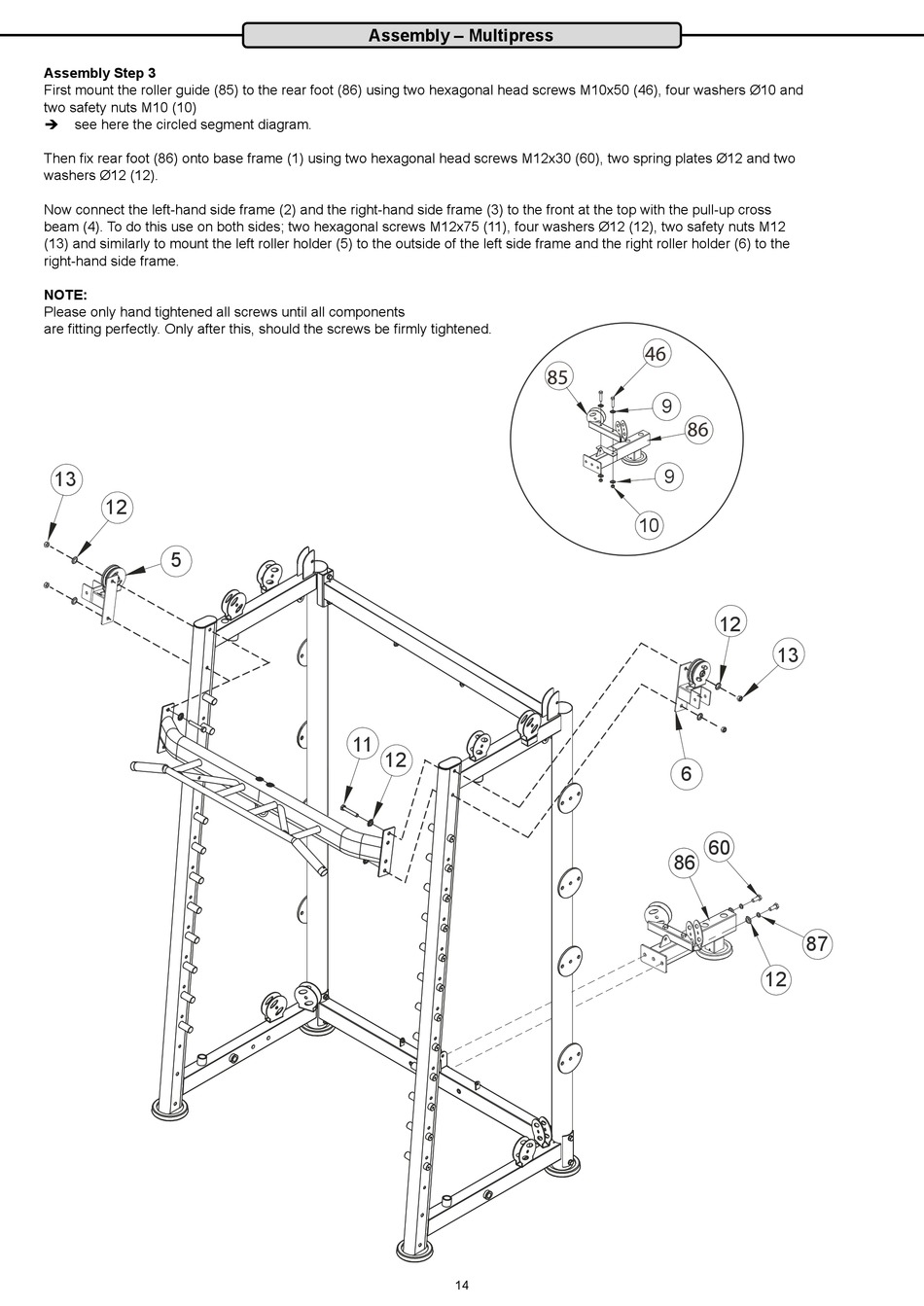

Assembly Step 3
First mount the roller guide (85) to the rear foot (86) using two hexagonal head screws M10x50 (46), four washers Ø10 and
two safety nuts M10 (10)
see here the circled segment diagram.

Then fix rear foot (86) onto base frame (1) using two hexagonal head screws M12x30 (60), two spring plates Ø12 and two
washers Ø12 (12).
Now connect the left-hand side frame (2) and the right-hand side frame (3) to the front at the top with the pull-up cross
beam (4). To do this use on both sides; two hexagonal screws M12x75 (11), four washers Ø12 (12), two safety nuts M12
(13) and similarly to mount the left roller holder (5) to the outside of the left side frame and the right roller holder (6) to the
right-hand side frame.
NOTE:
Please only hand tightened all screws until all components
are fitting perfectly. Only after this, should the screws be firmly tightened.
9
9
13
12
10
5
12
13
11
12
6
60
86
87
12
14
