Assembly – Multipress
Assembly Step 8

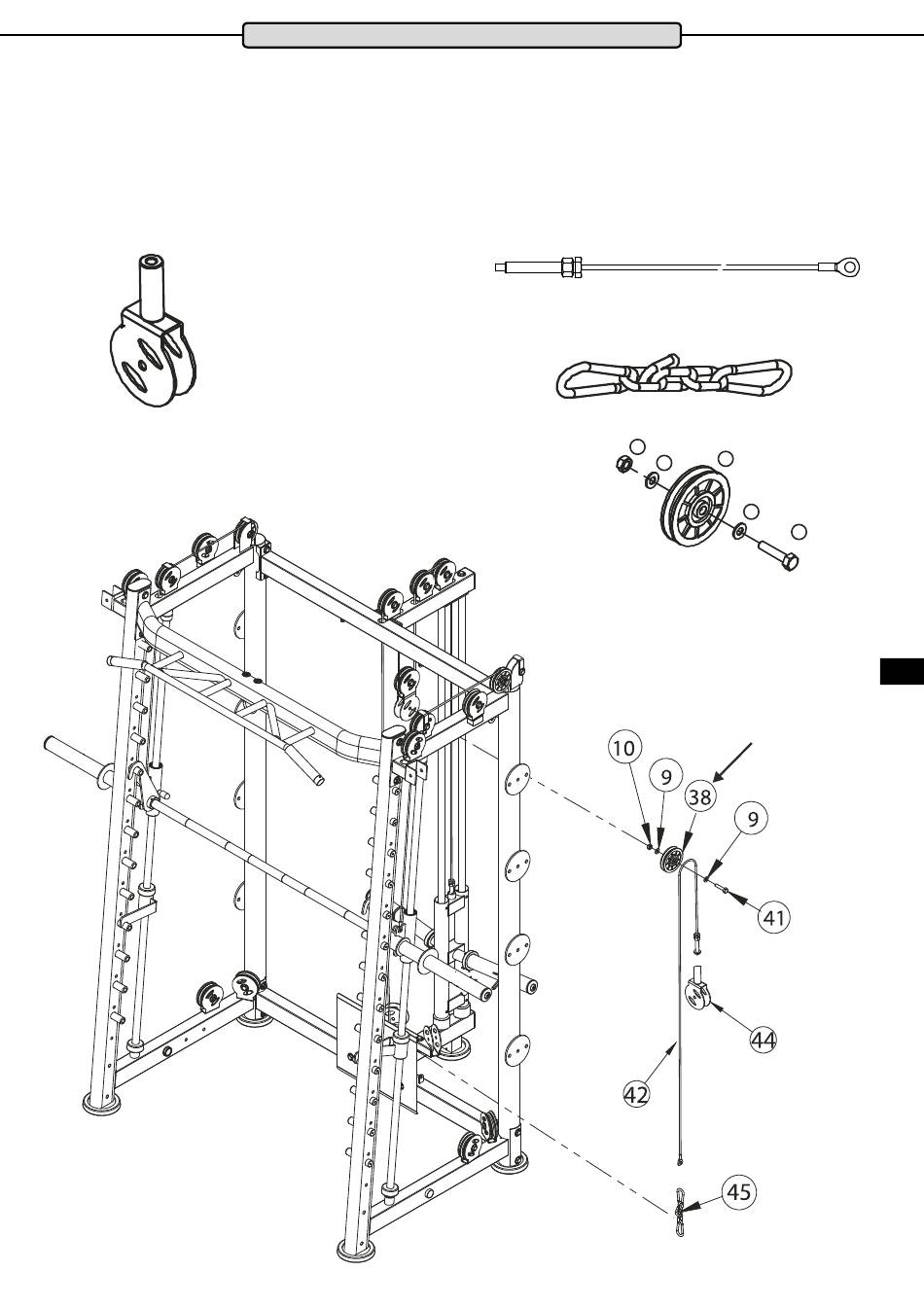

Fix the single roller holder (44) and washer Ø10 (12) onto the thread on the end of the traction cable (42). Then feed the
other looped end of the traction cable (42) over the lower roller of double roller (40) mounted in Step 4. Now hang one of
the carabiner hooks on the chain onto the looped end of the traction cable and the second carabiner on chain (45) to the
loop on the lower T-frame.
Single Roller Holder (44) Traction Cable (42) - Length 1.860 mm
Chain with 2 Carabiner Hooks (45)
10
38
9
1x
9
41
ENG
Lower Roller on
Double Roller (40)
