Maxxus Multipress 10.1 Installation Manual page 23

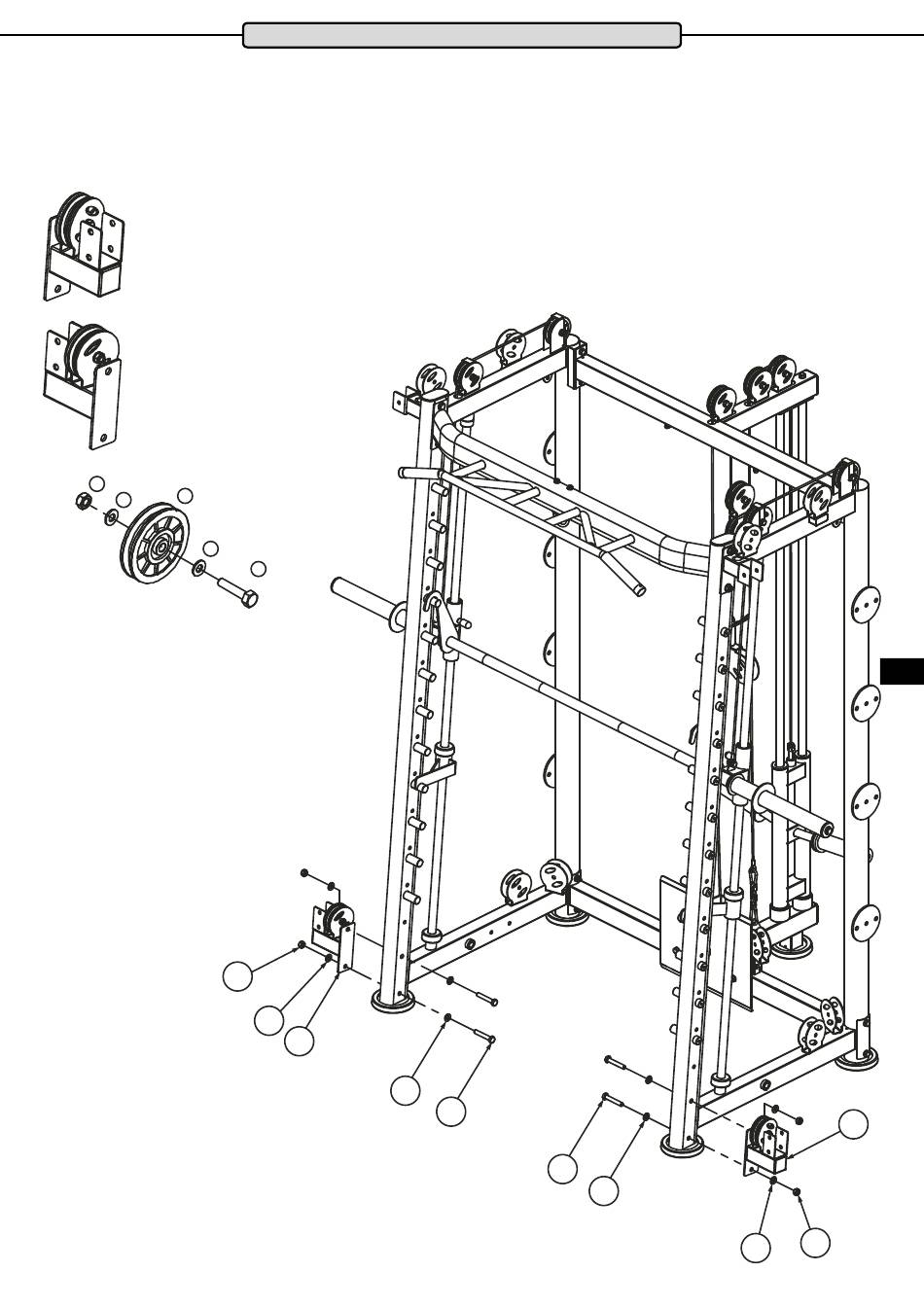

Assembly Step 9
Fix the lower left roller holder (51) with 2 hexagonal head screws M12x70, four washers Ø12 and two safety nuts M12 (13)
to the left-hand side frame.
Repeat this procedure on the right-hand side.
Roller holders have been correctly assembled if the roller on the right-hand roller holder is turning slightly to the right and
the left-hand roller is turning slightly to the left.
Roller Holder, Left (51)
Roller Holder, Right (52)
10
38
9
2x
9
Assembly – Multipress
41
13
12
51
12
50
50
12
23
ENG
52
13
12
