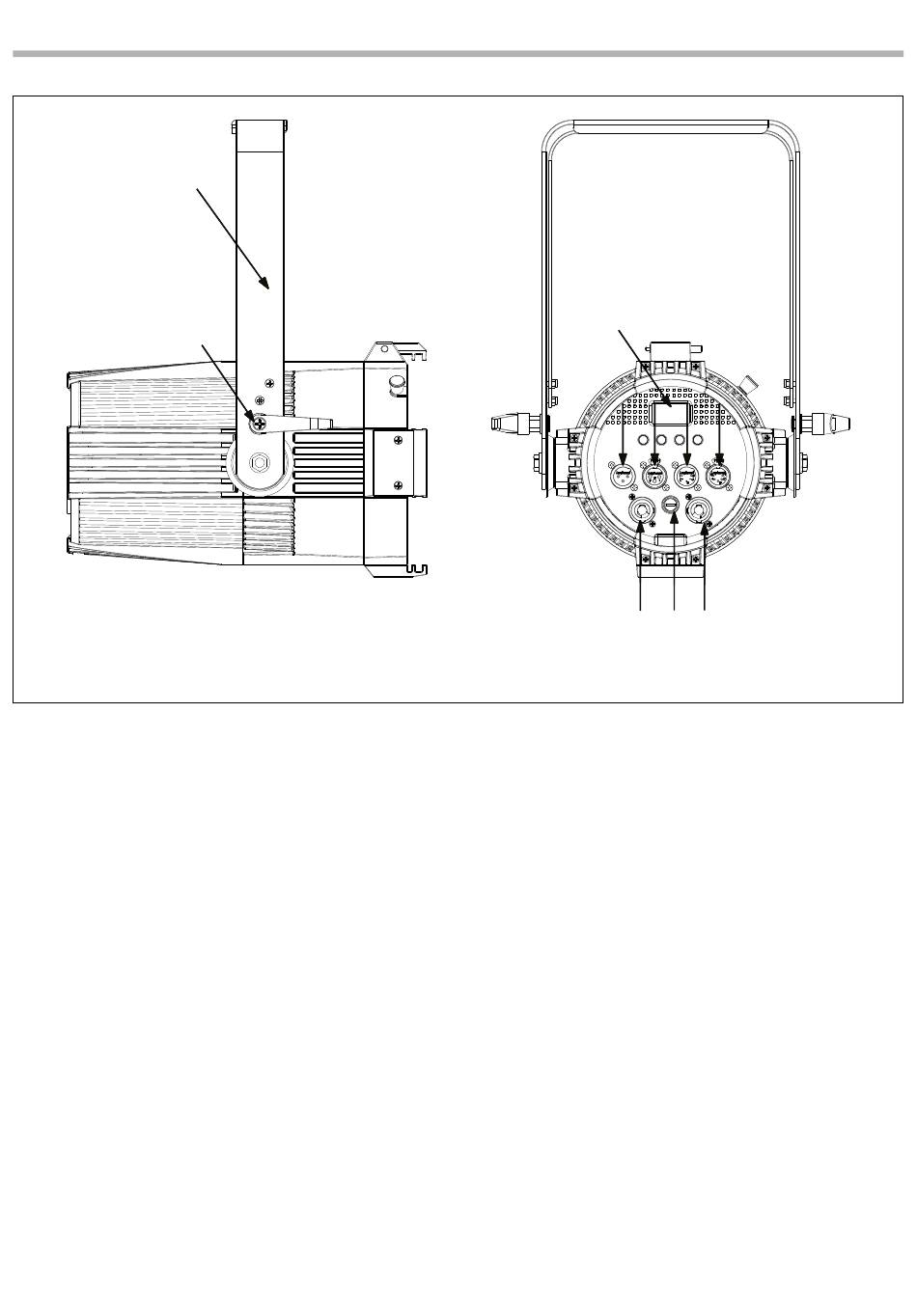

1.2 OPERATING ELEMENTS AND CONNECTIONS

2
1. LOCKING KNOB for mounting bracket.
2. MOUNTING BRACKET.
3. CONTROL PANEL with display and 4 button
used to access the control panel functions
and manage them.
4. DMX IN (3-pole XLR): 1 = ground, 2 = DMX -,
3 = DMX +.
5. DMX OUT (3-pole XLR): 1= ground, 2 = DMX
-, 3 = DMX +.
6. DMX IN (5-pole XLR): 1 = ground, 2 = DMX-, 3
= DMX+, 4 N/C, 5 N/C.
7. DMX OUT (5-pole XLR): 1 = ground, 2 = DMX-,
3 = DMX+, 4 N/C, 5 N/C.
8. POWER IN (PowerCON IN): for connection to a
socket (100-240V~/50-60Hz) via the supplied
mains cable.
9. MAIN FUSE HOLDER: replace a burnt-out fuse
by one of the same type only.
10. POWER OUT (PowerCON OUT): power output
for connection of multiple units in series.
ECLIPSEPARFC
1 1
ECLIPSEPARFC
3
4 5
6 7
8 9 10
5
Fig.2
