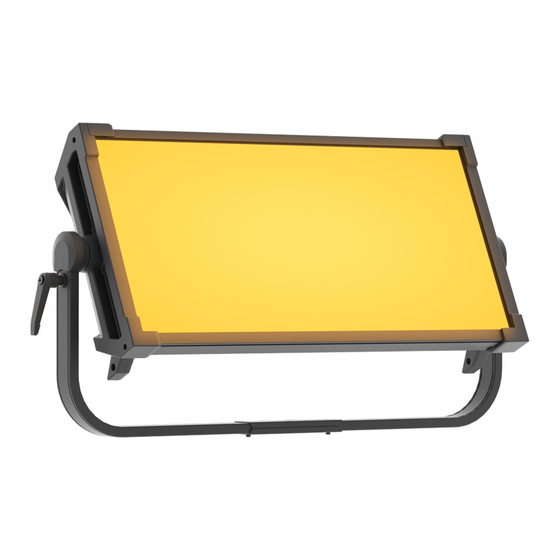

ProLights EclPanel TWC User Manual

740w tunable white and colourful led soft light with pixels and lighting effects
Hide thumbs Also See for EclPanel TWC:
Table of Contents

Advertisement

Quick Links

EclPanel TWC
740W Tunable White and
Colourful LED soft light with pixels
and lighting effects
USER MANUAL
English version
REV.04-11/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EclPanel TWC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProLights EclPanel TWC

Summary of Contents for ProLights EclPanel TWC

  • Page 1 EclPanel TWC 740W Tunable White and Colourful LED soft light with pixels and lighting effects USER MANUAL English version REV.04-11/20...
  • Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and sub- sidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via Appia km 136,200; Itri 04020, Italy.

  • Page 3: Table Of Contents

    DIFFUSION FILTERS (codes EPTWCFILTERHD, EPTWCFILTERMD, EPTWCFILTERLD) . 29 BARN DOOR (code EPTWCBDR2) ................. 30 13 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............31 REPLACING THE FUSE ....................31 VISUAL CHECK OF PRODUCT HOUSING ..............31 TROUBLESHOOTING ..................... 32 PROLIGHTS - Ecl PanelTWC...

  • Page 4: Safety Information

    Temperature of the external surface T 50°C • The surface of the fixture can reach up to 50 °C (122 °F) during operation. Avoid contact with people and materials. PROLIGHTS - Ecl PanelTWC...
  • Page 5 Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center.
  • Page 6 • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD). • 2014/30/EU - Electromagnetic Compatibility (EMC). • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). • 2014/53/EU - Radio Equipment Directive (RED). PROLIGHTS - Ecl PanelTWC...

  • Page 7: Packaging

    • 1x ECLPANELTWC; • 1x 1,5 meters SCHUKO - NEUTRIK POWERCON TRUE1 power cable; • 1x EPTWCFILTERMD: Front medium diffusion filter for ECLPANELTWC; • 1x ECLFRSPG: Spigot for PROLIGHTS Fresnel series; • User manual. OPTIONAL ACCESSORIES • FCLPANEL1U: Flight case for 1 pc of ECLPANELTWC;.

  • Page 8: Technical Drawing

    2 - TECHNICAL DRAWING Weight: 15.3 kg - 33.73 lbs Weight: 17.1kg - 36.70 lbs Dimensions are in mm / in - Fig.1 PROLIGHTS - Ecl PanelTWC...

  • Page 9: Installation

    Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. Steel security cable Clamp Ø11 [Ø0.4] Fig.2 PROLIGHTS - Ecl PanelTWC...

  • Page 10: Connection To The Mains Supply

    • In case you wish to run the product through an external battery, then connect the product to an external battery (24-36V) into the dedicated XLR4p socket; to disconnect power, disconnect the Battery from the socket. PROLIGHTS - Ecl PanelTWC...

  • Page 11: Product Overview

    10. POWER OUT: power output for connection of multiple units in series. 11. BATTERY IN (4-pole XLR): for battery within 24-36 V range, 1 = V -, 2 = N/C, 3 = N/C, 4 = V+. Fig.3 PROLIGHTS - Ecl PanelTWC...

  • Page 12: Dmx Connection

    ... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig.5 - Example 15 DMX channels configuration PROLIGHTS - Ecl PanelTWC...

  • Page 13: Construction Of The Dmx Termination

    5. Ensure that the receiver units are not connected to any other transmitter. Please refer to "Reset the receiver" paragraph. 6. Enable TX LINK to ON to link transmitter to receivers (please note that TX LINK will be avaible only if WDMX mode is set to Transmitter). PROLIGHTS - Ecl PanelTWC...

  • Page 14: Unlinking The Transmitter

    • The wireless icon on the receiver display indicates the received signal strength. WDMX TO DMX (RX) This function enable or disable the retransmission of the wireless DMX signal received throught the DMX port on the receiver side. PROLIGHTS - Ecl PanelTWC...

  • Page 15: Control Panel

    ROTARY KNOB 1 EFFECTS Dimmer (0 255) Effect Speed (1 100) ÷ ÷ Dimmer (0 255) +/- Green (-25/+25) Control temperature ÷ (CCT): 2800K 10000K ÷ Dimmer (0 255) Colors (0 255) Saturation (SAT): 0 ÷ ÷ ÷ PROLIGHTS - Ecl PanelTWC...

  • Page 16: Menu Structure

    (-025÷025) Hue=0 3500K 4000K 4500K 5000K 5600K 6000K 6500K 7000K 7500K 8000K 8500K 9000K 9500K 10000K Manual Color Red (000÷255) Green (000÷255) Blue (000÷255) White (000÷255) 5CH1 5CH2 10CH 15CH 17CH Tour 10Ch 11Ch 15Ch Pixel PROLIGHTS - Ecl PanelTWC...
  • Page 17 4000 Hz 6000Hz 25kHZ 36kHZ Auto Fan Mode Select the product Fan mode. Silent1 Silent2 No-Yes Factory To reset the unit to factory default settings. Reload INFORMA- Fixture TIme 0÷9999 View informations about product operating TION lifetime. PROLIGHTS - Ecl PanelTWC...
  • Page 18 7000K 7500K 8000K 8500K 9000K 9500K 10000K Fixed Color Dimmer Select of the following predefined color combi- nation and its Dimmer value. (000÷255) After enabled this mode, the unit will be auto- matically assigned as Master. PROLIGHTS - Ecl PanelTWC...
  • Page 19 NOTE: If the projector is in Slave mode if the DMX signal is lost, the projector will remain on according to the last received DMX value. If the projector was in STATIC or AUTO mode, if the DMX signal is lost, the projector will return to the previously set STATIC or AUTO. PROLIGHTS - Ecl PanelTWC...

  • Page 20: Rdm Functions

    0x0090 SOFTWARE_VERSION_LABEL 0x00C0 DMX_PERSONALITY 0x00E0 DMX_PERSONALITY_DESCRIPTION 0x00E1 DMX_START_ADDRESS 0x00F0 SENSOR_DEFINITION (LED temperature sensor) 0x0200 CURVE 0x0343 CURVE_DESCRIPTION 0x0344 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_DESCRIPTION 0x0348 DEVICE_HOURS 0x0400 DISPLAY_INVERT 0x0500 IDENTIFY_DEVICE 0x1000 MS Full On Mode 0:HB 1:Studio (Custom) 0x8217 PROLIGHTS - Ecl PanelTWC...

  • Page 21: Dmx Charts

    FADE FINE BLUE STROBE BLUE FINE RED FINE COLOR WHITE GREEN MACRO DIMMER WHITE GREEN FINE FINE FADE BLUE BLUE FINE STROBE WHITE COLOR WHITE FINE MACRO DIMMER COLOR FADE MACRO CTO ON COLORS DIMMER FADE PROLIGHTS - Ecl PanelTWC...
  • Page 22 -25°÷25° 001 ÷ 255 CROSSFADE 0÷100% 000 ÷ 255 STROBE 000 ÷ 030 Closed 031 ÷ 100 Strobe slow to fast Open 101 ÷ 130 Random slow to fast 131 ÷ 200 Open 201 ÷ 255 PROLIGHTS - Ecl PanelTWC...
  • Page 23 RED FINE WHITE WHITE GREEN GREEN STROBE STROBE GREEN FINE GREEN FINE BLUE BLUE BLUE FINE BLUE FINE WHITE WHITE WHITE FINE WHITE FINE STROBE STROBE EFFECTS EFFECTS EFFECTS SPEED EFFECTS SPEED DIMMER FADE DIMMER FADE PROLIGHTS - Ecl PanelTWC...
  • Page 24 061 ÷ 070 Cop Car1 071 ÷ 080 Cop Car2 081 ÷ 090 Cop Car3 091 ÷ 100 Fire 101 ÷ 110 Fireworks 111 ÷ 120 Paparazzi 121 ÷ 130 Television 131 ÷ 140 Party 141 ÷ 150 PROLIGHTS - Ecl PanelTWC...
  • Page 25 GREEN2 BLUE2 BLUE2 BLUE2 BLUE2 BLUE2 WHITE2 WHITE2 WHITE2 WHITE2 WHITE2 RED3 RED3 RED3 GREEN3 GREEN3 GREEN3 BLUE3 BLUE3 BLUE3 WHITE3 WHITE3 WHITE3 RED4 RED4 RED4 GREEN4 GREEN4 GREEN4 BLUE4 BLUE4 BLUE4 WHITE4 WHITE4 WHITE4 RED5 PROLIGHTS - Ecl PanelTWC...
  • Page 26 PIXEL LAYOUT The following drawing describes the pixels distribution and their position on the product light emitting surface. Check the DMX mode selected to identify the related Pixel layout. 2V Pixel 1 Pixel 4V Pixel 2H Pixel PROLIGHTS - Ecl PanelTWC...
  • Page 27 000 - 255 RED2 0÷100% 000 ÷ 255 GREEN2 0÷100% 000 ÷ 255 BLUE2 0÷100% 000 ÷ 255 WHITE2 0÷100% 000 - 255 RED3 0÷100% 000 ÷ 255 GREEN3 0÷100% 000 ÷ 255 BLUE3 0÷100% 000 ÷ 255 PROLIGHTS - Ecl PanelTWC...
  • Page 28 000 ÷ 255 GREEN7 0÷100% 000 ÷ 255 BLUE7 0÷100% 000 ÷ 255 WHITE7 0÷100% 000 ÷ 255 RED8 0÷100% 000 ÷ 255 GREEN6 0÷100% 000 ÷ 255 BLUE6 0÷100% 000 ÷ 255 WHITE6 0÷100% 000 ÷ 255 PROLIGHTS - Ecl PanelTWC...

  • Page 29: Accessories Installation

    The pole operated yoke is available as accessory and it can be mounted from the users, see the follow- ing drawing which shows the process for Yoke replacement. 1. Loosen and remove the marked screws. 2. Remove the bracket. 3. Mount the Pole Operated bracket Yoke and tighten the screws. Fig.8 PROLIGHTS - Ecl PanelTWC...

  • Page 30: Rigid Egg Crates (Codes Eptwcec4C, Eptwcec30, Eptwcec60)

    1. Slide the tabs placed on the top, inward the product. 2. Open the holder plate by turning it upwards (1). 3. Insert the egg crate, inside the track guides (1). Then close the plate (2) and re-position the tabs outwards (3). Fig.9 PROLIGHTS - Ecl PanelTWC...

  • Page 31: Diffusion Filters (Codes Eptwcfilterhd, Eptwcfiltermd, Eptwcfilterld)

    1. Slide the tabs placed on the top, inward the product. 2. Open the holder plate by turning it upwards (1). 3. Insert the diffuser filter, inside the track guides (1). Then close the plate and re-position the tabs outwards. Fig.10 PROLIGHTS - Ecl PanelTWC...

  • Page 32: Barn Door (Code Eptwcbdr2)

    2. Hook the 2 clips (1) on the right edges (2), by rotating the head of the pin towards the body of the product. 3. Adjust the angle of the four leafs to focus the beam. NOTE: To remove the accessory, reverse the procedure. Fig.11 PROLIGHTS - Ecl PanelTWC...

  • Page 33: Maintenance

    WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel.

  • Page 34: Troubleshooting

    • Check if the Fuse is intact and eventually replace it if fault necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in...
  • Page 35 Note...
  • Page 36 Note...
  • Page 37 Note...
  • Page 38 Note...
  • Page 40 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
