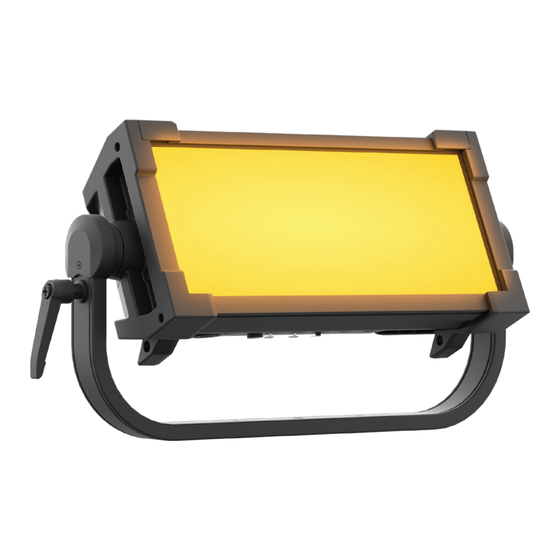

ProLights EclPanel TWCMini2X1 User Manual

115w tunable white and colourful led soft light with pixels and lighting effects
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EclPanel TWCMini2X1
115W Tunable White and colourful LED soft
light with pixels and lighting effects
USER MANUAL
English version
REV.01-01/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EclPanel TWCMini2X1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProLights EclPanel TWCMini2X1

Summary of Contents for ProLights EclPanel TWCMini2X1

  • Page 1 EclPanel TWCMini2X1 115W Tunable White and colourful LED soft light with pixels and lighting effects USER MANUAL English version REV.01-01/22...
  • Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.

  • Page 3: Table Of Contents

    CENTER MOUNT BRACKET (CODE EPTWCBRKM - OPTIONAL) ......... 47 BALL HEAD JOINT (CODE EPTWCBHEAD - OPTIONAL) ..........48 15 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............49 REPLACING THE FUSE ....................49 VISUAL CHECK OF PRODUCT HOUSING ..............49 TROUBLESHOOTING ..................... 50 PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 4: Safety Information

    • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •...
  • Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
  • Page 6 2. This device must accept any interference received, including interference that may cause undesired operation. Other approvals • The product meets the safety requirements of the certification procedures of the market in which it is placed and sold. PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 7: Packaging

    1 - PACKAGING PACKAGE CONTENT • 1x ECLPANELTWCM2X1; • 1x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65); • 1x ECLFRSPG: spigot for PROLIGHTS Fresnel series; • User manual. OPTIONAL ACCESSORIES • WSBBR512G6: blackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX;...

  • Page 8: Technical Drawing

    2 - TECHNICAL DRAWING Weight: 6 kg - 13.22 lbs Weight: 8.63 kg - 19.03 lbs Fig. 01 PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 9: Installation

    Do not use any type of clamp that does not completely encircle the structure when fastened. C6002 RSR0630A/B C6040 RSR0630A/B clamp steel security cable clamp steel security cable C6040 RSR0630A/B clamp steel security cable Ø10.5 mm Ø0.41 in Fig. 02 PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 10: Connection To The Mains Supply

    • In case you wish to run the product through an external PU, then connect the product to an external PU (48V) into the dedicated XLR3p socket; to disconnect power, disconnect the PU from the socket. PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 11: Product Overview

    12. POWER IN: for connection to the Mains 100-240V~/50-60Hz. 13. POWER OUT: power output for connection of multiple units in series. 14. ETHERCON CONNECTORS IN / OUT: for Ethernet protocols signal. 10 11 12 14 14 Fig. 03 PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 12: Dmx Connection

    ... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 05 - Example 15 DMX channels configuration PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 13: Construction Of The Dmx Termination

    This function allow a product receiving an ethernet signal protocol to re-transmit the incoming signal onto a wired DMX line through its onboard XLR-out connector. • An Ethernet protocol (Artnet, sACN or others available) has to be enabled from Ethernet menu PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 14: Operation As A Wireless Transmitter

    4. Select WDMX mode and set it on Receiver (please note that WDMX mode will be available only if WDMX ON/OFF is set to ON). 5. Enable RX RESET to ON to reset the receiver (please note that RX RESET will be available only if WDMX mode is set to Receiver). PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 15: Wdmx To Dmx (Rx)

    • The wireless icon on the receiver display indicates the received signal strength. WDMX TO DMX (RX) This function enable or disable the retransmission of the wireless DMX signal received throught the DMX port on the receiver side. PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 16: Control Panel

    EFFECTS Dimmer (0 255) Effect Speed (1 100) ÷ ÷ Control temperature Dimmer (0 255) +/- Green (-25/+25) ÷ (CCT): 2800K 10000K ÷ Dimmer (0 255) Colors (0 255) Saturation (SAT): 0 ÷ ÷ ÷ PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 17: Menu Structure

    Enable/Disable the transmission of the dmx from the WDMX (TX) transmitter to the receiver via wdmx. On-Off WDMX to Enable/Disable the retransmission of the DMX from the DMX (RX) receiver to the other units connected by cable to the re- ceiver itself. PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 18 Manufacturer calibration to grant performance and color consistency. 600Hz 12 kHz Select PWM frequency. 1200 Hz Frequency 15 kHz 2000 Hz 20 kHz 4000 Hz 25 kHz 6000 Hz 36 kHz 10 kHz 40 kHz PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 19 Monitor, Electroluminescence, Blow Torch, Road Flare, Amber Caution, Green Traffic Light, Yellow Traffic Light, Red Traffic Light, Blue Glow Stick, Green Glow Stick, Red Glow Stick, Yellow Glow Stick, Pink Glow Stick, Violet Glow Stick PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 20 If fixture is booted up without DMX signal plugged in It will stay in Blackout also if a Standalone mode was selected previously, as soon as knobs are touched fixture will activate selected standalone. PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 21: Shortcut

    4. INVERSE SQUARE LAW - Light intensity control is coarser at low levels and finer at high levels. 5. HIGHRES@LOW - Very Fine control at low light intensity and coarser at medium and high levels. LINEAR S-CURVE DMX % DMX % PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 22 SQUARE LAW INVERSE SQUARE LAW DMX % DMX % HIGHRES@LOW DMX % PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 23: Rdm Functions

    CURVE_DESCRIPTION 0x0344 OUTPUT_RESPONSE_TIME 0x0345 OUTPUT_RESPONSE_TIME_DESCRIPTION 0x0346 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_DESCRIPTION 0x0348 DEVICE_HOURS 0x0400 DISPLAY_INVERT 0x0500 IDENTIFY_DEVICE 0x1000 Full On Mode 0:HB 1:Studio (Custom) 0x8217 Factory Reload 0: Standard 1:Film (Custom) 0x8300 Calibration: Off, Adjust, Calibrated 0x822F PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 24: Dmx Charts

    BLUE FINE STROBE WHITE WHITE COLOR WHITE FINE WHITE FINE MACRO DIMMER COLOR COLOR FADE MACRO MACRO CTO ON CTO ON COLORS COLORS DIMMER DIMMER FADE FADE FX SELEC- TION FX SPEED FX FADE CONTROL PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 25 031 ÷ 100 Open 101 ÷ 130 Random slow to fast 131 ÷ 200 Open 201 ÷ 255 COLOR MACRO No Function 000 ÷ 002 003 ÷ 005 Amber Shift on 006 ÷ 255 Color Macro* PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 26 LED FREQUENCY 15KHZ 062 ÷ 063 LED FREQUENCY 20KHZ 064 ÷ 065 RESERVED 066 ÷ 253 RESET ALL CHANNELS CONTROLLED 254 ÷ 255 * Color Macro for 21CH: please refer to next list for values. PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 27 Deep Amber 082 ÷ 083 8000K 248 ÷ 249 Straw 084 ÷ 085 9000K 250 ÷ 251 Light Amber 086 ÷ 087 10000K 252 ÷ 253 Spring Yellow 088 ÷ 089 Full On 254 ÷ 255 PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 28 RED FINE WHITE WHITE GREEN GREEN STROBE STROBE GREEN FINE GREEN FINE BLUE BLUE EFFECTS BLUE FINE BLUE FINE EFFECTS SPEED WHITE WHITE DIMMER FADE WHITE FINE WHITE FINE STROBE STROBE EFFECTS EFFECTS SPEED DIMMER FADE PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 29 211 ÷ 220 Process 221 ÷ 230 Pulsing 231 ÷ 240 Welding 241 ÷ 255 EFFECTS SPEED Speed slow to fast 000 ÷ 255 DIMMER FADE Read from menu 000 ÷ 000 0÷100% 001 ÷ 255 PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 30 GREEN1 0÷100% 000 ÷ 255 BLUE1 0÷100% 000 ÷ 255 WHITE1 0÷100% 000 ÷ 255 RED2 0÷100% 000 ÷ 255 GREEN2 0÷100% 000 ÷ 255 BLUE2 0÷100% 000 ÷ 255 WHITE2 0÷100% 000 ÷ 255 PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 31 PIXEL 2 CROSSFADE FROM CCT TO COLOR FINE PIXEL 2 RED PIXEL 2 RED FINE PIXEL 2 GREEN PIXEL 2 GREEN FINE PIXEL 2 BLUE PIXEL 2 BLUE FINE PIXEL 2 WHITE PIXEL 2 WHITE FINE CONTROL PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 32 146 ÷ 244 Full plus green 245 ÷ 255 HUE FINE 000 ÷ 255 CROSSFADE FROM CCT TO COLOR 0÷100% 000 ÷ 255 CROSSFADE FROM CCT TO COLOR FINE 000 ÷ 255 0÷100% 000 ÷ 255 PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 33 Dark Yellow Green 090 ÷ 091 Just Blue 092 ÷ 093 Sky Blue 094 ÷ 095 Lavender 096 ÷ 097 Light Lavender 098 ÷ 099 Pink Carnation 100 ÷ 101 Medium Pink 102 ÷ 103 PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 34 LED FREQUENCY 10KHZ 058 ÷ 059 LED FREQUENCY 12KHZ 060 ÷ 061 LED FREQUENCY 15KHZ 062 ÷ 063 LED FREQUENCY 20KHZ 064 ÷ 065 RESERVED 066 ÷ 253 RESET ALL CHANNELS CONTROLLED 254 ÷ 255 PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 35 PIXEL 1 HUE FINE 000 ÷ 255 PIXEL 1 CROSSFADE FROM CCT TO COLOR 0÷100% 000 ÷ 255 PIXEL 1 CROSSFADE FROM CCT TO COLOR FINE 000 ÷ 255 PIXEL 1 RED 0÷100% 000 ÷ 255 PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 36 Full plus green 245 ÷ 255 PIXEL 2 HUE FINE 000 ÷ 255 PIXEL 2 CROSSFADE FROM CCT TO COLOR 0÷100% 000 ÷ 255 PIXEL 2 CROSSFADE FROM CCT TO COLOR FINE 000 ÷ 255 PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 37 202 ÷ 203 LED FREQUENCY 10KHZ 204 ÷ 205 LED FREQUENCY 12KHZ 206 ÷ 207 LED FREQUENCY 15KHZ 208 ÷ 209 LED FREQUENCY 20KHZ 210 ÷ 211 RESERVED 212 ÷ 249 Off Mode 250 ÷ 255 PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 38 PIXEL 2 CROSSFADE FROM CCT TO COLOR FINE PIXEL 2 RED PIXEL 2 RED FINE PIXEL 2 GREEN PIXEL 2 GREEN FINE PIXEL 2 BLUE PIXEL 2 BLUE FINE PIXEL 2 WHITE PIXEL 2 WHITE FINE PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 39 PIXEL 1 BLUE 0÷100% 000 ÷ 255 PIXEL 1 BLUE FINE 000 ÷ 255 PIXEL 1 WHITE 0÷100% 000 ÷ 255 PIXEL 1 WHITE FINE 000 ÷ 255 PIXEL 2 DIMMER 0÷100% 000 ÷ 255 PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 40 PIXEL 2 GREEN FINE 000 ÷ 255 PIXEL 2 BLUE 0÷100% 000 ÷ 255 PIXEL 2 BLUE FINE 000 ÷ 255 PIXEL 2 WHITE 0÷100% 000 ÷ 255 PIXEL 2 WHITE FINE 000 ÷ 255 PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 41 -99% --> -1% 021 ÷ 119 Neutral / no effect 120 ÷ 145 1% --> 99% 146 ÷ 244 Full plus green 245 ÷ 255 000 ÷ 255 0.00 ÷ 0.85 X 1 FINE 000 ÷ 255 PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 42 100 ÷ 101 Medium Pink 102 ÷ 103 Light Pink 104 ÷ 105 Sunset Red 106 ÷ 107 Dark Amber 108 ÷ 109 Gold Amber 110 ÷ 111 Medium Amber 112 ÷ 113 Fire 114 ÷ 115 PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 43 LED FREQUENCY 10KHZ 058 ÷ 059 LED FREQUENCY 12KHZ 060 ÷ 061 LED FREQUENCY 15KHZ 062 ÷ 063 LED FREQUENCY 20KHZ 064 ÷ 065 RESERVED 066 ÷ 253 RESET ALL CHANNELS CONTROLLED 254 ÷ 255 PROLIGHTS - Ecl Panel TWCM2X1...
  • Page 44 PIXEL 1 WHITE 000 ÷ 255 0÷100% PIXEL 2 RED 000 ÷ 255 0÷100% PIXEL 2 GREEN 000 ÷ 255 0÷100% PIXEL 2 BLUE 000 ÷ 255 0÷100% PIXEL 2 WHITE 000 ÷ 255 0÷100% PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 45: Accessories Installation

    14 - ACCESSORIES INSTALLATION POLE OPERATED YOKE (CODE ECLPANELM2X1POYO - OPTIONAL) Loosen and remove the four screws (1). Then remove the bracket (2). Mount the Pole Operated bracket Yoke (1) and tighten the screws (2). Fig. 08 PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 46: Egg Crates (Codes Eptwcm2X1Ec30, Eptwcm2X1Ec60, Eptwcm2X1Ec2C - Optional)

    Open the holder plate by turning it upwards (4). Insert the egg crate (1), inside the track guides (2). Then close the plate (3) and re-position the tabs outwards (4 - see image 2). Fig. 09 PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 47: Diffusion Filters (Codes Eptwcm2X1Filtint, Eptwcm2X1Filterhd, Eptwcm2X1Filtermd, Eptwcm2X1Filterld - Optional)

    Open the holder plate by turning it upwards (4). Insert the diffuser filter (1), inside the track guides (2). Then close the plate (3) and re-position the tabs outwards (4 - see image 2). Fig. 10 PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 48: Barn Door (Code Eptwcm2X1Bd - Optional)

    Apply pressure from below (1) and simultaneously rotate the clips towards the body of the product (2). Then adjust the angle of the four leafs to focus the beam. NOTE: To remove the accessory, reverse the procedure. Fig. 11 PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 49: Center Mount Bracket (Code Eptwcbrkm - Optional)

    3. Mount the plastic cover (5) on the center mount bracket with the screw (6). NOTE: the assembly operation must be carried out on both sides. NOTE: To remove the accessory, reverse the procedure. Fig. 12 PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 50: Ball Head Joint (Code Eptwcbhead - Optional)

    2. Screw the ball head joint to the bracket using the marked screw. The anti-rotation pins must coin- cide with the provided holes (2) 3. Mount the marked internal reinforced plate for bracket by tightening the two screws (3). NOTE: To remove the accessory, reverse the procedure. Fig. 13 PROLIGHTS - Ecl Panel TWCM2X1...

  • Page 51: Maintenance

    WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel.

  • Page 52: Troubleshooting

    • Check if the Fuse is intact and eventually replace it if fault. necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in...
  • Page 53 Note...
  • Page 54 Note...
  • Page 56 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
