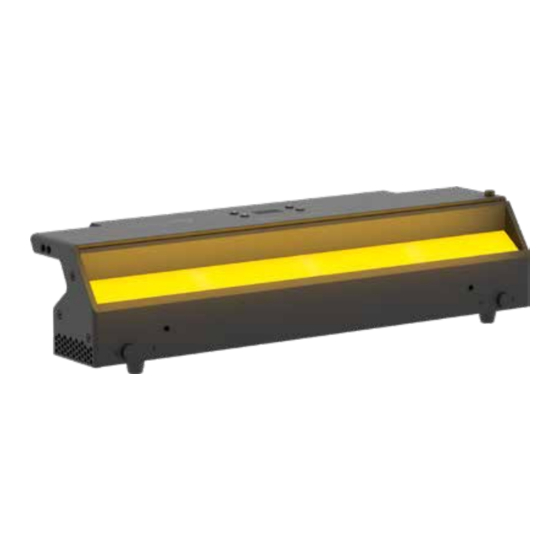

EclCyclorama 050
170W Linear soft CYC and Flood light
with RGB+WarmWhite color mixing
User Manual
English version
REV.02-07/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EclCyclorama 050 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProLights EclCyclorama 050

Summary of Contents for ProLights EclCyclorama 050

  • Page 1 EclCyclorama 050 170W Linear soft CYC and Flood light with RGB+WarmWhite color mixing User Manual English version REV.02-07/20...
  • Page 2 PROLIGHTS services or PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via Appia km 136,200; Itri 04020, Italy.
  • Page 3 HANGING BAR (CODE ECLCYCOHB) 13 - MAINTENANCE 13 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT MAINTENANCE AND CLEANING THE PRODUCT REPLACING THE FUSE REPLACING THE FUSE VISUAL CHECK OF PRODUCT HOUSING VISUAL CHECK OF PRODUCT HOUSING TROUBLESHOOTING TROUBLESHOOTING PROLIGHTS - ECLCyclorama 050...

  • Page 4: Safety Information

    • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •...
  • Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
  • Page 6 • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD). • 2014/30/EU - Electromagnetic Compatibility (EMC). • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). • 2014/53/EU - Radio Equipment Directive (RED). PROLIGHTS - ECLCyclorama 050...

  • Page 7: Package Content

    • RSR: Steel security cable for hanging bodies, inox steel shackle; • C6002: Slim aluminium clamp, 200 kg loading, 48-51 mm tubes, M10 bolt. 2 - TECHNICAL DRAWING Weight: 5 kg - 11.02 lbs Dimensions are in mm / in - Fig.1 PROLIGHTS - ECLCyclorama 050...

  • Page 8: Installation

    Do not use any type of clamp that does not completely encircle the structure when fastened. Quick-Lock Fixing point of omega bracket the safety cable Clamps Safety cable 140 [5.5] 171 [6.7] 44 [1. Fig.2 PROLIGHTS - ECLCyclorama 050...

  • Page 9: Installation Configurations

    The Tilt adjustment has a range of ±8°. For distances from 1 to 1,5m the Tilt should adjusted at +8°, for distances more than 3m the Tilt should be adjusted at -8°. RELATION BETWEEN VERTICAL COVERAGE AND DISTANCE FROM THE CYC WALL LEGEND Distance (m) Bottom Top + Bottom PROLIGHTS - ECLCyclorama 050...

  • Page 10: Connection To The Mains Supply

    • Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - ECLCyclorama 050...

  • Page 11: Product Overview

    9. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (T5 AL 250 V). ). 10. POWER OUT: power output for connection of multiple units in series. 11. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C. Fig.3 PROLIGHTS - ECLCyclorama 050...

  • Page 12: Connection Of The Dmx Line

    ... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig.5 - Example 5 DMX channels configuration PROLIGHTS - ECLCyclorama 050...
  • Page 13 (Protocol, Net, Subnet, Universe, Start Channel and IP Address, Ethernet to DMX No/Yes). • About the IP addresses is recommended to set 002.xxx.xxx.xxx or 010.xxx.xxx.xxx. • The submask net is fixed at 255.0.0.0. PROLIGHTS - ECLCyclorama 050...
  • Page 14 (DMX address=250) (DMX address=48) (DMX address=144) IP address=002.168.002.004 Universe=1 Art-Net/sACN DMX 512 DMX 512 Ethernet Switch Art-Net/sACN DMX 512 DMX 512 (DMX address=250) (DMX address=48) (DMX address=144) IP address=002.168.002.004 Universe=1 Fig.8 - Example configuration PROLIGHTS - ECLCyclorama 050...
  • Page 15 • Press the button on your transmitter. After 10 seconds the product should be paired and show the appropriate status screen. Product is also capable to re-transmit the input wireless signal into the wired XLR OUT connection. For make this please enable the "Wireless to DMX" function inside Wireless menu. PROLIGHTS - ECLCyclorama 050...

  • Page 16: Control Panel

    • UP: Browse upwards through the menu list and increases the numeric value displayed. • DOWN: Browse downwards through the menu list and decreases the numeric value displayed. • ENTER: Used to confirm the current menu or confirm the current function value or option within a menu. PROLIGHTS - ECLCyclorama 050...

  • Page 17: Menu Structure

    Reset the inter- nal wireless dmx signal receiver to pair the fix- ture with a new transmitter Wireless to DMX No-Yes Enable/Disable the signal re- transmission of a wireless dmx input through the XLR output of the product PROLIGHTS - ECLCyclorama 050...
  • Page 18 Factory Reload To reset the unit to factory default settings. INFORMA- Fixture TIme 0÷9999 View informations about product operating TION lifetime. Disp Version V1.0 Drv Version V1.0 15D00228**** To view the ID for the product RDM control. PROLIGHTS - ECLCyclorama 050...
  • Page 19 NOTE: If the projector is in Slave mode if the DMX signal is lost, the projector will remain on according to the last received DMX value. If the projector was in STATIC or AUTO mode, if the DMX signal is lost, the projector will return to the previously set STATIC or AUTO. PROLIGHTS - ECLCyclorama 050...

  • Page 20: Rdm Functions

    Effects Speed (001-100) 0x8210 Master/Slave (0:Master 1:Slave) 0x8211 Full_On_Mode (Full On 0:HB 1:Studio) 0x8217 Manual Color Red(000-255) 0x82C0 Manual Color Green(000-255) 0x82C1 Manual Color Blue(000-255) 0x82C2 Manual Color White(000-255) 0x82C3 Fix Color (1-15:R,G,B,W...) 0x82BE White Preset (1-9:2800K,3200K,3500K...) 0x82BF PROLIGHTS - ECLCyclorama 050...

  • Page 21: Dmx Charts

    SPEED FINE BLUE STROBE BLUE FINE RED FINE COLOR WHITE GREEN MACRO DIMMER GREEN WHITE FINE SPEED FINE BLUE BLUE FINE STROBE WHITE COLOR WHITE FINE MACRO DIMMER COLOR SPEED MACRO CTO ON COLORS DIMMER SPEED PROLIGHTS - ECLCyclorama 050...
  • Page 22 181 ÷ 210 5600K-6000K 211 ÷ 240 6000K-6500K Color Mix 241 ÷ 255 000 ÷ 000 -25°÷25° 001 ÷ 255 CROSSFADE 0÷100% 000 ÷ 255 STROBE No Function 000 ÷ 010 Strobe Slow to Fast 011 ÷ 255 PROLIGHTS - ECLCyclorama 050...
  • Page 23 Preset dimmer speed from display menu 052 ÷ 101 Dimmer speed mode off Dimmer speed mode1 (fast speed) 102 ÷ 152 Dimmer speed mode2 (middle speed) 153 ÷ 203 Dimmer speed mode3 (slow speed) 204 ÷ 255 PROLIGHTS - ECLCyclorama 050...
  • Page 24 GREEN WHITE BLUE BLUE RED FINE WHITE WHITE GREEN STROBE STROBE GREEN FINE COLOR TEMPERATURE BLUE AUTO PROGRAM BLUE FINE AUTO SPEED WHITE DIMMER SPEED WHITE FINE STROBE COLOR TEMPERATURE AUTO PROGRAM AUTO SPEED DIMMER SPEED PROLIGHTS - ECLCyclorama 050...
  • Page 25 Preset dimmer speed from display menu 000 ÷ 051 Dimmer speed mode off 052 ÷ 101 Dimmer speed mode1 (fast speed) 102 ÷ 152 Dimmer speed mode2 (middle speed) 153 ÷ 203 Dimmer speed mode3 (slow speed) 204 ÷ 255 PROLIGHTS - ECLCyclorama 050...

  • Page 26: Accessories Installation

    Yoke replacement. 1. Loosen and remove the marked screws. 2. Mount the Pole Operated Yoke bracket and tighten the screws. NOTE: To remove the accessory, reverse the procedure. Fig.11 PROLIGHTS - ECLCyclorama 050...
  • Page 27 1. Loosen and remove the marked screws. 2. Open the side cover. 3. Gently remove the filter located under the glass. 4. Insert the desired diffuser filter, always in the same position. 5. Mount the side cover and tighten the screws. Fig.12 PROLIGHTS - ECLCyclorama 050...
  • Page 28 NOTE: to remove the upper barndoor press the button provided on the top cover to release the lock provided in the slot on the hardware. 3. Adjust the angle of the leafs to focus the beam. Fig.13 PROLIGHTS - ECLCyclorama 050...
  • Page 29 1. Mount the hanging bar fixing and toghtening the Quick-Lock on the hardware into the holes pro- vided on the low housing of the product. 2. Using the knobs to adjust the angle of the product. Fig.14 PROLIGHTS - ECLCyclorama 050...

  • Page 30: Maintenance

    WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel.

  • Page 31: Troubleshooting

    • Check if the Fuse is intact and eventually replace it if fault necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in...
  • Page 32 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
