Summary of Contents for ProLights EclMiniProfile WDMX

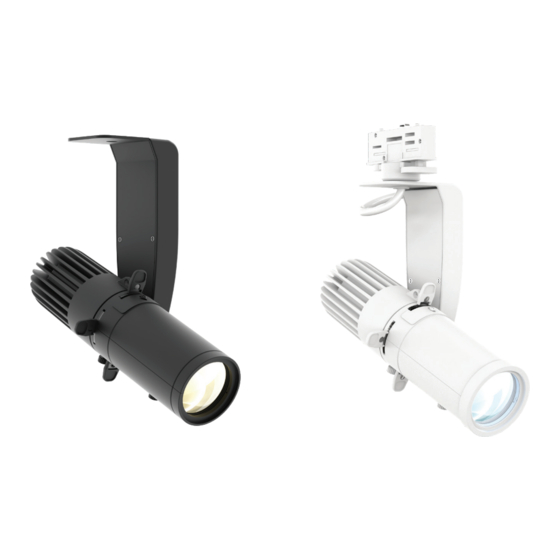

- Page 1 EclMiniProfile WDMX Mini LED profile with WDMX control EclMiniProfile TRWD 28W track mounted mini LED profile with W-DMX control USER MANUAL English version REV.02-04/21...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
-
Page 3: Table Of Contents
OPTIC (CODES MINIECLL19/26/36/50, MINIECLTRL19/26/36/50 - OPTIONAL) ..13 12 - ACCESSORIES INSTALLATION OPTIC (CODES MINIECLL19/26/36/50, MINIECLTRL19/26/36/50 - OPTIONAL) ..14 13 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............15 VISUAL CHECK OF PRODUCT HOUSING ..............15 TROUBLESHOOTING ..................... 16 PROLIGHTS - EclMiniProfile WDMX / TRWD... -
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •... - Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 6 • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD). • 2014/30/EU - Electromagnetic Compatibility (EMC). • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). • 2014/53/EU - Radio Equipment Directive (RED). PROLIGHTS - EclMiniProfile WDMX / TRWD...
-
Page 7: Packaging
• WDBBOX: WDMX battery transmitter, mini 5p DMX and WIFI IN, 2.4 GHz, 0.4 kg. 2 - TECHNICAL DRAWING Ø50 mm [Ø2.0 in] 113 mm 227 mm [4.5 in] [8.9 in] 105 mm [4.1 in] Fig. 01 Weight: 1 kg - 2.20 lbs PROLIGHTS - EclMiniProfile WDMX / TRWD... -
Page 8: Installation
Do not use any type of clamp that does not completely encircle the structure when fastened. RSR0630A/B C6002 Steel security cable clamp 22 mm 22 mm Ø10 mm [0.9 in] [0.9 in] [Ø0.4 in] Track system 27 mm [1.1 in] 50 mm [2.0 in] Fig. 02 PROLIGHTS - EclMiniProfile WDMX / TRWD... -
Page 9: Connection To The Mains Supply
• The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - EclMiniProfile WDMX / TRWD... -
Page 10: Product Overview
3. BLADES for FRAMING SYSTEM; 4. SAFETY EYE to attach safety cable; 5. GOBO HOUSING; 6. FOCUS AND ZOOM KNOB; 7. USER INTERFACE with and buttons display for access to the control panel functions. Fig. 03 PROLIGHTS - EclMiniProfile WDMX / TRWD... -
Page 11: Dmx Connection
4. To reset the unit and link to transmitter press the MENU button until the display shows Wireless Reset, then press the ENTER button. 5. Use the UP/DOWN button until the display shows Yes, and then press the ENTER button. 6. Press the MENU button to go back. PROLIGHTS - EclMiniProfile WDMX / TRWD... -
Page 12: Control Panel
• UP: browse upwards through the menu list and increases the numeric value displayed; • DOWN: browse downwards through the menu list and decreases the numeric value displayed; • ENTER: used to confirm the current menu or confirm the current function value or option within a menu. PROLIGHTS - EclMiniProfile WDMX / TRWD... -
Page 13: Menu Structure
Set the suces- sive units to be slave. Wireless Setting Receive Setting <On> Receive Setting: used to turn on/ off wireless functionality <Off> Receive Reset: used to link fixture to transmitter Receive Reset <No> <Yes> PROLIGHTS - EclMiniProfile WDMX / TRWD... -
Page 14: Dmx Charts
Dimmer speed mode off 052 ÷ 101 Dimmer speed mode 1 (fast speed) 102 ÷ 152 Dimmer speed mode 2 (middle speed) 153 ÷ 203 Dimmer speed mode 3 (slow speed) 204 ÷ 255 PROLIGHTS - EclMiniProfile WDMX / TRWD... -
Page 15: Gobo Insertion
Loosen the marked screw (A) and open the slot (B). Then, extract the gobo holder (C). DETAIL Open the gobo holder (DETAIL) and insert it back into the housing opening (A). Then tighten the screw (B). Fig.06 PROLIGHTS - EclMiniProfile WDMX / TRWD... -
Page 16: Accessories Installation
Loosen the marked knob (1-A) of the unit. Rotate the optic 45°(1-B) and insert it (1-C) so the marked grooves (2) of the optic coincides with the four marked flaps of the unit (3). Fig.07 PROLIGHTS - EclMiniProfile WDMX / TRWD... -
Page 17: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. -
Page 18: Troubleshooting
• Dirty or damaged filters. • Install lens assembly properly. Contact an authorized service center in case of technical problems or not reported in the table can not be resolved by the procedure given in the table. PROLIGHTS - EclMiniProfile WDMX / TRWD... - Page 19 Note...
- Page 20 Note...
- Page 21 Note...
- Page 22 Note...
- Page 24 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
