ProLights EclProfile FW User Manual

High quality full white led ellipsoidal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

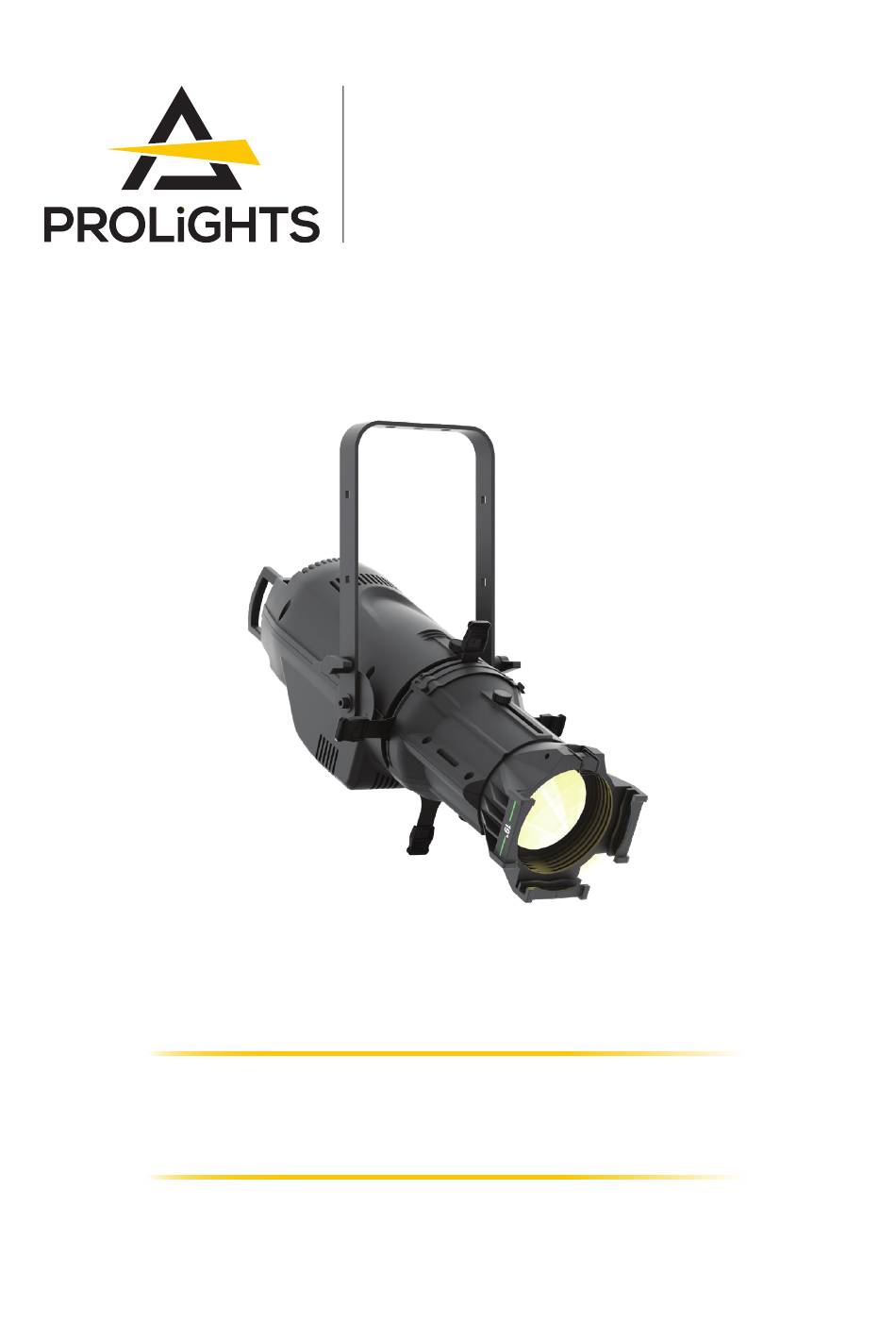

EclProfile FW
High quality Full White LED
ellipsoidal available in Tungsten
and Daylight versions
USER MANUAL
English version
REV.02-12/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EclProfile FW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProLights EclProfile FW

Summary of Contents for ProLights EclProfile FW

  • Page 1 EclProfile FW High quality Full White LED ellipsoidal available in Tungsten and Daylight versions USER MANUAL English version REV.02-12/20...
  • Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via Appia km 136,200; Itri 04020, Italy.

  • Page 3: Table Of Contents

    SOFT FOCUS DIFFUSION (CODE ECLPRSMOOTHF1 - OPTIONAL) ......25 THE POLE OPERATED YOKE (CODE ECLPRPOYO - OPTIONAL) ......... 26 15 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............27 REPLACING THE FUSE ....................27 VISUAL CHECK OF PRODUCT HOUSING ..............27 TROUBLESHOOTING ..................... 28 PROLIGHTS - Ecl FW...

  • Page 4: Safety Information

    • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •...
  • Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
  • Page 6 The products to which this manual refers comply with: • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD). • 2014/30/EU - Electromagnetic Compatibility (EMC). • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). PROLIGHTS - Ecl FW...

  • Page 7: Packaging

    • C6040: aluminum clamp for 28mm spigot, 500kg load, 48-51mm tubes; • ECLLZLLKA: screw lock knob adapter, to adapt and mount ECLLZ lenses on ECLCTPLUS/ECLFS/ ECLFW; • UPBOX2P5: firmware uploader kit, USB IN, 5-pin XLR DMX OUT. PROLIGHTS - Ecl FW...

  • Page 8: Technical Drawing

    Weight: 7.3 kg - 16.09 lbs ECLFW without optic Weight: 10.2 kg - 22.48 lbs ECLFW with ECLPRL05 Weight: 9.2 kg - 20.28 lbs ECLFW with ECLPRL10 Weight: 10.6 kg - 23.37 lbs ECLFW with ECLPRL14 PROLIGHTS - Ecl FW...
  • Page 9 ECLPRL36 9.4 - 20.72 lbs ECLPRL50: 9.1 - 20.06 lbs Weight: 9.1 kg - 21.06 lbs ECLFW with ECLPRL70 Weight: 11.3 kg - 24.91 lbs ECLFW with ECLPRLZ1530 Weight: 11.3 kg - 24.91lbs ECLFW with ECLPRLZ2550 Fig.1 PROLIGHTS - Ecl FW...

  • Page 10: Installation

    Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. Ø13 [Ø0.5] 40 [1.6] 40 [1.6] Fig.2 PROLIGHTS - Ecl FW...

  • Page 11: Connection To The Mains Supply

    • Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - Ecl FW...

  • Page 12: Product Overview

    12. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (TBC 5A); ); 13. POWER IN: for connection to the Mains 100-240V~/50-60Hz; 14. POWER OUT: power output for connection of multiple units in series. 12 13 14 Fig.3 PROLIGHTS - Ecl FW...

  • Page 13: Dmx Connection

    ... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig.5 - Example 4 DMX channels configuration PROLIGHTS - Ecl FW...

  • Page 14: Construction Of The Dmx Termination

    2. Reach the addressing menu, then select the DMX ADDRESS settings. 3. Select the address from 1 to 512 using the navigation arrows/buttons and confirm by pressing ENTER. 4. Press Menu to exit and return to the Home screen. PROLIGHTS - Ecl FW...

  • Page 15: Control Panel

    UP: Browse upwards through the menu list and increases the numeric value displayed. DOWN: Browse downwards through the menu list and decreases the numeric value dis- played. ENTER: Used to confirm the current menu or confirm the current function value or option within a menu. PROLIGHTS - Ecl FW...

  • Page 16: Menu Structure

    Choose a unit to perform as the Master. This unit must be the first unit in line; Set the successive units to be slave. Preset Dimmer To adjust the preset values for the unit. Dimmer Fine Dimmer Speed Strobe PROLIGHTS - Ecl FW...
  • Page 17 On/Off (On) Hold Time Fade Time Dimmer Information Fixture H. To view infromation about the unit. Current H. Source H. Temperature Error Messages RDM UID Software Version Default To reset the unit to factory default settings. PROLIGHTS - Ecl FW...

  • Page 18: Rdm Functions

    Settings MINIMUM_LEVEL 0x0341 MAXIMUM_LEVEL 0x0342 CURVE 0x0343 CURVE_DESCRIPTION 0x0344 OUTPUT_RESPONSE_TIME 0x0345 OUTPUT_RESPONSE_TIME_ DESCRIPTION 0x0346 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_ DESCRIPTION 0x0348 Sensors SENSOR_DEFINITION 0x0200 SENSOR_VALUE 0x0201 RECORD_SENSORS 0x0202 BURN_IN 0x0440 Power/Lamp DEVICE_HOURS 0x0400 Settings LAMP_HOURS 0x0401 LAMP_STRIKES 0x0402 PROLIGHTS - Ecl FW...

  • Page 19: Shortcuts

    This error message indicates that an overheating on the LEDs has occurred and the lamp has been switched OFF by the product protection system. [LED TEMPERATURE SENSOR LED sensor damaged (open or in short circuit). ERROR] PROLIGHTS - Ecl FW...

  • Page 20: Dmx Charts

    FAN MODE OFF 52 ÷ 53 NO SIGNAL HOLD 54 ÷ 55 NO SIGNAL BLACKOUT 56 ÷ 57 NO SIGNAL STAND ALONE 58 ÷ 59 Reserved 60 ÷ 253 FACTORY DEFAULT OF CONTROL FUNCTIONS 254 ÷ 255 PROLIGHTS - Ecl FW...

  • Page 21: Accessories Installation

    14 - ACCESSORIES INSTALLATION OPTIC (CODE ECLPRL - OPTIONAL) 1. Loosen and remove the two marked knobs. 2. Mount the desired optic. 3. Insert and tighten the knobs. Fig.8 PROLIGHTS - Ecl FW...

  • Page 22: Gel Filter Frame (Code Eclprtpg - Optional)

    1. Push the clip, located at the top of the optics body, outwards (1) and lift it (2). 2. Then insert the filter (1) into the marked track (2) and close the clip (3), always applying an outward push. NOTE: To remove the accessory, reverse the procedure. Fig.9 PROLIGHTS - Ecl FW...

  • Page 23: Gobo Holder (Code Eclprgh - Optional)

    GOBO HOLDER (CODE ECLPRGH - OPTIONAL) Gobo dimensions: • Type B. • Ø external= 86 mm. • Ø of image= 64.5 mm. • Thinckness= 1.1 mm. 1.1 [0.04] Put in place the Gobo. Fig.10 PROLIGHTS - Ecl FW...
  • Page 24 1. Loosen the marked screws (1). Then open the slot of the middle part (2). 2. Insert the gobo holder (1) into the slot. The flaps will go into the appropriate size (2). NOTE: To remove the accessory, reverse the procedure. Fig.11 PROLIGHTS - Ecl FW...

  • Page 25: Steel Iris Diaphram (Code Eclpriris - Optional)

    1. Loosen the marked screws (1). Then open the slot of the middle part (2). 2. Insert the steel iris diaphram (1) into the slot. The flaps will go into the appropriate size (2). NOTE: To remove the accessory, reverse the procedure. Fig.12 PROLIGHTS - Ecl FW...

  • Page 26: Soft Edge Filter (Code Eclprsef1 - Optional)

    SOFT EDGE FILTER (CODE ECLPRSEF1 - OPTIONAL) 1. Loosen the marked screws (1). Then open the slot of the middle part (2). 2. Insert the Soft edge filter into the slot (1). NOTE: To remove the accessory, reverse the procedure. Fig.13 PROLIGHTS - Ecl FW...

  • Page 27: Soft Focus Diffusion (Code Eclprsmoothf1 - Optional)

    1. Loosen the marked knob (1) and screw (2). Then rotate (3) the middle part and remove it (4). 2. Insert the soft focus diffusion kit by placing the magnets (1) on the back of the framing system (2) of the middle part (3). NOTE: To remove the accessory, reverse the procedure. Fig.14 PROLIGHTS - Ecl FW...

  • Page 28: The Pole Operated Yoke (Code Eclprpoyo - Optional)

    THE POLE OPERATED YOKE (CODE ECLPRPOYO - OPTIONAL) 1. Loosen and remove the marked screws. 2. Remove the bracket. 3. Mount the Pole Operated Yoke bracket. 4. Tighten the screws. NOTE: To remove the accessory, reverse the procedure. Fig.15 PROLIGHTS - Ecl FW...

  • Page 29: Maintenance

    WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel.

  • Page 30: Troubleshooting

    • Check if the Fuse is intact and eventually replace it if fault necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in...
  • Page 31 Note...
  • Page 32 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
