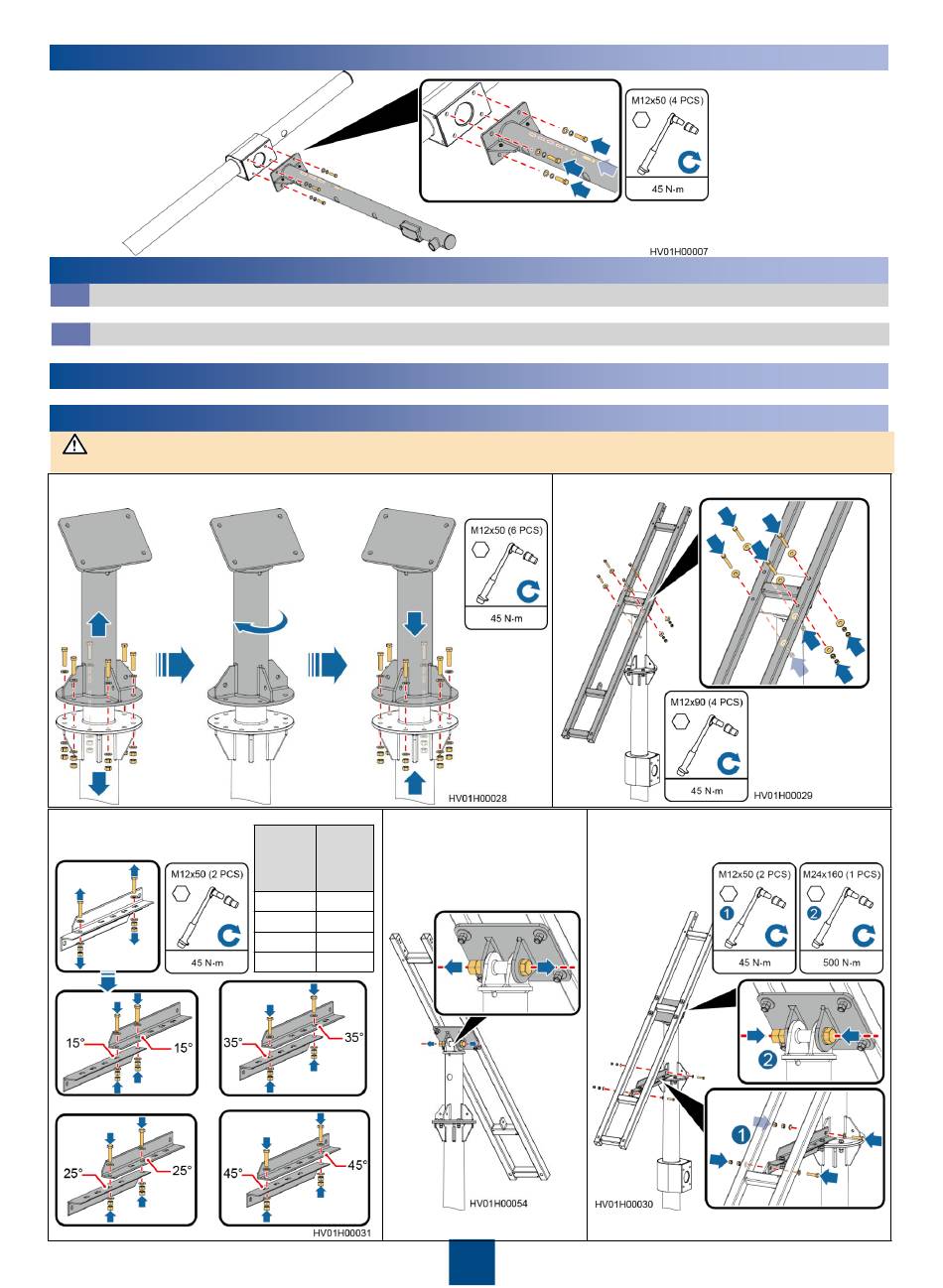

Installing a Cantilever

5

Installing Cameras and Cables

5.1 Installing Cameras
For the camera installation method, see the camera document.
Installing Camera Cables
5.2
For the cable connections at the camera side, see the camera document. Reserve the other ends of cables.
6
(Optional) Installing the PMP Microwave
For the PMP microwave installation method, see the PMP microwave product document.
7

Installing PV Modules and Cables (Solar Hybrid Scenario)

NOTICE
In the northern hemisphere, PV modules face due south. In the southern hemisphere, PV modules face due north.
1. Remove the connective kit, adjust the PV module direction based on the
PV module direction principles, and then reinstall the connective kit.
3. Adjust the tilt angle of the PV
module support based on the
site latitude.
or
or
or
4. Loosen the bolt at the
PV
base of the PV module
Site Module
support.
Latitude Tilt
Angle
0–15° 15°
16–25° 25°
26–30° 35°
31–45° 45°
2. Install the PV module support.
5. Install the angle adjustment bracket and
tighten the bolt at the base of the PV module
support.
