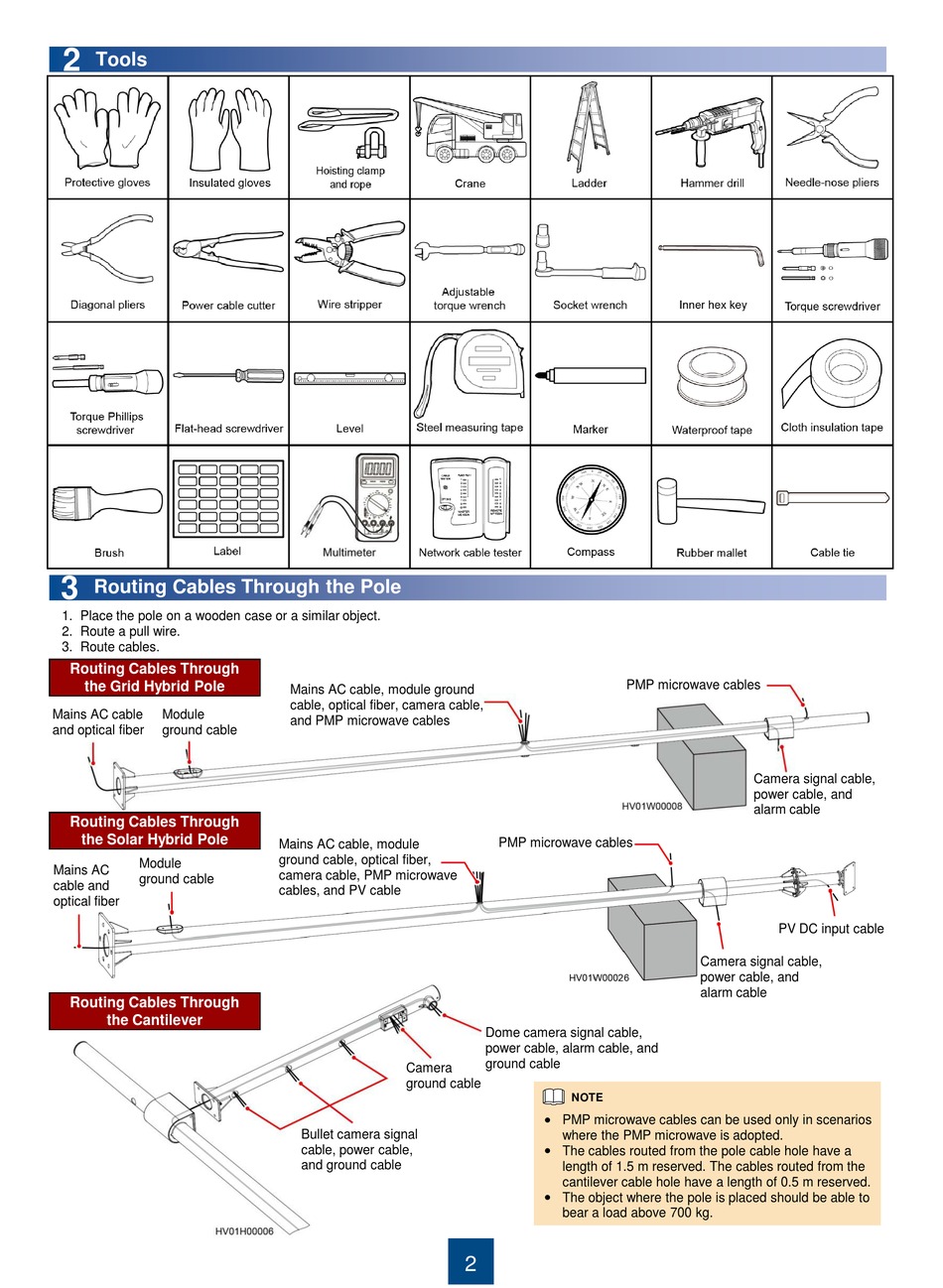

Tools; Routing Cables Through The Pole; Routing Cables Through The Grid Hybrid Pole; Routing Cables Through The Solar Hybrid Pole - Huawei PowerCube 500 PC500-300H1 Quick Manual

2

Tools

3

Routing Cables Through the Pole

1. Place the pole on a wooden case or a similar object.
2. Route a pull wire.
3. Route cables.
Routing Cables Through
the Grid Hybrid Pole
Mains AC cable Module
and optical fiber ground cable
Routing Cables Through
the Solar Hybrid Pole
Module
Mains AC
ground cable
cable and
optical fiber
Routing Cables Through
the Cantilever
Mains AC cable, module ground
cable, optical fiber, camera cable,
and PMP microwave cables
Mains AC cable, module
ground cable, optical fiber,
camera cable, PMP microwave
cables, and PV cable
Camera
ground cable
Bullet camera signal
cable, power cable,
and ground cable
PMP microwave cables
PMP microwave cables
Dome camera signal cable,
power cable, alarm cable, and
ground cable
NOTE
 PMP microwave cables can be used only in scenarios
where the PMP microwave is adopted.
 The cables routed from the pole cable hole have a
length of 1.5 m reserved. The cables routed from the
cantilever cable hole have a length of 0.5 m reserved.
 The object where the pole is placed should be able to
bear a load above 700 kg.
2
Camera signal cable,
power cable, and
alarm cable
PV DC input cable
Camera signal cable,
power cable, and
alarm cable
