Huawei PowerCube 500 PC500-300H1 Quick Manual page 9

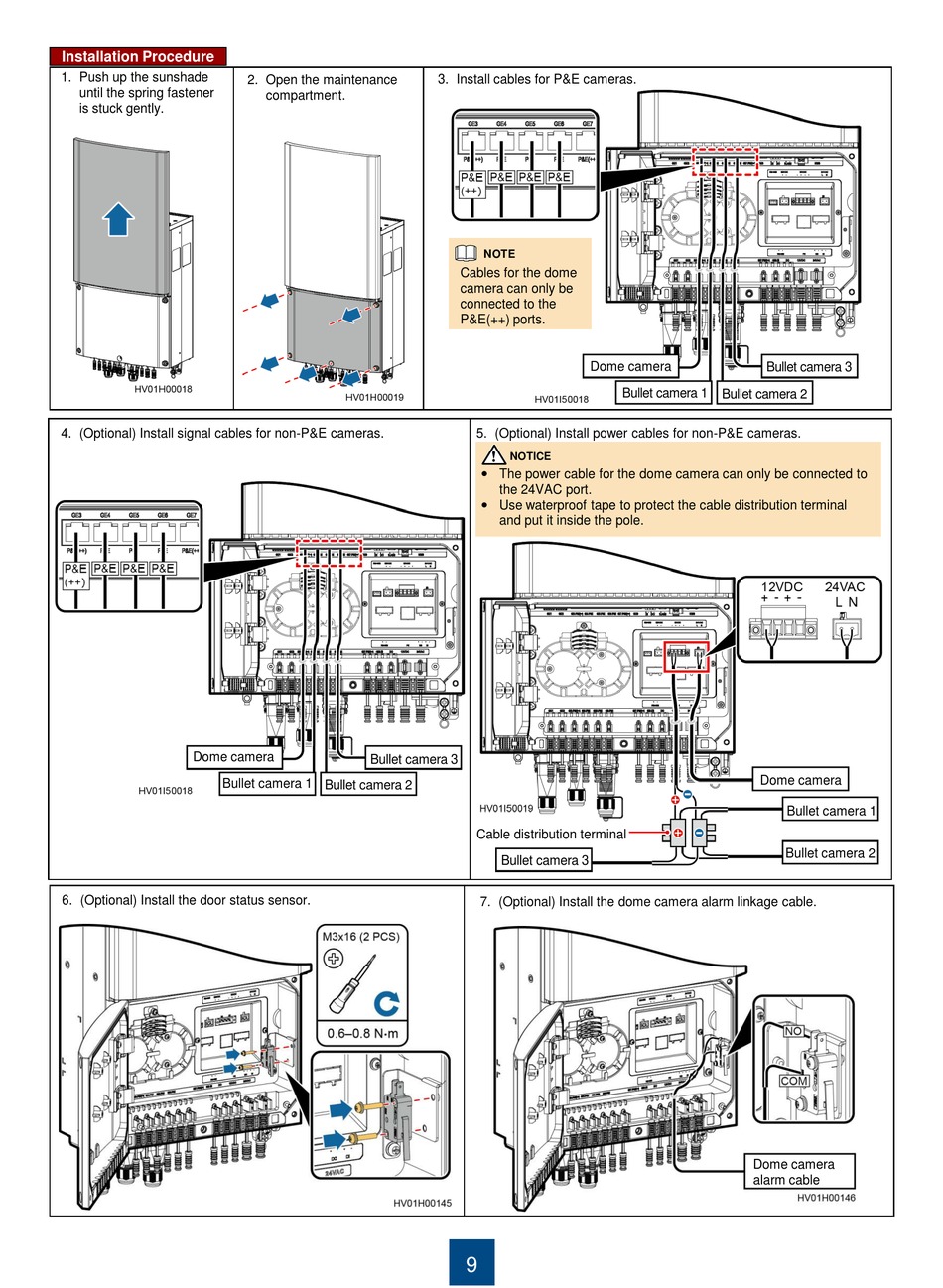

Installation Procedure
1. Push up the sunshade
until the spring fastener
is stuck gently.
4. (Optional) Install signal cables for non-P&E cameras.
Dome camera
Bullet camera 1 Bullet camera 2
6. (Optional) Install the door status sensor.
2. Open the maintenance
compartment.
Bullet camera 3
3. Install cables for P&E cameras.
NOTE
Cables for the dome
camera can only be
connected to the
P&E(++) ports.
Dome camera
5. (Optional) Install power cables for non-P&E cameras.
NOTICE

The power cable for the dome camera can only be connected to
the 24VAC port.
 Use waterproof tape to protect the cable distribution terminal
and put it inside the pole.
Cable distribution terminal
Bullet camera 3
7. (Optional) Install the dome camera alarm linkage cable.
9
Bullet camera 3
Bullet camera 1
Bullet camera 2
Dome camera
Bullet camera 1
Bullet camera 2
Dome camera
alarm cable
