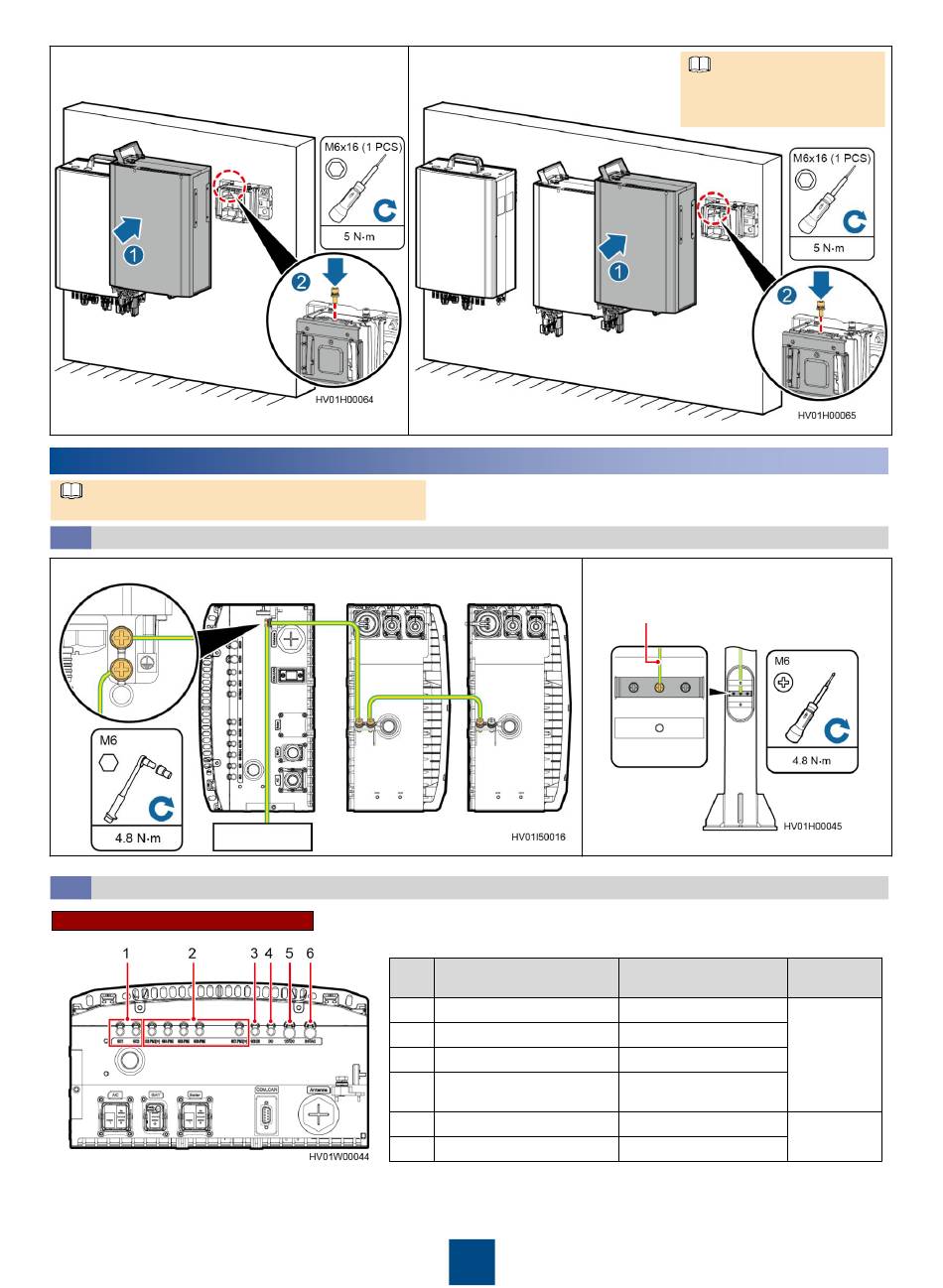

9. Install a lithium battery onto the wall.
10

Installing Cables

NOTE
Route inter-device cables through the pole.

Installing Ground Cables for Modules

10.1
1. Connect ground cables between the function module and lithium batteries.
Function module
Pole ground bar

Installing Cables for the Maintenance Compartment

10.2

Cable Hole Diameter Requirements

10.(Optional) Install the second
lithium battery onto the wall.
Lithium battery Lithium battery
No. Cable Hole Silk Screen
GE1 - GE2
1
GE3/P&E(++) - GE7 /P&E(++) P&E network cable
2
3 GE8/DI
DO
4
12VDC
5
24VAC
6
8
NOTE
If two lithium batteries are
required, install them onto two
adjacent wall hanging kits.
2. Connect the other end of the module
ground cable to the pole ground bar.
Module ground cable
Cable Type
Optical fiber
-
Dome camera alarm
linkage cable
Bullet camera power cable
Dome camera power cable
Cable Outer
Diameter
6.8±0.3 mm
9.3±0.4 mm
