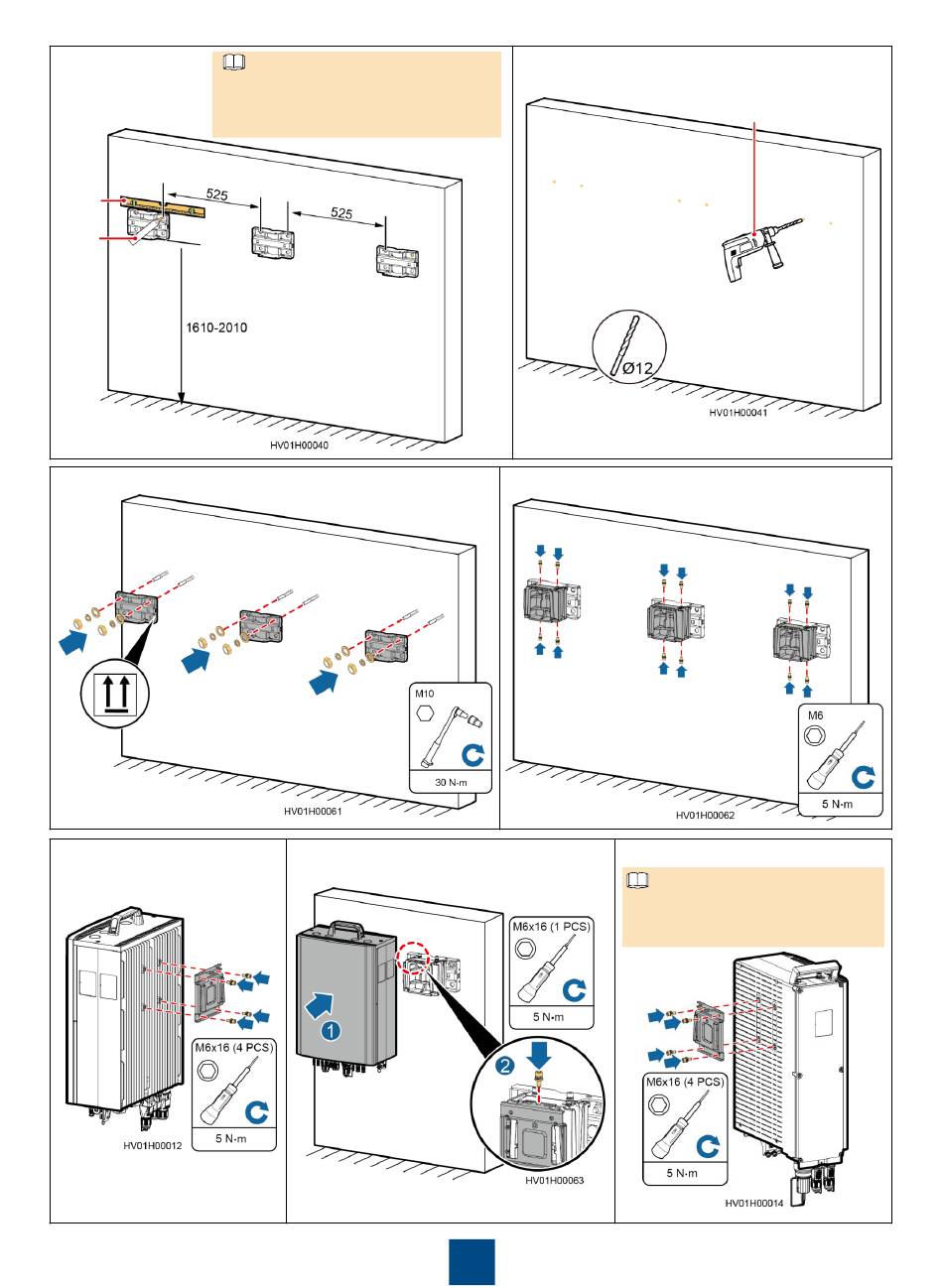

2. Mark mounting holes.
One wall mounting kit A and one wall mounting
kit B are used for each module. Determine the
number of wall mounting kits based on the
number of modules to be installed.
Level
Marker
Unit: mm
4. Install wall mounting kits B.
6. Install the function module
hanging kit.
NOTE
7. Install a function module onto the
wall.
3. Drill holes and install bolts in the holes.
Unit: mm
5. Install wall mounting kits A.
8. Install the lithium battery hanging kit.
The option to install a lithium battery
depends on the scenario. No lithium battery
is required in the grid-only scenario.
7
Hammer drill
NOTE
