Emerson USB Fieldbus Interface User Manual page 22

User's Manual
3. Click Set Default Address.

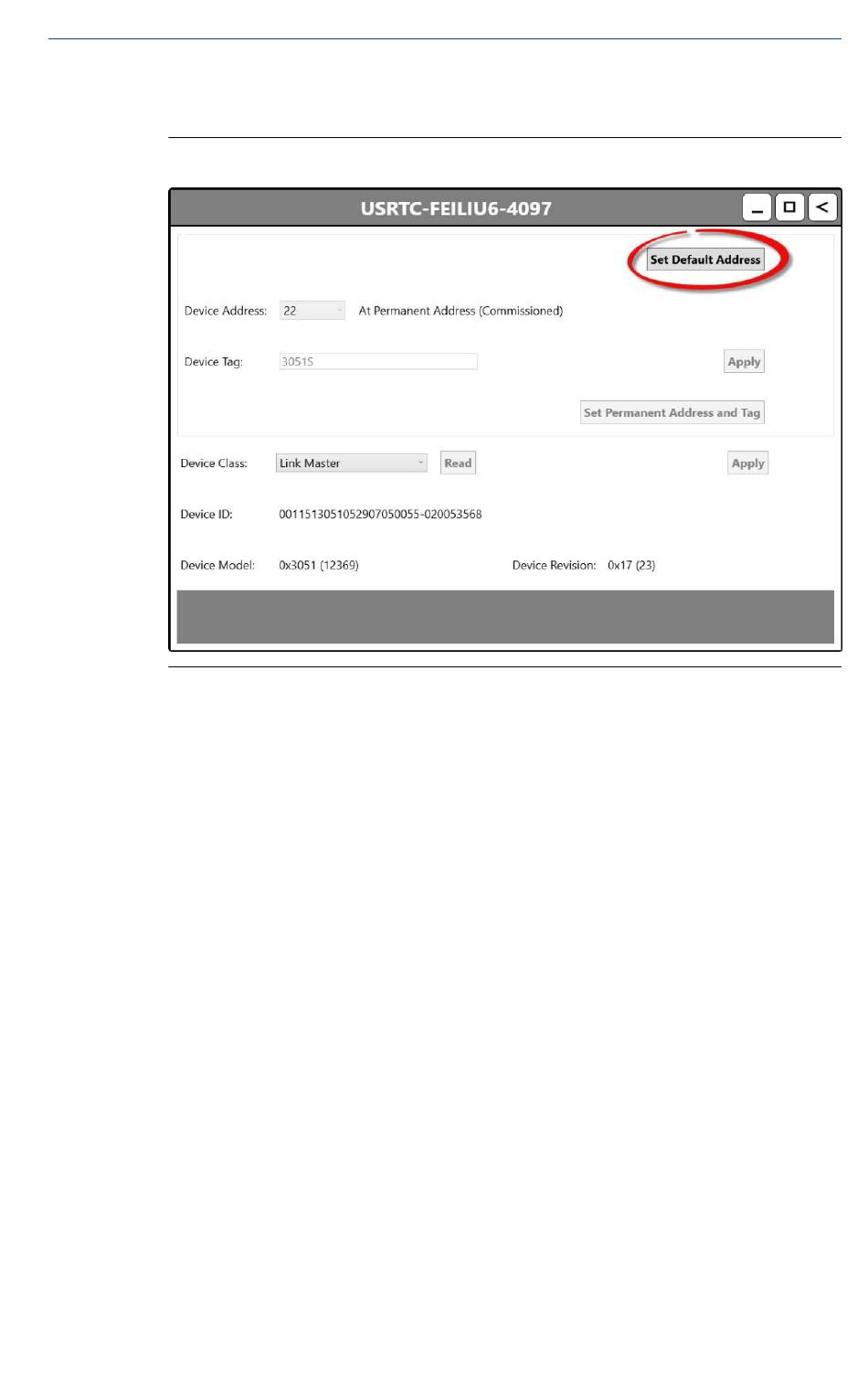

Figure 4-5:
4. If the device was set to a permanent address by a different host, it is not
recommended that you set the device to a Default Address. If you click
the Set Default Address button, you will be asked to confirm if you really
want to set the device to a default address.
• If you select Yes, the device will be set to a default address.
• If you select No, the operation will be canceled.
5. Repeat steps 2 through 4 for each device you want to set to a default
address.
4.6 Change the device class
A connected fieldbus device can be assigned as a Link Master (LM) or as a
basic device. A Link Master contains the LAS functionality that controls
communications on a fieldbus link or segment.
1. Launch the USB Fieldbus Interface Configuration utility.
2. Double-click the Fieldbus device icon you want to configure. A device
screen is displayed.
22
Set Default Address
January 2019
