January 2019
4

USB Fieldbus Interface Configuration utility

Topics covered in this chapter:
• Launch the USB Fieldbus Interface Configuration utility
• Start or stop the USB FF HSE Server manually
• Power fieldbus device with the USB Fieldbus Interface Configuration utility
• Set Fieldbus Device Permanent Address/Tag
• Set Fieldbus Device Default Address
• Change the device class
4.1 Launch the USB Fieldbus Interface Configuration utility
Click Start > All Programs > Emerson Process Management > USB Fieldbus Interface.
Note

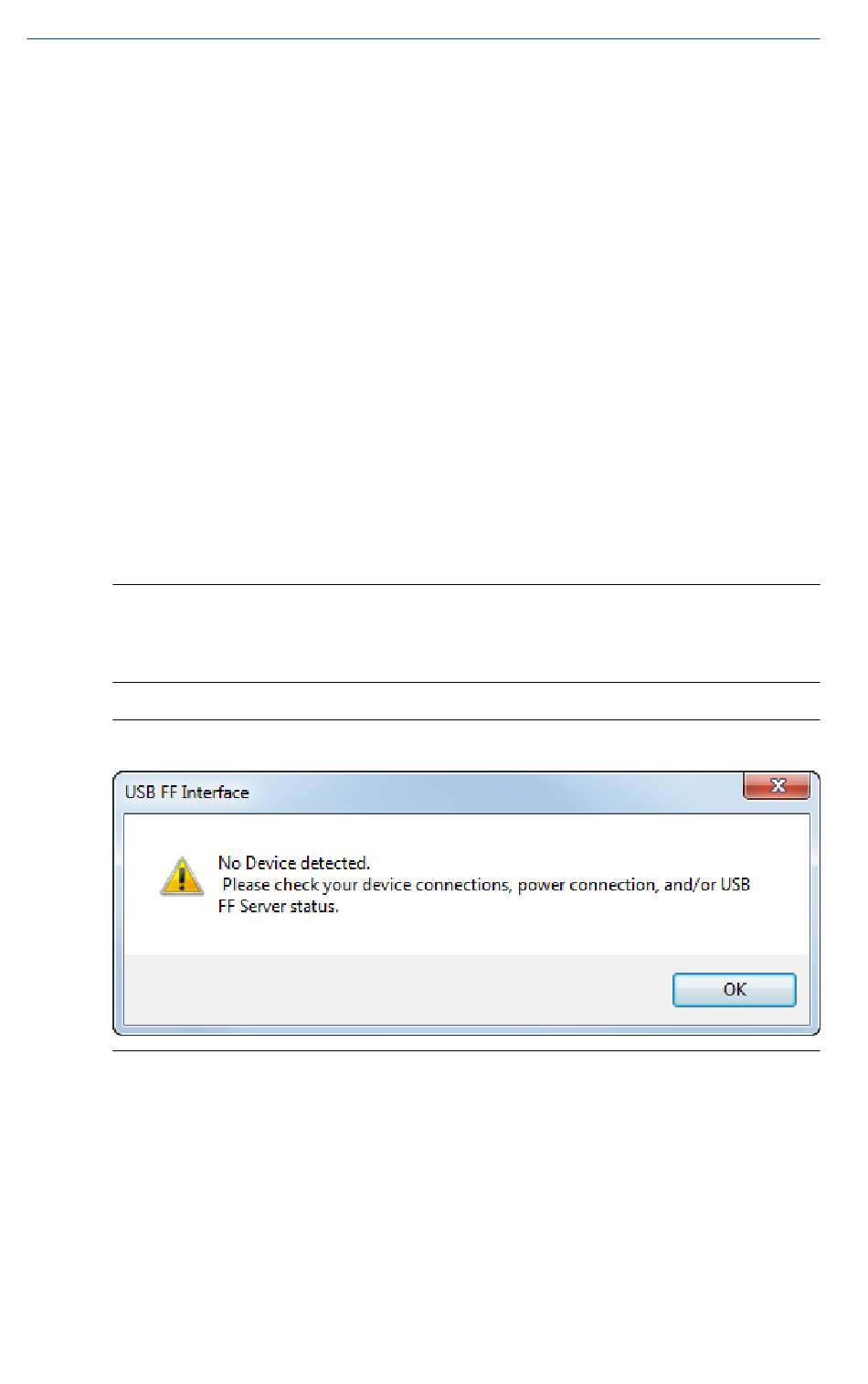

If no fieldbus device is detected after 35 seconds, this dialog is displayed.
Click OK to continue.
Figure 4-1:
A connected fieldbus device or segment has to be powered by an external
power source or by the USB Fieldbus Interface Configuration utility for it to be
detected. For more information, see
4.2 Start or stop the USB FF HSE Server manually
The USB FF HSE Server automatically starts when you launch the USB Fieldbus
Interface Configuration utility. It is typically not necessary to start or stop the
USB FF HSE Server manually.
No device detected dialog
Section 7.2.
User's Manual
17
