GFK-2332AA
July 2018
The Ethernet Interface Module, IC695ETM001, connects a
PACSystems RX3i controller to an Ethernet network. It
enables the RX3i controller to communicate with other
PACSystems equipment and with Series 90 and VersaMax
controllers. The Ethernet Interface provides Transmission
Control Protocol and Internet Protocol (TCP/IP)
communications with other control systems, host
computers running the Host Communications Toolkit or
programmer software, and computers running the TCP/IP
version of the programming software. These
communications use the Service Request Transport
Protocol (SRTP), Modbus TCP, and Ethernet Global Data
(EGD) protocols over a four-layer TCP/IP (Internet) stack.
Features of the RX3i Ethernet Interface include:
▪
Full programming and configuration services. Firmware
upgrades from the RX3i CPU using the Web/HTTP
method if the CPU supports that method, or by using
the WinLoader software utility, which is supplied with
updates to the Ethernet Interface software.
▪
Periodic data exchange using Ethernet Global Data
(EGD).
▪
EGD Commands to read and write controller and EGD
exchange memory over the network.
▪
TCP/IP communication services using SRTP.
▪
Support for SRTP Channels, Modbus/TCP Server, and
Modbus/TCP Client
▪
Built-in Station Manager for on-line supervisory access
to the Ethernet Interface. Dedicated Station Manager
port.
▪
Two auto-sensing 10Base T / 100Base TX RJ45 shielded twisted-pair Ethernet ports for direct connection to
either a 10BaseT or 100BaseTX IEEE 802.3 network without an external transceiver. There is only one
interface to the network (only one Ethernet MAC address and only one IP Address).
▪
Internal network switch with Auto negotiate, Sense, Speed, and crossover detection.
▪
Recessed Ethernet Restart pushbutton permits manually restarting the Ethernet firmware without
power cycling the system.
▪
LEDs: Ethernet OK, LAN OK, Log Empty, individual port activity and speed LEDs.
▪
Configurable stand-alone Redundant IP Addressing, which allows a single IP Address to be assigned to
corresponding Ethernet modules in two different controllers. The Redundant IP Address is configured
in addition to the normal unique IP Address of each Ethernet module. Under application logic control,
only the Ethernet module in the active unit can use the Redundant IP Address.
▪
Time synchronization to SNTP Time Server on Ethernet network (when used with Release 5.00 or later
CPU module).
* Indicates a trademark of General Electric Company and/or its subsidiaries. All other trademarks are the property of their
respective owners.
Copyright © 2013-2018 by General Electric Company. All Rights Reserved
Important Product Information
PACSystems* RX3i
IC695ETM001-JY
Ethernet Interface Module

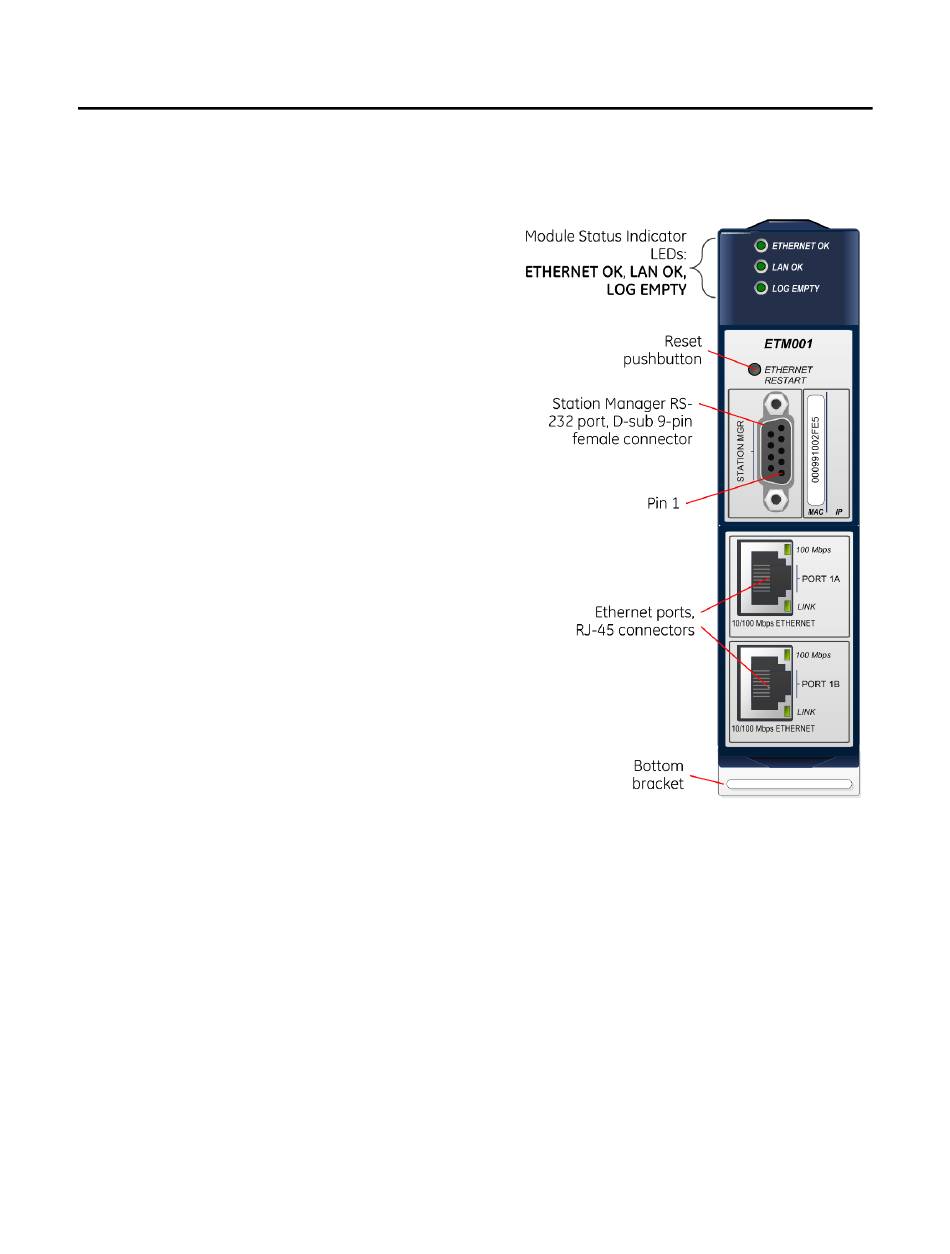

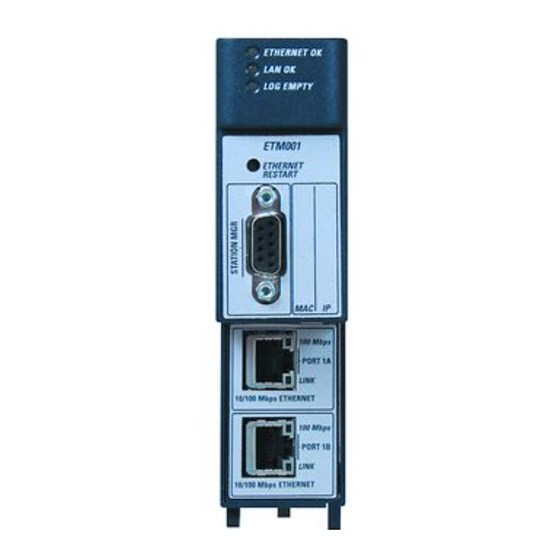

Figure 1: ETM001 Front View
Advertisement
Table of Contents
Related Manuals for Emerson IC695ETM001-JY
Summary of Contents for Emerson IC695ETM001-JY
- Page 1 PACSystems* RX3i IC695ETM001-JY Ethernet Interface Module GFK-2332AA July 2018 Important Product Information The Ethernet Interface Module, IC695ETM001, connects a PACSystems RX3i controller to an Ethernet network. It enables the RX3i controller to communicate with other PACSystems equipment and with Series 90 and VersaMax controllers.
- Page 2 RX3i Ethernet Interface Module IPI IC695ETM001-JY GFK-2332AA July 2018 IC695ETM001 Specifications Ethernet Processor Speed 200 MHz - Station Manager (RS-232) Port: 9-pin female D-connector Connectors - Two 10BaseT / 100BaseTX Ports: 8-pin female shielded RJ45 IEEE 802.2 Logical Link Control Class I IEEE 802.3 CSMA/CD Medium Access Control 10/100 Mbps...
- Page 3 RX3i Ethernet Interface Module IPI IC695ETM001-JY July 2018 GFK-2332AA Indicator Light Emitting Diodes (LEDs) State Indicates ETHERNET OK Fast Blink LAN OK Performing Diagnostics LOG EMPTY ETHERNET OK Slow Blink Waiting for Ethernet configuration LAN OK from CPU LOG EMPTY...
-
Page 4: Hardware Installation
RX3i Ethernet Interface Module IPI IC695ETM001-JY GFK-2332AA July 2018 Hardware Installation Initial Checks Upon receiving your RX3i equipment, carefully inspect all shipping containers for damage. If any part of the system is damaged, notify the carrier immediately. The damaged shipping container should be saved as evidence for inspection by the carrier. -
Page 5: Module Installation
RX3i Ethernet Interface Module IPI IC695ETM001-JY July 2018 GFK-2332AA Module Installation This module is compatible with all RX3i CPU models, except CPE400. The ETM001 must be installed in the main (CPU) rack of an RX3i system, using a Universal Backplane such as IC695CHS007, CHS012 or CHS016. - Page 6 RX3i Ethernet Interface Module IPI IC695ETM001-JY GFK-2332AA July 2018 Important Product Information for this Release A number of firmware issues have been resolved, as documented in Problems Resolved by this Release. Updates The IC695ETM001 is field-upgradeable using the firmware upgrade utility. To upgrade an existing ETM001 to firmware version 6.43, you will need the upgrade kit 44A753032-G21, which can be downloaded from...
- Page 7 RX3i Ethernet Interface Module IPI IC695ETM001-JY July 2018 GFK-2332AA New Features and Enhancements in this Release Subject Description Cyber Security Security enhancements have been made to harden the product against an attacker. Improved ethernet Improvements have been made to the Ethernet configuration to improve Ethernet performance performance.
-
Page 8: Release History
RX3i Ethernet Interface Module IPI IC695ETM001-JY GFK-2332AA July 2018 Release History Release History Firmware Catalog Number Date Comments Version July Firmware version 6.43 provides the following enhancements: IC695ETM001-JY 6.43 • 2018 Security enhancements to harden the product against an attacker. - Page 9 RX3i Ethernet Interface Module IPI IC695ETM001-JY July 2018 GFK-2332AA Release History Firmware Catalog Number Date Comments Version Oct. Firmware version 6.30 fixes the following issues: IC695ETM001-FT 6.30 • 2014 In very rare conditions closing Modbus or SRTP session can result in a 3-5 blink code.
- Page 10 RX3i Ethernet Interface Module IPI IC695ETM001-JY GFK-2332AA July 2018 Release History Firmware Catalog Number Date Comments Version IC695ETM001-AA 2.51 Initial release. 2004...
- Page 11 RX3i Ethernet Interface Module IPI IC695ETM001-JY July 2018 GFK-2332AA Restrictions and Open Issues Restrictions and Open Issues Subject Description EGD length mismatch faults When running heavy EGD production/consumption the fault table may fill with events flooding fault table indicating an EGD length mismatch. The log Event number is 28H and Entry 2 is 001dH.
- Page 12 RX3i Ethernet Interface Module IPI IC695ETM001-JY GFK-2332AA July 2018 Restrictions and Open Issues Subject Description EGD command range failure When an EGD Command attempts a write operation to a bit-mode reference memory can write partial data to range (%I, %Q; %T, %M, %SA, %SB, %SC) where the amount of data to be written...
- Page 13 RX3i Ethernet Interface Module IPI IC695ETM001-JY July 2018 GFK-2332AA Restrictions and Open Issues Subject Description SRTP channel transfers may When SRTP communications are interrupted by a power cycle, the Ethernet interface take up to 20 seconds after may require up to 20 seconds to reestablish TCP connection used for SRTP power cycle communications.
- Page 14 RX3i Ethernet Interface Module IPI IC695ETM001-JY GFK-2332AA July 2018 Ethernet Operational Notes Ethernet Operational Notes Subject Description Remote Station Manager User should change the station manager password to other than the default password. access is disabled until The remote station manager access is disabled until the station manager password is Station manager password is changed to other than the default password.
- Page 15 RX3i Ethernet Interface Module IPI IC695ETM001-JY July 2018 GFK-2332AA Ethernet Operational Notes Subject Description Multiple zero period EGD If more than one EGD produced exchange is configured for a production period of zero, exchanges may not produce the exchanges may not produce similar numbers of samples. Due to the way that similar numbers of samples scheduling occurs when multiple exchanges are scheduled “as fast as possible”, some...
- Page 16 RX3i Ethernet Interface Module IPI IC695ETM001-JY GFK-2332AA July 2018 Ethernet Operational Notes Subject Description SRTP Connections Remain The Ethernet Interface does not terminate all open SRTP connections before changing Open after IP Address its IP Address. Once the local IP Address has changed, any existing open TCP Changed connections are unable to normally terminate.
- Page 17 1-800-433-2682 1-434-978-5100 www.geautomation.com * Indicates a trademark of General Electric Company and/or its subsidiaries. All other trademarks are the property of their respective owners. Copyright © 2013-2018 by General Electric Company. All Rights Reserved...
