6. OPERATION CONTROLS AND FUNCTIONS

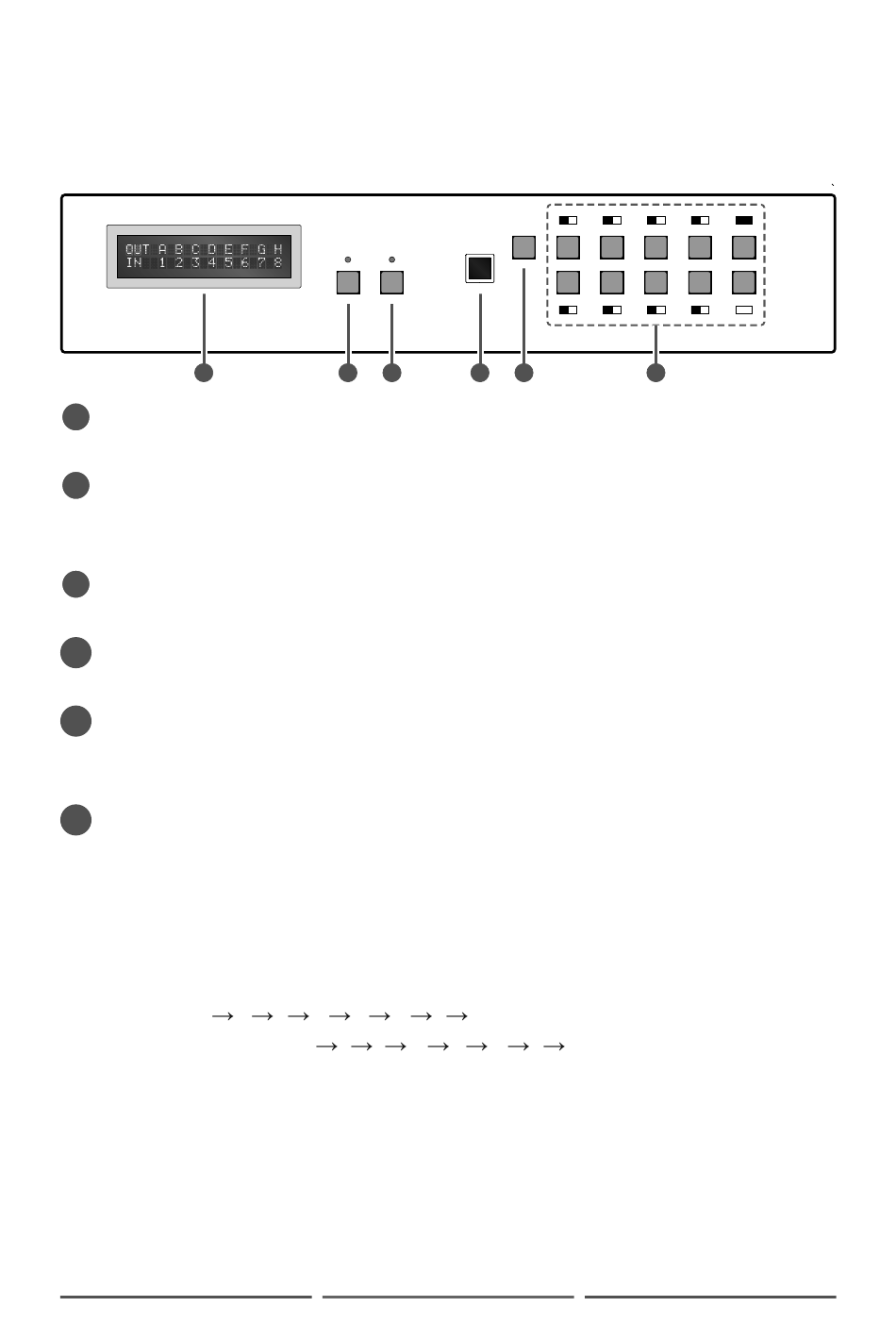

6.1 Front Panel

8X8 HDMI MATRIX over CAT5e/6 CMSI-8H8CVE
1
1
LCM : Displays the setting information of each input and output
setting.
2
POWER: Press this button to power the device on/off. The LED will
illuminate green when the power is on, red when it is in 'Standby'
mode.
3
LOCK: Press this button to lock all the buttons on the panel; press
again to unlock. The LED will illuminate green when locked.
4
IR: IR Receiver window (accepts the remote control signal of this
device only).
5
MENU: Press this button to change the EDID setting from STD
LQWHUQDO  WR 79 H[WHUQDO   SUHVV LW DJDLQ WR FRQÀUP WKH
selection.
6
1~8/A~H and In/Out: Press the Out or In button to select the output
or input mode and then press the required number button to make
the selection accordingly.
)RU H[DPSOH LI RXWSXWV $a' QHHG WR EH VHW WR LQSXW  DQG RXWSXWV
E~H need to be set to input 2, then the following sequence of
button presses need to be performed:
3UHVV 2XW
DQG WKHQ SUHVV 2XW ( ) * + ,Q  0HQX
Note: If the menu button is not pressed the selection will not be
changed.
3
POWER LOCK
2 3
$ % & ' ,Q  0HQX
1 2
MENU A B
E 5 F 6
4 5
3 4
C D OUT
G 7 H 8 IN
6
